50kg Weighing Packing Machine
1 Set
MOQ
90 days
Price
50kg Weighing Packing Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: CE, ISO9001:2015
Model Number: DCS-25FL
High Light:

12 bags / min weighing packing machine

,

50 kg packing machine

,

50kg Weighing And Packing Machine

Payment & Shipping Terms
Packaging Details: Wood Pallet
Delivery Time: 90 Days
Payment Terms: T/T, L/C
Supply Ability: 90 Set Per Month
Specifications
Name: Open Mouth Bagging Machine
Material Type: Powder
Brand: Sanhe
Certification: ISO9001:2015. CE
Drive: Electric
Bag Range: 10-50Kg
Product Description

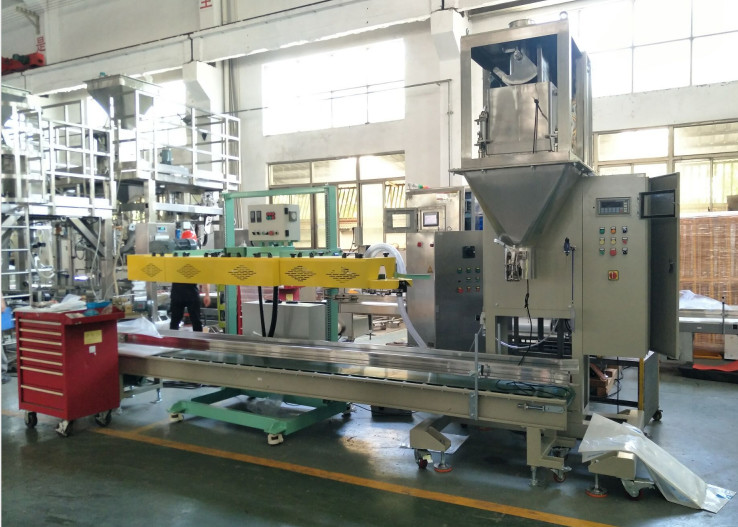

DCS-25 25kg/50kg Chemical Powder Filling Weighing Bagging Packing Machine with CE



Information :
This packaging machine is developed for granule(or powder) material packing in allusion to chemical .feed,grain and seed field etc .The unit is provided with the function of automatic bag fetching ,automatic filling ,automatic bag -conveying and sealing .It can be linked with all kinds of granule or powder material production equipment to work to achieve unattended production of large-sized packing operation .LCD touch screen control .Human-computer interface more favorable ,automatic fault diagnosis,safety shutdown protection .Quick adjustment and easy maintenance .

Description of technical parameters and performance

1. Technical parameters

No. Item Parameter
  Material of premade bag Compound plastics film ,paper bag etc. ( the bag material can be assimilated by our bag feeding machine )
1 Packaging specification 25kg-50kg; (8-12 bags / min)
2 Speed 8-12 bags/min(regarding to different size);
3 Weighing accuracy ± 0.2%;
4 Power supply 380V±10% 50Hz 5.5KW
5 Machine weight 2000 kg
6 Machine size 6000*2000*4900mm
7 Air supply source 0.6MPa, 0.5m3/min




Technological process of the equipment

Automatic lifting materialsAutomatic weighing machine Automatic bag packing unit (pick up bags, welt bags, clamp bags, open bags, blank) Horizontal automatic sealing machine unit (automatic conveying, sealing bags, cut lines) Finished product output Automatic conveying



Configuration description

The control part uses Siemens PLC and Weinview 10-inch color touch screen, which has advantages of simple operation and stability;

The pneumatic part adopts AirTAC magnetic valve, oil-water separator and cylinder;

The vacaum system adopts German FESTO magnetic valve, filter, digital vacuum pressure switch;

On all actuating mechanism there is magnet switch or optoelectronic switch as the detection unit, which is safe and reliable.



Our Service

1.We can provide "one-stop purchasing" or "package program" system solutions and owns professional manufacturing equipment as well as a full range of technical support and after-sale service.

2. OEM, Customized can be all accepted.

3. Contact us any time when you feel free.



FAQ

Q: Can your machine be customized ?

A: Yes, we are a professional manufacturer specilized in palletizing robot, packing machine, conveyor etc. We have a long history since 1998. and we have a strong design & technical team. We can design and manufacture as per your requirements.



Q: How to get an accurate quotation ?

A: Please provide us the detail of the workpiece such as drawing and dimensions.



Q: What's the shipping cost from China to your country ?

A: We can send machine to your port by sea or other term you need. Please kindly tell us your nearest port or address with code. We have reliable shipping agent to ensure the safe, convenient and timely delivery.



Q: Payment terms, MOQ, warranty, Trade Terms

A: Payment terms: 30% down payment against order by T/T, the balance of 70% to be paid on delivery.

Minimum order quantity: 1 set, FOB Shanghai

Warranty: 12 months following delivery. We offer online service 24 hours all day long .

Email / telephone etc. You can contact us any time, if urgently, please call us.



Q: what's the package ?

A: Most goods are packed in wooden box



Q: Do you offer Installation & debugging?

A: Our engineers are available to service machinery overseas to help customers to solve machine problems.



Q: what's policy for guarantee and broken parts ?

A: As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The inspection of the causes of the trouble or the break down of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
