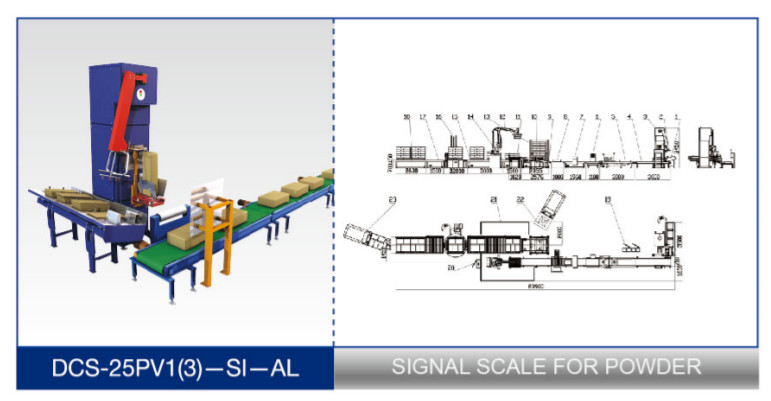

DCS-25PV1(3)-SI-AL Valve Mouth Bag Packing Machine
1 Set
MOQ
Negotiation
Price
DCS-25PV1(3)-SI-AL Valve Mouth Bag Packing Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: CE, ISO9001:2015
Model Number: DCS-25
High Light:

open mouth bagger

,

open mouth bag filling machines

Payment & Shipping Terms
Packaging Details: Wood Pallet
Delivery Time: Negotiable
Payment Terms: T/T
Supply Ability: 90 Sets Per Month
Specifications
Name: Meter Packing Machine
Product: Packing Machine
Brand: Sanhe
Certification: ISO9001:2015. CE
Drive: Electric
Port: Shanghai
Product Description

DCS-25PV1(3)-SI-AL Valve Mouth Bag Packing Machine

feeding type: air flow

speed : 100-300 bags per hour

A. What is 25 kg electronic packing scale:
Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.


B. Working principle of 25 kg electronic packaging scale:
When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;

At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.

The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.


C. Generally, a packing & palletizing line includes: Electric Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor ,Robot, Wrapping Machine ,Finished palletizing conveyor.



D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine

The parameter and function table  :



  DCS-25(GO7N) Net weight type for granules
Scope of application
Suitable materials Granular material or powder material with fine flowability
Suitable packing container Open mouth bag, box, barrel
Feeding type Gravity
Alternative feeding type Vibrator
Technical parameters
Weighing range(Kg) 10-50 kg per bag
Packing speed(bag/H)  100-300 bags
Packing Accuracy Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)


Product Characteristics :
Easy to operate and use
Bag-clamp equipment is advanced, material can be fully filled
Fill material system has material-stop equipment, accuracy high
Control, work parts all use imported parts, stable and reliable with sewing machine
Heat-sealing machine optional


Our Service :
1. We can provide "one-stop purchasing" or "package program" system solutions and owns professional manufacturing equipment as well as a full range of technical support and after-sale service.
2. OEM, Customized can be all accepted.
3. Contact us any time when you feel free.
FAQ :
Q: Can your machine be customized ?
A: Yes, we are a professional manufacturer specilized in palletizing robot, packaging machine, conveyor etc. for more than 20 years and we have a strong design & technical team. We can design and manufacture as per your requirements.
Q: How to get an accurate quotation ?
A: Please provide us the detail of the workpiece such as drawing and dimensions.


Our core products  :
Automatic open mouth bag packing and palletizing line
Automatic valve bag packing and palletizing line
Automatic packing and palletizing line
Open mouth bag packing machine for granular
Open mouth bag packing machine for powder
Valve bag packing machine for granular
Valve bag packing machine for powder
Big bag packing machine
Big bag unloading station
Liquid filling machine
Various conveyors

It sales well in China and overseas market.
Sanhe--A wellknown packing and palletizing manufacture from China



Please Send us The Details for Quatation :

The material (to be packed) parameter :
A. Product name ?
B. Diameter of the material (um or mm) ?
C. Form of product ( Granule or powder ) ?
D. Bulk density(ton/m3) ?
E. Flow ability ?
F. Moisture absorption ?
G. Causticity ?
H. Toxicity ?
I. Degree of ex-proof protection for the packing machine parts ?


Packing Parameter:
A. Packing speed (bag/hour) ?
B. Packaging weight per bag ( KG/bag ) ?
C. Weighing accuracy ?


Bag/Bucket Parameter:
A. Open mouth bag or valve type bag?
B. What material of the Bag/Bucket, PP bag, PE bag, Nylon Bag, Kraft paper, Paper-plastic composite (inner is plastic, outer is paper) ?
C. Bag size: width*height ( mm ) ?
D. Coiled bags or separate bags ?


After get the above parameter, we can quote you a very good price

DCS-25PV1(3)-SI-AL Valve Mouth Bag Packing Machine 0
DCS-25PV1(3)-SI-AL Valve Mouth Bag Packing Machine 1


DCS-25PV1(3)-SI-AL Valve Mouth Bag Packing Machine 2







DCS-25GO7N)

net weight type for granules

DCS-25(PO2G)

Gross weight type for granules

DCS-25(PO2N)

Net weight type for powder

DCS-25(PO4G)

Vertical screw type



Scope of application



Suitable materials



Granular material or powder material with fine flowability



powder material or Fine powder



powder material



Easy to bridging or raised dust of ultrafine powder



Suitable packing container



Open mouth bag, box, barrel



Open mouth bag, box, barrel



Open mouth bag, box, barrel



Open mouth bag, box, barrel



Feeding type



Gravity



horizontal screw



horizontal screw



Vertical screw



Alternative feeding type



Vibrator



Vibrator, belt



Vibrator, belt

×



Technical parameters



Weighing range

1-100 10-50 10-50 1-50



Packing speed(bag/H)

300-800 100-200 100-500 100-180



Packing Accuracy



Generally (+/- )0.2% ( Note: special materials shall depend on the industrial standard )



Control function



Automatic tare



Automatic quick and slow feeding



Automatic free fall compensation



Automatic minus deviation

Automatic over weight alarms

diagnosis failure



Manual/Automatic mode conversation



Communication port



Regulatory function

Manual adjusting the height of bag

Important auxiliary function

Arch break function of hopper

×

Vibration at the bottom of the bag

Powder protection

Inflatable seal

Negative pressure dusting(not contain duster)

Valve for leak-proof

×



Safety protection

Electrostatic grounding

ionic wind remove static

when lose power

Emergency stop

Ex-proof

Original mode

DCS-25 DCS-25FW DCS-25F DCS-25FL

Mark: “○”is standard function;“▲”is choose function ;“×”is not has function



Main specialty

  • Scope of application: Granular material or powder material of Packing bags(boxes and pails)
  • Can be made into twin-type pakcer(except DCS-25(GO7N)和DCS-25(PO4G))
  • Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.
