A. What is the 25 kg packing machine ?
It is used to transport materials (normally powder or granule ) from the silo to the packaging container, and it also has the function of weighing,
B. Discription of 25 Kg packing machine ?
Electronic quantitative packaging scale is a combination of electronic scale and automatic control. It weighs when feeding until it is close to the preset packaging value. The computer quantitative packing scale is composed of several independent weighing units with the structure of feeding and discharging. The computer quantitative packing scale is suitable for the quantitative packing of 25kg-50kg, and the electronic quantitative packing scale is widely used.
C. Application of 25Kg packing machine:
Powder quantitative packaging machine is suitable for the quantitative packaging of powder, powder and powder materials in chemical, food, agricultural and sideline products industries, such as milk powder, starch, pesticide, veterinary medicine, premix, additive, condiment, feed, enzyme preparation, etc.; powder quantitative packaging machine is a combination of machine and instrument, controlled by single chip microcomputer, with automatic quantitative, automatic filling and automatic adjustment of measurement error Etc.
D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine
Main specialty :
Valve bag packing for Powder and ultrafine powder.
Can be twin-type packer
Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.
|
|

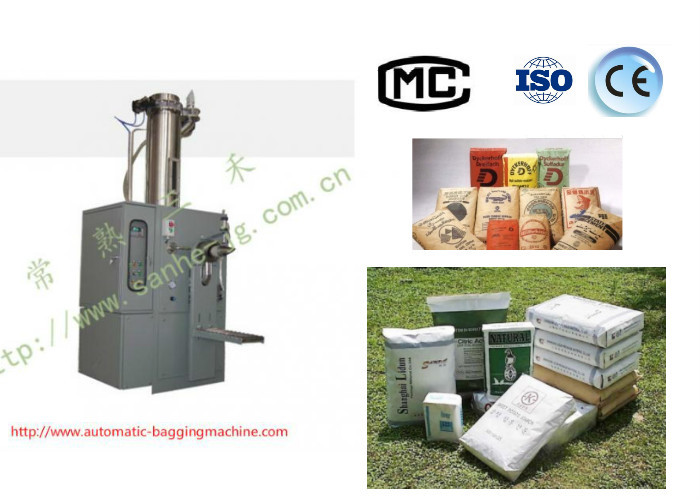

DCS-25PV1(3)(airflow type)
|
|
Scope of application
|
|
|
Suitable materials
|
Powder and thin granule
|
|
Suitable packing container
|
Airflow
|
|
Technical parameters
|
|
|
Weighing range(Kg)
|
25 |
|
Packing speed(bag/H)
|
30-200
|
|
Packing Accuracy
|
Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)
|
The follwing questions will help you find what you want :
1. The material you want to pack and its size(μm, mm), bulk density(kg/m3).
2. Packing weight (kg/bag), Packing Speed (bags/hour).
3. Detailed description of production Requirement.
Product Characteristics of our Bagging Machine :
Easy to operate and use
Bag-clamp equipment is advanced, material can be fully filled
Fill material system has material-stop equipment, accuracy high
Control, work parts all use imported parts, stable and reliable with sewing machine
Heat-sealing machine optional
Our Service :
1. We can provide "one-stop purchasing" or "package program" system solutions and owns professional manufacturing equipment as well as a full range of technical support and after-sale service.
2. OEM, Customized can be all accepted.
3. Contact us any time when you feel free.
FAQ :
Q: Can your machine be customized ?
A: Yes, we are a professional manufacturer specilized in palletizing robot, packaging machine, conveyor etc. for more than 20 years and we have a strong design & technical team. We can design and manufacture as per your requirements.
Q: Do you offer Installation & debugging?
A: Our engineers are available to service machinery overseas to help customers to solve machine problems. Relevant fees need to be paid
Q: What’s policy for guarantee and broken parts ?
A: As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
The parameter and function table of the valve bag packer:
|
DCS-25PV1(1) (exhausting type) |
DCS-25PV1(2) (screw type) |
DCS-25PV1(3) (airflow type) |
DCS-25PV1(5) (horizontal impeller) |
DCS-25PV1(6) (vertiacl impeller) |
|
|
Scope of application |
|||||
|
Suitable materials |
Powder and ultrafine powder of good Air affinity |
Powder and thin granule |
Powder and thin granule |
Powder and ultrafine powder |
Powder and ultrafine powder |
|
Suitable packing container |
Upper and lower spiral air supply | single screw | air flow | Horizontal impeller | Vertical impeller |
|
Technical parameters |
|||||
|
Weighing range(Kg) |
10-50 | 10-50 | 10-50 | 10-50 | 10-50 |
|
Packing speed(bag/H) |
30-180 | 30-120 | 30-200 | 30-250 | 30-250 |
|
Packing Accuracy |
Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard) |
||||
|
Control function |
|||||
|
Automatic tare |
○ | ○ | ○ | ○ | ○ |
|
Automatic quick and slow feeding |
○ | ○ | ○ | ○ | ○ |
|
Automatic free fall compensation |
○ | ○ | ○ | ○ | ○ |
|
Automatic minus deviation |
▲ | ▲ | ▲ | × | × |
|
Automatic over weight alarms |
○ | ○ | ○ | ○ | ○ |
|
Automatic self diagnosis failure |
○ | ○ | ○ | ○ | ○ |
|
Manual/Automatic mode conversation |
○ | ○ | ○ | ○ | ○ |
|
Communication port |
▲ | ▲ | ▲ | ▲ | ▲ |
|
|
|||||
|
Manual adjusting the height of bag |
○ | ○ | ○ | ○ | ○ |
|
Suit for open and valve bag function |
▲ | ▲ | ▲ | ▲ | ▲ |
|
Important auxiliary function |
|||||
|
Blow bag function in advance |
○ | ▲ | ○ | ○ | ○ |
|
Arch break function of hopper |
○ | ○ | ○ | ○ | ○ |
|
Vibration at the bottom of the bag |
○ | ○ | ○ | ○ | ○ |
|
Powder protection |
|||||
|
Inflatable seal |
▲ | × | ▲ | × | × |
|
Negative pressure dusting(not contain duster) |
○ | ○ | ○ | ○ | ○ |
|
Automatic blow valve mouth |
○ | × | ○ | ▲ | ▲ |
|
Safety protection |
|||||
|
Electrostatic grounding |
▲ | ▲ | ▲ | ▲ | ▲ |
|
|
▲ | ▲ | ▲ | ▲ | ▲ |
|
Stop packing when lose power |
○ | ○ | ○ | ○ | ○ |
|
Emergency stop |
○ | ○ | ○ | ○ | ○ |
|
Ex-proof |
▲ | ▲ | ▲ | ▲ | ▲ |
|
Mark: “○”is standard function；“▲”is choose function ；“×”is not has function |
|||||
main features:
*valve bag packing for Powder and ultrafine powder.
*Can be twin-type packer
*Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.
Main sub-suppliers:
| Name OF Outsourcing | Sub-suppliers |
| Weighing Controller | Uniplus F701 / Zhi Mei or Jie Man |
| Load Cell | Mettler Toledo / Zhong Dian Hang Ce |
| PLC | Mitsubishi |
| Touch panel ( option ) | Mitsubishi |
|
Fold edge sewing machine ( option ) |
De chao |
| Pneumatic Equipment | FESTO or SMC or airtac |
| Solenoid valve | FESTO or SMC or airtac |
| Photoelectric switch | Autonics |
| Metal detector ( option ) | METRON German |
| Robot ( option ) | FUJI EC-102 |
| Motor | Wan Nan |
| Sewing machine ( option ) | De Chao |
| Electric cabinet | Tong Ke |
| General Electric Component | SCHNEIDER |
Utilities ( provided by buyer )
1. Power:
AC380V±10％；50Hz±2%(three phase and five wires)；
2. Compressed Air:
Pressure: 0.55~0.7 Mpa；
Consumption: 0.3N m3/min；
3. Temperature: -10- +40(℃)
4. Relative humidity: ≤90% (no coagulation water)
5. De-dusting
Negative pressure:6-8 pa
Blowing rate: 1800m³/H
Advantage : Fast packing speed , high precision, less dust
Our hot sale products :
1. 25 kg automatic ( open mouth bag ) packing & palletizing line,
2. 25 kg automatic ( valve type bag ) packing & palletizing line,
3. ton bag packing machine.
4. liquid filling machine (10L-50L;/ 50L-250L; / 1500L)
95% of china white carbon black factory use our packing machine
