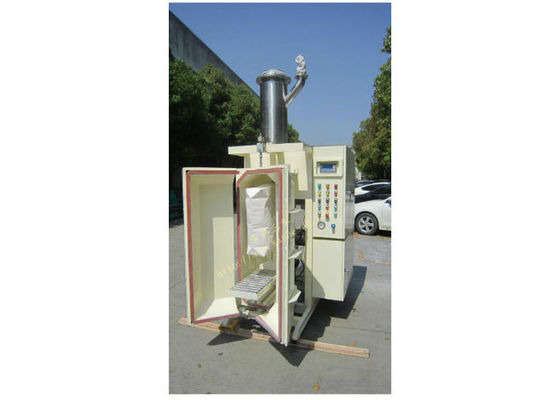

DCS-25PV6 25 Kg Valve Bag Packing Scale Machine Impeller Feeding AIRTAC Pneumatic
A. What is 25 kg electronic packing scale:
Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.
B. Working principle of 25 kg electronic packaging scale:
When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;
At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.
The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.
C. Generally, a packing & palletizing line includes: Electric Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor ,Robot, Wrapping Machine ,Finished palletizing conveyor.
D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine
| Application: | General powder or superfine powder |
| Driven Type: | Electric |
| Feeding Form | Vertical Impeller |
| Type: | Carton or Bag Packaging Machinery |
| Automatic Grade: | Semi-automatic |
| Warranty: | 1 Years |
Technical Parameter:
Quantitative range (Kg): 25 Kg
Packing speed (package/hour): 60-200 Bag per hour
Packaging Accuracy: Generally (+) 0.2% (Note: Special materials according to national or industry standards)
FAQ :
Q: Can your machine be customized ?
A: Yes, we are a professional manufacturer specilized in palletizing robot, packaging machine, conveyor etc. for more than 20 years and we have a strong design & technical team. We can design and manufacture as per your requirements.
Q: How to get an accurate quotation ?
A: Please provide us the detail of the workpiece such as drawing and dimensions.
Q: What’s the shipping cost from China to your country ?
A: We can send machine to your port by sea or other term you need. Please kindly tell us your nearest port or address. We have reliable shipping agent to ensure the safe, convenient and timely delivery.
Minimum order quantity: 1 set, FOB Shanghai
Delivery time: fast delivery after we receive the deposit.
Warranty: 12 months following delivery. We offer online service 24 hours all day long
You can contact us any time, if urgently, please call us.
Main sub-suppliers:
| Name OF Outsourcing | Sub-suppliers |
| Weighing Controller | Uniplus F701 / Zhi Mei or Jie Man |
| Load Cell | Mettler Toledo / Zhong Dian Hang Ce |
| PLC | Mitsubishi |
| Touch panel ( option ) | Mitsubishi |
| Fold edge sewing machine | De chao |
| Pneumatic Equipment | FESTO or SMC or airtac |
| Solenoid valve | FESTO or SMC or airtac |
| Photoelectric switch | Autonics |
| Metal detector | METRON German |
| Robot | FUJI EC-102 |
| Motor | Wan Nan |
| Sewing machine | De Chao |
| Electric cabinet | Tong Ke |
| General Electric Component | SCHNEIDER |
Utilities ( provided by buyer )
1. Power:
AC380V±10％；50Hz±2%(three phase and five wires)；
2. Compressed Air:
Pressure: 0.55~0.7 Mpa；
Consumption: 0.3N m3/min；
3. Temperature: -10- +50(℃)
4. Relative humidity: ≤90% (no coagulation water)
5. De-dusting
Negative pressure:6-8 pa
Blowing rate: 1800m³/H
Advantage : Fast packing speed , high precision, less dust
