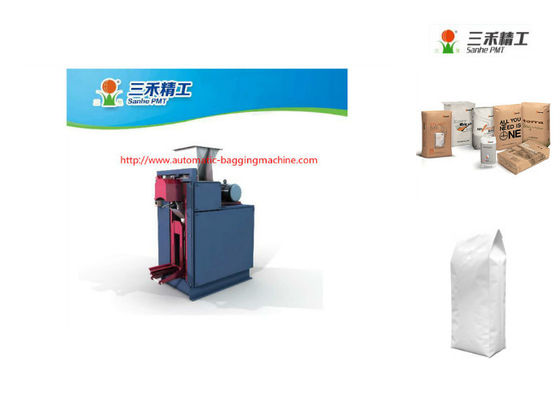

Semi Automatic Weighing Packing Machine for Nonferrous Metals 30-250 Bags Per Hour
1 Set
MOQ
Negotiation
Price
Semi Automatic  Weighing Packing Machine for Nonferrous Metals 30-250 Bags Per Hour
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Sanhe
Certification: ISO9001:2000. CE
Model Number: DCS-25PV1(5)(vertiacl impeller)
High Light:

powder packaging equipment

,

powder filling machine

Payment & Shipping Terms
Packaging Details: Wood pallet , The pallet size is customized according to different products
Delivery Time: 90 days
Payment Terms: T/T
Supply Ability: 90 Sets Per Month
Specifications
Name: Weighing Packing Machine
Weighing Accuracy: +-0.2%
Power KW: 3 KW
Suite For: Nonferrous Metals
Load Cell: Mettler Toledo / Zhong Dian Hang Ce
PLC: Mitsubishi
Product Description
Semi Automatic Weighing Packing Machine for Nonferrous Metals 30-250 Bags Per Hour


A. What is 25 kg electronic packing scale:

Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.





B. Working principle of 25 kg electronic packaging scale:

When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;



At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.



The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.





C. Generally, a packing & palletizing line includes: Electric Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor ,Robot, Wrapping Machine ,Finished palletizing conveyor.



D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine.


Valve bag packing for Powder and ultrafine powder.
 Can be twin-type packer
 Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.

The parameter and function table :
  DCS-25PV1(5)(vertiacl impeller)
Scope of application
Suitable materials Powder and ultrafine powder
Suitable packing container Vertical impeller
Technical parameters
Weighing range(Kg) 25
Packing speed(bag/H) 30-250
Packing Accuracy Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)





Product Characteristics :

Easy to operate and use

Bag-clamp equipment is advanced, material can be fully filled

Fill material system has material-stop equipment, accuracy high

Control, work parts all use imported parts, stable and reliable with sewing machine

Heat-sealing machine optional





Our core products is :

Powder Packing Machine
Big bag packing machine. 5kg-50kgs.
Ton bag pack machine.
Ton bag discharger.
10L-1000L liquid filling machine.
Palletizing Line.

It sales well in China and overseas market.
Sanhe--A wellknown packing and palletizing manufacture from China

Semi Automatic  Weighing Packing Machine for Nonferrous Metals 30-250 Bags Per Hour 0

Main sub-suppliers:

Name OF Outsourcing Sub-suppliers
Weighing Controller Uniplus F701 / Zhi Mei or Jie Man
Load Cell Mettler Toledo / Zhong Dian Hang Ce
PLC Mitsubishi
Touch panel ( option ) Mitsubishi
Fold edge sewing machine De chao
Pneumatic Equipment FESTO or SMC or airtac
Solenoid valve FESTO or SMC or airtac
Photoelectric switch Autonics
Metal detector METRON German
Robot FUJI EC-102
Motor Wan Nan
Sewing machine De Chao
Electric cabinet Tong Ke
General Electric Component SCHNEIDER





Utilities ( provided by buyer )



1. Power:

AC380V±10%;50Hz±2%(three phase and five wires);



2. Compressed Air:

Pressure: 0.55~0.7 Mpa;

Consumption: 0.3N m3/min;



3. Temperature: -10- +40(℃)



4. Relative humidity: ≤90% (no coagulation water)



5. De-dusting

Negative pressure:6-8 pa

Blowing rate: 1800m³/H





Advantage : Fast packing speed , high precision, less dust



Our hot sale products :



1. 25 kg automatic ( open mouth bag ) packing & palletizing line,



2. 25 kg automatic ( valve type bag ) packing & palletizing line,



3. ton bag packing machine.



4. liquid filling machine (10L-50L;/ 50L-250L; / 1500L)



95% of china white carbon black factory use our packing machine
