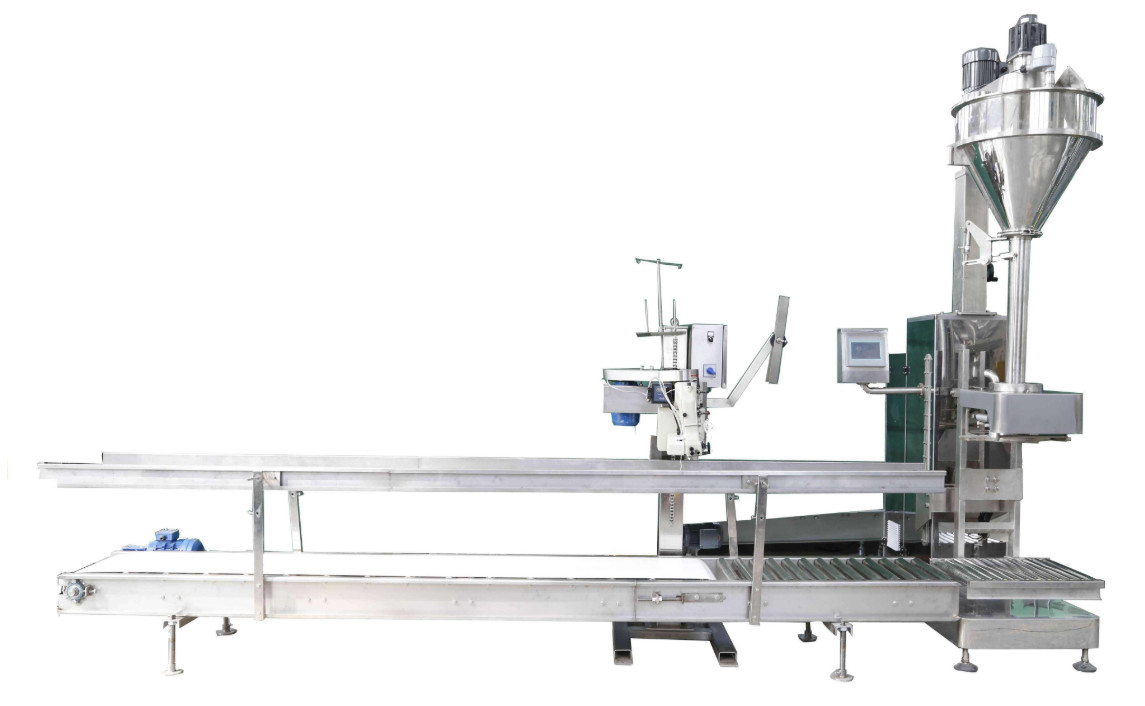

Gravity Feed 300bags/H Cereal 25Kg Salt Bagging Machine Open mouth bag packer
advantage of 25 kg semi-automatic weighing packing machine :
1.Just need connect the to the customer's hopper to our our packing machine buffer hopper, Or use the elevator to lift the materials from the ground to our packing machine buffer hopper .
This not only saves labor costs for enterprises, but also improves work productivity.
2. Different products have different feeding methods:
There are gravity arc door feeding, screw feeding , air flow feeding,
3. Electronic packaging scale is mainly applicable to automatic quantitative packaging of various granular materials, such as metering packaging of various granular materials such as soybean meal, feed, seed, building materials, compound fertilizer, chemical raw materials, etc.
4. The electronic packaging scale is easy to clean and maintain, with few transmission parts , low failure rate.
5. fast packing speed, high weight accuracy, low dusting.
6. The contact part of the electronic packaging scale is made of stainless steel, which has strong corrosion resistance, high hygiene standards and long service life of the equipment.
7. High precision weighing sensor: grade 0.2 weighing sensor is selected. Intelligent weighing display controller: high resolution, high-speed A / D conversion, weighing out of tolerance, zero out of tolerance alarm, various standard data communication interfaces, etc.
8. Composition of big bag weighing packing machine:
A. Buffer hopper ( in order to provide a Continuous and stable material flow) ;
B. Weighing part: through the weighing load cell ;
C. Feeding part ( arc door feeding / screw feeding / air flow feeding / Impeller feeding , available )
D. Unloading part;
9.Load cell and digital weighing controller. Automatically start, Automatically tare, Automatically free fall compensation.
The parameter and function table :
| |
DCS-25 25 Kg Salt bagging machine cereal automatic bagging machine |
| Scope of application |
| Suitable materials |
Granular material or powder material with fine flowability |
| Suitable packing container |
Open mouth bag, box, barrel |
| Feeding type |
Gravity |
| Alternative feeding type |
Vibrator |
| Technical parameters |
| Weighing weight(Kg) |
50 Kg |
| Packing speed |
160-180bag/H(Gross weight) 200-300bags/H(Net weight) |
| Packing Accuracy |
Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard) |
Please Send us The Details for 25 Kg Salt bagging machine Quatation :
The material (to be packed) parameter of Bagging Machine:
A. Product name ?
B. Diameter of the material (um or mm) ?
C. Form of product ( Granule or powder ) ?
D. Bulk density(ton/m3) ?
E. Flow ability ?
F. Moisture absorption ?
G. Causticity ?
H. Toxicity ?
I. Degree of ex-proof protection for the packing machine parts ?
Packing Paramete of Seeds Bagging Machine :
A. Packing speed (bag/hour) ?
B. Packaging weight per bag ( KG/bag ) ?
C. Weighing accuracy ?
Bag/Bucket Parameter OF 25 Kg Salt bagging machine :
A. Open mouth bag or valve type bag?
B. What material of the Bag/Bucket, PP bag, PE bag, Nylon Bag, Kraft paper, Paper-plastic composite (inner is plastic, outer is paper) ?
C. Bag size: width*height ( mm ) ?
D. Coiled bags or separate bags ?
our core products :
1. 25 Kg Salt bagging machine. / ton bag packing machine.
2. liquid filling machine. ( 10L-1500L)
3. batching systems.
4. Automatic Palletizer Machine
5. Automatic Pallet Wrapping Machine
If you have customer need it, we can do business together .
Function table :
| |
DCS-25GO7N)
net weight type for granules
|
DCS-25(PO2G)
Gross weight type for granules
|
DCS-25(PO2N)
Net weight type for powder
|
DCS-25(PO4G)
Vertical screw type
|
|
Scope of application
|
|
Suitable materials
|
Granular material or powder material with fine flowability
|
powder material or Fine powder
|
powder material
|
Easy to bridging or raised dust of ultrafine powder
|
|
Suitable packing container
|
Open mouth bag, box, barrel
|
Open mouth bag, box, barrel
|
Open mouth bag, box, barrel
|
Open mouth bag, box, barrel
|
|
Feeding type
|
Gravity
|
horizontal screw
|
horizontal screw
|
Vertical screw
|
|
Alternative feeding type
|
Vibrator
|
Vibrator, belt
|
Vibrator, belt
|
× |
|
Technical parameters
|
|
Weighing range
|
1-100 |
10-50 |
10-50 |
1-50 |
|
Packing speed(bag/H)
|
300-800 |
100-200 |
100-500 |
100-180 |
|
Packing Accuracy
|
Generally (+/- )0.2% ( Note: special materials shall depend on the industrial standard )
|
|
Control function
|
|
Automatic tare
|
○ |
○ |
○ |
○ |
|
Automatic quick and slow feeding
|
○ |
○ |
○ |
○ |
|
Automatic free fall compensation
|
○ |
○ |
○ |
○ |
|
Automatic minus deviation
|
▲ |
▲ |
▲ |
▲ |
| Automatic over weight alarms |
○ |
○ |
○ |
○ |
| diagnosis failure |
○ |
○ |
○ |
○ |
|
Manual/Automatic mode conversation
|
○ |
○ |
○ |
○ |
|
Communication port
|
▲ |
▲ |
▲ |
▲ |
|
Regulatory function
|
| Manual adjusting the height of bag |
○ |
○ |
○ |
○ |
| Important auxiliary function |
| Arch break function of hopper |
× |
○ |
○ |
○ |
| Vibration at the bottom of the bag |
▲ |
▲ |
▲ |
▲ |
| Powder protection |
| Inflatable seal |
▲ |
▲ |
▲ |
▲ |
| Negative pressure dusting(not contain duster) |
▲ |
○ |
○ |
○ |
| Valve for leak-proof |
× |
▲ |
▲ |
▲ |
|
Safety protection
|
| Electrostatic grounding |
▲ |
▲ |
▲ |
▲ |
| ionic wind remove static |
▲ |
▲ |
▲ |
▲ |
| when lose power |
○ |
○ |
○ |
○ |
| Emergency stop |
○ |
○ |
○ |
○ |
| Ex-proof |
▲ |
▲ |
▲ |
▲ |
| Original mode |
DCS-25 |
DCS-25FW |
DCS-25F |
DCS-25FL |
| Mark: “○”is standard function；“▲”is choose function ；“×”is not has function |
Main specialty
- Scope of application: Granular material or powder material of Packing bags(boxes and pails)
- Can be made into twin-type pakcer(except DCS-25(GO7N)和DCS-25(PO4G))
- Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.
