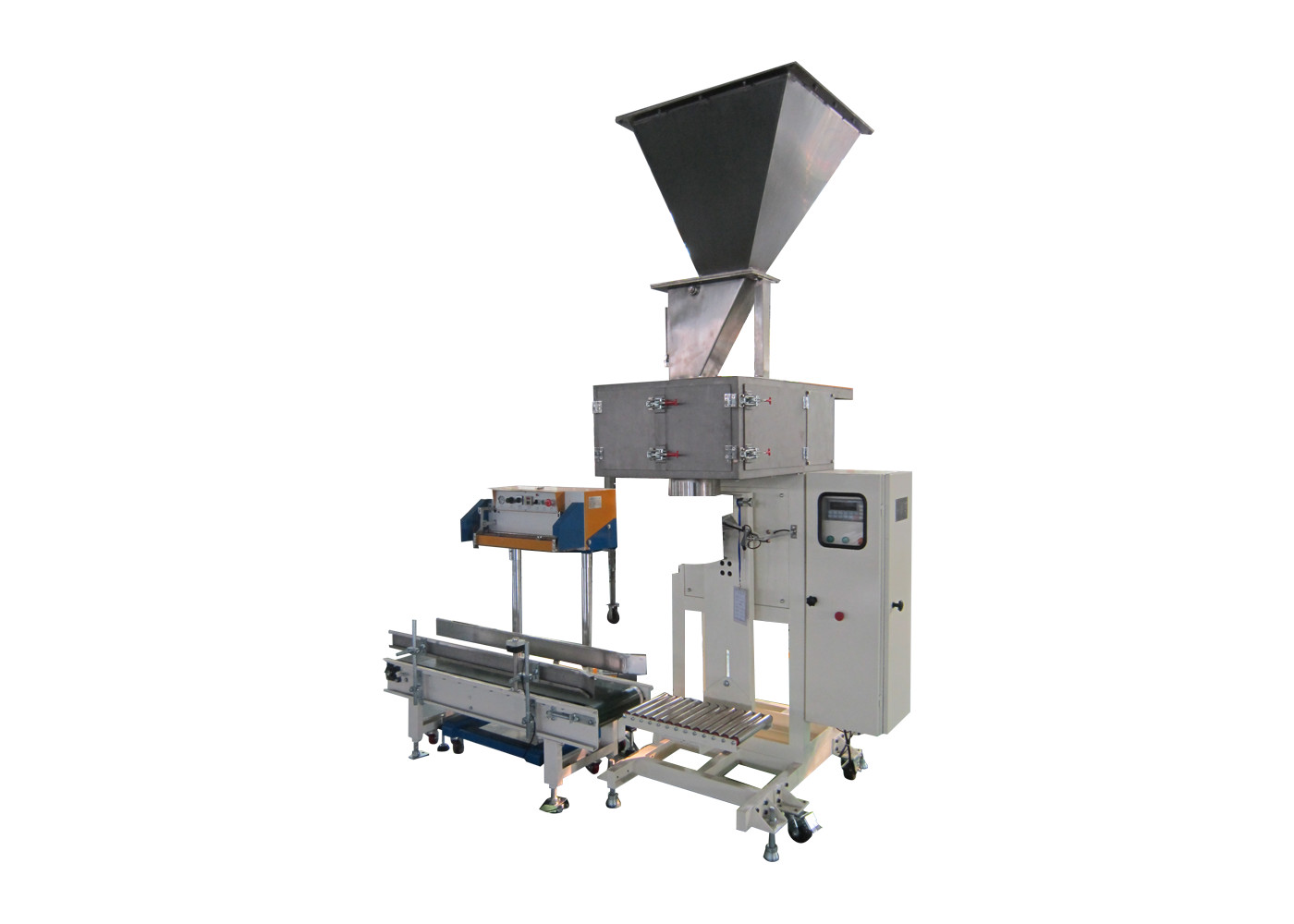

Semi Automatic 25kg Open Mouth Bag Weighing Filling Machine 100 Bags/Hour
What is 25 kg electronic packing scale machine ?
Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.
The parameter and function table :
| DCS-25 | |
| Scope of application | |
| Suitable materials | Powder and thin granule of good Air affinity |
| Suitable packing container | Open mouth bag |
| Feeding type | Gravity |
| Alternative feeding type | × |
| Technical parameters | |
| Weighing range(Kg) | 25 |
| Packing speed(bag/H) | 30-100 |
| Packing Accuracy | Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard) |
Please Send us the Details so that we can make the proper plan for you :
1. Name of Material to Be Filled in Bag?
2. Weight Capacity of Single Bag ?
3. How Much Bag Fill Per Hour ( packing speed )
|
DCS-25GO7N) net weight type for granules |
DCS-25(PO2G) Gross weight type for granules |
DCS-25(PO2N) Net weight type for powder |
DCS-25(PO4G) Vertical screw type |
|
|
Scope of application |
||||
|
Suitable materials |
Granular material or powder material with fine flowability |
powder material or Fine powder |
powder material |
|
|
Suitable packing container |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
|
Feeding type |
Gravity |
horizontal screw |
horizontal screw |
Vertical screw |
|
Alternative feeding type |
Vibrator |
Vibrator, belt |
Vibrator, belt |
× |
|
Technical parameters |
||||
|
Weighing range |
1-100 | 10-50 | 10-50 | 1-50 |
|
Packing speed(bag/H) |
300-800 | 100-200 | 100-500 | 100-180 |
|
Packing Accuracy |
Generally (+/- )0.2% ( Note: special materials shall depend on the industrial standard ) |
|||
|
Control function |
||||
|
Automatic tare |
○ | ○ | ○ | ○ |
|
Automatic quick and slow feeding |
○ | ○ | ○ | ○ |
|
Automatic free fall compensation |
○ | ○ | ○ | ○ |
|
Automatic minus deviation |
▲ | ▲ | ▲ | ▲ |
|
Automatic over weight alarms |
○ | ○ | ○ | ○ |
|
diagnosis failure |
○ | ○ | ○ | ○ |
|
Manual/Automatic mode conversation |
○ | ○ | ○ | ○ |
|
Communication port |
▲ | ▲ | ▲ | ▲ |
|
|
||||
|
Manual adjusting the height of bag |
○ | ○ | ○ | ○ |
|
Important auxiliary function |
||||
|
Arch break function of hopper |
× | ○ | ○ | ○ |
|
Vibration at the bottom of the bag |
▲ | ▲ | ▲ | ▲ |
|
Powder protection |
||||
|
Inflatable seal |
▲ | ▲ | ▲ | ▲ |
|
Negative pressure dusting(not contain duster) |
▲ | ○ | ○ | ○ |
|
Valve for leak-proof |
× | ▲ | ▲ | ▲ |
|
Safety protection |
||||
|
Electrostatic grounding |
▲ | ▲ | ▲ | ▲ |
| ▲ | ▲ | ▲ | ▲ | |
|
when lose power |
○ | ○ | ○ | ○ |
|
Emergency stop |
○ | ○ | ○ | ○ |
|
Ex-proof |
▲ | ▲ | ▲ | ▲ |
|
Original mode |
DCS-25 | DCS-25FW | DCS-25F | DCS-25FL |
|
Mark: “○”is standard function；“▲”is choose function ；“×”is not has function |
||||
Main specialty
