Two Layer 500 Mesh Diameter 1750mm Rotary Vibrating Screen
1 Set
MOQ
Price(USD): 1000-7000/set
Price
Two Layer 500 Mesh Diameter 1750mm Rotary Vibrating Screen
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou ,China
Brand Name: Sanhe
Certification: ISO9001:2015, CE
Model Number: SHDY-400-1S
High Light:

Diameter 1750mm Rotary Vibrating Screen

,

500 Mesh Rotary Vibrating Screen

,

Diameter 1750mm Rotary Vibrating Sieve

Payment & Shipping Terms
Packaging Details: Plywood case
Delivery Time: 7-10 days after deposit
Payment Terms: T/T
Supply Ability: 100 sets per month
Specifications
Name: Rotary Vibrating Screen
Diameter: 1750mm
Product Description

Automatic Vibratory Machine Industrial Mobile Rotary Vibrating Screen

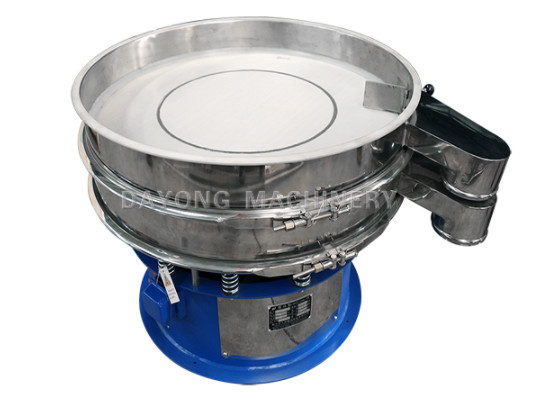

Two Layer 500 Mesh Diameter 1750mm Rotary Vibrating Screen 0

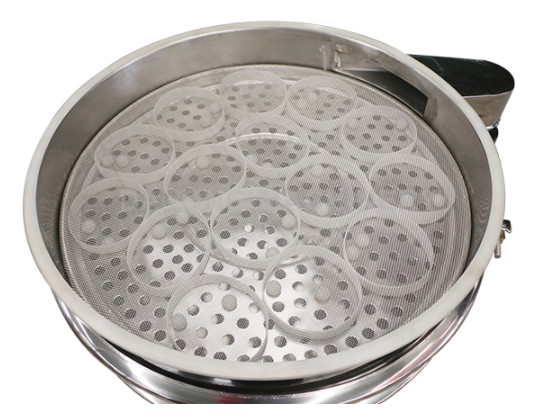

2. Silica gel bouncing ball and PU ring:
We adopts the silica gel bouncing ball and PU ring beneath every screen surface to clean it.

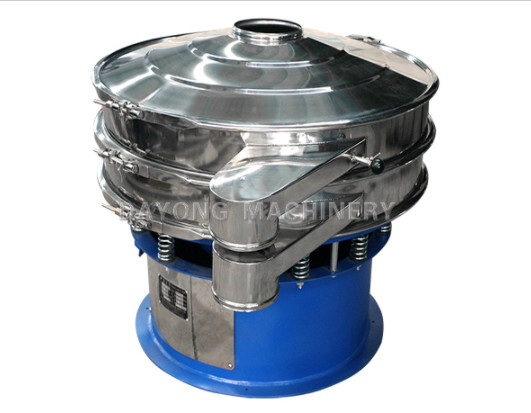

Two Layer 500 Mesh Diameter 1750mm Rotary Vibrating Screen 1

3. Silica gel seal ring:
The silica gel ring has a great sealing effect between every two decks.



Two Layer 500 Mesh Diameter 1750mm Rotary Vibrating Screen 2

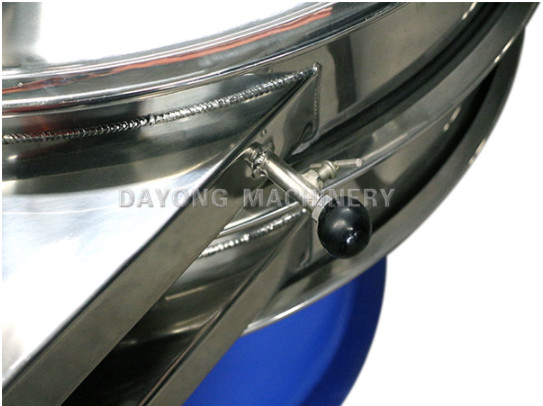

4. Extended copper screw:
We adopts extended copper scrw on every clamp, much safe and durable.Two Layer 500 Mesh Diameter 1750mm Rotary Vibrating Screen 3



5. Protective cover:
We could add a extra cover around the springs to ensure fully enclosed and beautiful appearance.Two Layer 500 Mesh Diameter 1750mm Rotary Vibrating Screen 4





  • Diameter of screen(mm): 320-1750
  • Sieving precision(mesh): ≤500
  • Power(KW): 0.18-1.75
  • Layer: 1-3
  • Price(USD): 1000-7000
  • ■ Specifications
    Attention1:
    The rotary vibrating screen is a customizable machine, which can be manufactured as the customers' different needs.
    Attention2:
    The rotary vibrating screen also be called as other name in different country, for example, sometimes will also named it as rotating vibrtory separator; round separator; vibro screen; circular screen separator; gyro sifter; gyro screen; Round Vibrating Sifter; Round Type Vibrating Screen Separator; vibratory sieve; vibro Shifter; vibro sifter and so on.
    Distinctive Features:
    1.Solid frame: We adopts solid frame on the screen frame, much firm and durable.
Application industries:
1. Chemical industry: resin pigment, medicine, grease, paint, palette, cosmetic, etc.
2. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
3. Metallurgy industry: aluminum powder, lead powder, copper powder, ore, alloy powder ,electrode powder, manganese dioxide, electrolytic copper powder, electric magnetic material, polishing powder, refractory material, etc.
4. Mining industry: kaolin, alumina, carbon, quartz sand,titanium oxide, zinc oxide, etc.
5. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive,refractory material, slurry, etc.
6. Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.
7. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
8. Pollution treatment: waste oil, waste water,additives, activated carbon,etc.



Two Layer 500 Mesh Diameter 1750mm Rotary Vibrating Screen 5

Two Layer 500 Mesh Diameter 1750mm Rotary Vibrating Screen 6

■ Technical Data

Type Power(KW) Diameter of screen(mm) volume(mm) Layer
SHDY-400-1S
SHDY-400-2S
SHDY-400-3S
0.18 320 580*580*560
580*580*660
580*580*760
1
2
3
SHDY-600-1S
SHDY-600-2S
SHDY-600-3S
0.55 550 800*800*680
800*800*780
800*800*880
1
2
3
SHDY-800-1S
SHDY-800-2S
SHDY-800-3S
0.75 750 900*900*780
900*900*930
900*900*1080
1
2
3
SHDY-1000-1S
SHDY-1000-2S
SHDY-1000-3S
1.5 950 1160*1160*880
1160*1160*1030
1160*1160*1180
1
2
3
SHDY-1200-1S
SHDY-1200-2S
SHDY-1200-3S
1.75 1150 1360*1360*980
1360*1360*1160
1360*1360*1360
1
2
3
SHDY-1500-1S
SHDY-1500-2S
SHDY-1500-3S
2.2 1450 1850*1850*1130
1850*1850*1330
1850*1850*1550
1
2
3
SHDY-1800-1S
SHDY-1800-2S
SHDY-1800-3S
3 1750 2200*2200*1360
2200*2200*1460
2200*2200*1680
1
2
3





Vibration sieve,
Metal detection,
X-ray foreign body detector,
Inkjet printer,
Pipe chain conveyor,
Sealing machine,
Unpacking machine,
Packing machine,
Vacuum conveyor ( vacuum feeder )

Two Layer 500 Mesh Diameter 1750mm Rotary Vibrating Screen 7




  •
