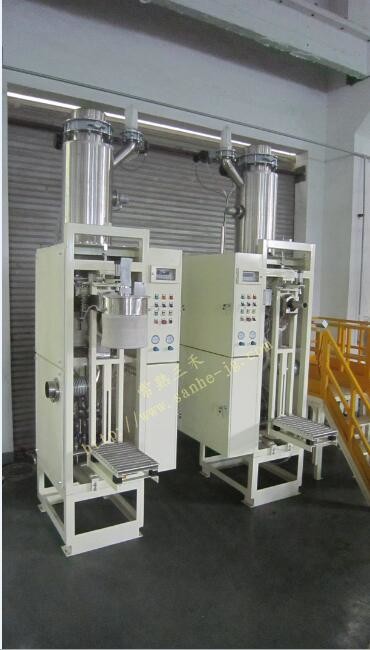

25Kg/Bag Carbon Black Packing Machine PLC Control 250 Bag/H
1 Set
MOQ
Negotiable
Price
25Kg/Bag Carbon Black Packing Machine PLC Control 250 Bag/H
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: ISO9001:2015, CE
Model Number: DCS-25PV3
High Light:

PLC Control Carbon Black Machine

,

250 Bag/H Carbon Black Packing Machine

,

25Kg/Bag Valve Bagging Machine

Payment & Shipping Terms
Packaging Details: Wood pallet , The pallet size is customized according to different products
Delivery Time: 90 days
Payment Terms: T/T
Supply Ability: 30 Sets Per Month
Specifications
Product Name: Valve Bag Weighing Packing Machine
Weighing Range: 25 Kg / Bag
Speed: 100-200 Bags Per Hour
Warranty: 1 Year
Power KW: 3 KW
Automatic Level: Semi-automatic
Product Description

25 Kg / Bag Semi-Automatic Valve Bag Weighing Packing Machine 30-250 Bag Per Hour

25 Kg / Bag Semi-automatic Carbon black packing machine for valve bag



A. What is 25 kg Carbon black packing machine:

Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.



The parameter and function table of 25 kg Carbon black packing machine



DCS-25PV1(1)

(exhausting type)

DCS-25PV1(2)

(screw type)

DCS-25PV1(3)

(airflow type)

DCS-25PV1(5)

(horizontal impeller)

DCS-25PV1(6)

(vertiacl impeller)



Scope of application



Suitable materials



Powder and ultrafine powder of good Air affinity



Powder and thin granule



Powder and thin granule



Powder and ultrafine powder



Powder and ultrafine powder



Suitable packing container

Upper and lower spiral air supply single screw air flow Horizontal impeller Vertical impeller



Technical parameters



Weighing range(Kg)

10-50 10-50 10-50 10-50 10-50



Packing speed(bag/H)

30-180 30-120 30-200 30-250 30-250



Packing Accuracy



Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)



Control function



Automatic tare



Automatic quick and slow feeding



Automatic free fall compensation



Automatic minus deviation

× ×



Automatic over weight alarms



Automatic self diagnosis failure



Manual/Automatic mode conversation



Communication port



Regulatory function



Manual adjusting the height of bag



Suit for open and valve bag function



Important auxiliary function



Blow bag function in advance



Arch break function of hopper



Vibration at the bottom of the bag



Powder protection



Inflatable seal

× × ×



Negative pressure dusting(not contain duster)



Automatic blow valve mouth

×



Safety protection



Electrostatic grounding



ionic wind remove static



Stop packing when lose power



Emergency stop



Ex-proof



Mark: “○”is standard function;“▲”is choose function ;“×”is not has function



main features of 25 kg Carbon black packing machine :

*valve bag packing for Powder and ultrafine powder.

*Can be twin-type packer

*Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.



B. Working principle of 25 kg Carbon black packing machine :

When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;



At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.



The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.



C. Generally, a packing & palletizing line includes: Electric Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor ,Robot, Wrapping Machine ,Finished palletizing conveyor.



D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine



Operation flow chart :

load on bag--peeling weight--fast feeding--slow feeding--finish filling--seal / sew bag mouth



Optional operation :

Metal detection ,

Weight checker ,

Kick un-uniform bag,

Printer ,

Automatic palletizer ,

Automatic pallet wrap machine ,



Technical Parameter Of Carbon black packing machine  :

Quantitative range (Kg): 5Kg - 50 Kg

Packing speed (package/hour): 30-250 Bag per hour

Packaging Accuracy: Generally (+) 0.2% (Note: Special materials according to national or industry standards)



Advantages of 25 kg Carbon black packing machine

High accuracy
Easy clean out and maintence
After the machine installs you get hands on training and documentation
The air flow feed system is capable of high production rates while maintaining good accuracies.
Operator friendly easy set
Universal and industrial components give the machinery extra long life
Manufactured to comply above and beyond international standards
PLC controller interface
The flexible and modular Packaging System


FAQ of 25 kg
Carbon black packing machine

The follwing questions for us to help you find what you want ?

1, The material you want to pack and its size(μm, mm), bulk density(kg/m3)

2, Packing weight (kg/bag), capacity (t/day)

3, Detailed description of production line


Our core products is :

Carbon black packing machine
Big bag packing machine. 5 kg-50 kg.
Ton bag pack machine.
Ton bag discharger.
10L-1000L liquid filling machine.
Palletizing Line.

It sales well in China and overseas market.
Sanhe--A wellknown packing and palletizing manufacture from China
