Name: Manual Bag Dumping Station For Chemical Powder Particle
Brand: Sanhe
SKU: 600-1200 mm
Price: 1.00 USD
Availability: InStock
Rating: 5 (105 reviews)
ISBN: 14452979

Features Gallery Product Description Request A Quote

Features

Basic Infomation

Place of Origin: Suzhou

Brand Name: Sanhe

Certification: ISO9001:2015, CE

Model Number: 600-1200 mm

High Light:

Manual Bag Dumping Station

Powder Particle Bag Dumping Station

Bag Dumping Station Auxiliary Equipment

Payment & Shipping Terms

Packaging Details: Wood pallet , The pallet size is customized according to different products

Delivery Time: Negotiable

Payment Terms: L/C, T/T

Supply Ability: 90 Sets Per Month

Specifications

Product Name: Bag Dumping Station

Customized Module:: Machine Color/Machine Diameter/Size Of Cover Opening/Machine Height

Production Capacity: 90 Sets Per Month

Usege: Chemical, Food, Ceramics, Power Station, Metallurgy, Mining, Building Materials And Other Industries

Driven Type: Electric

Core Components: Motor

Vibration Level: As Well As For Bulk Bag Unloading And Screening Of Raw Ingredients.

Condition: New

Gallery

Product Description

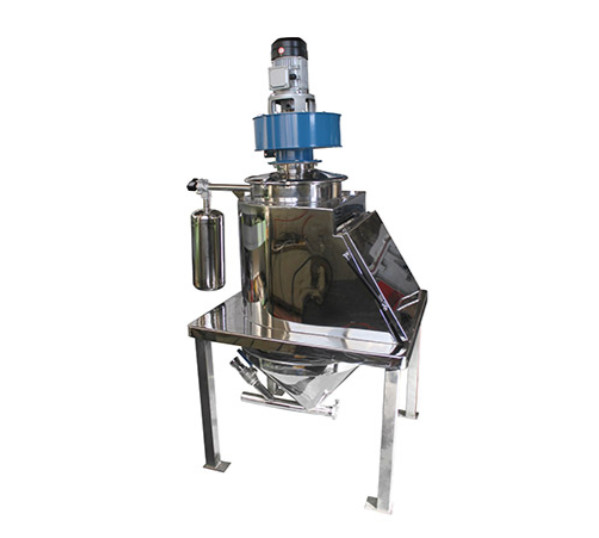

Manual Bag Dumping Stations for Powder Particle

RIEF INTRODUCTION :

Bag dumping station, which is suitable for powder materials. such as flour,milk powder etc., and it is used for manural unpacking and dumping bags ,during the dumping process, dust will be collected by the dust collector without leak ,and material fall into the storage hopper by gravity.

Model	Layers (s)	Screening area	Screening structure	Power	Speed (r.p.m)	Live load	Static load	Vibration force (KN)	Vibration amplitude (mm)	Speed	Flow
Model-800	1	0.42	mesh grid	2*0.18	1460	400N	1500N	2.5*2	3*4	2900	1550-997
Model-1000	1	0.62	mesh grid	2.0.25	1460	500N	2500N	5*2	3*5	2900	1550-997

WORKING PRINCIPLE:

Dumping the material into the hopper rely on gravity to complete the demolition of the bag unloading work.Operation flow showing as below: Open the feeding door, artificial or hammock will bag on the shelf or Lifting Table, unpack Bag , push the bags into the hopper,materials fall into the hopper ,empty bag is pushed out from the Bag-outlet,after sieving, qualified materials are falling into the next process, debris left on the screen. Machine can equipped with bag filter or filter dust collector (optional), feeding process is under the condition of negative pressure environment, no dust leakage, greatly improving the feeding environment. The device discharge port can be connected with the vacuum conveyor, screw conveyor and other variety of conveying equipment.

APPLICATION:

Bag dumping station is suitable for powder materials. such as flour,milk powder etc.

MAIN FEATURES :

1. simple structure,easy operation

2. Accurate dumping and reclaiming

3. Protect environment, environmental health

4. Strong body, our engineer has redesigned the frame, use thicker and stronger material

5. The size and capacity can be customized.

Tag:

Contact Person :	Sophie Cheng
Tel :	008613915662752
Fax :	0086-512-52594071
