Granule Weighing Filling And Packing Machine 100kg / Bag
1 Set
MOQ
Negotiation
Price

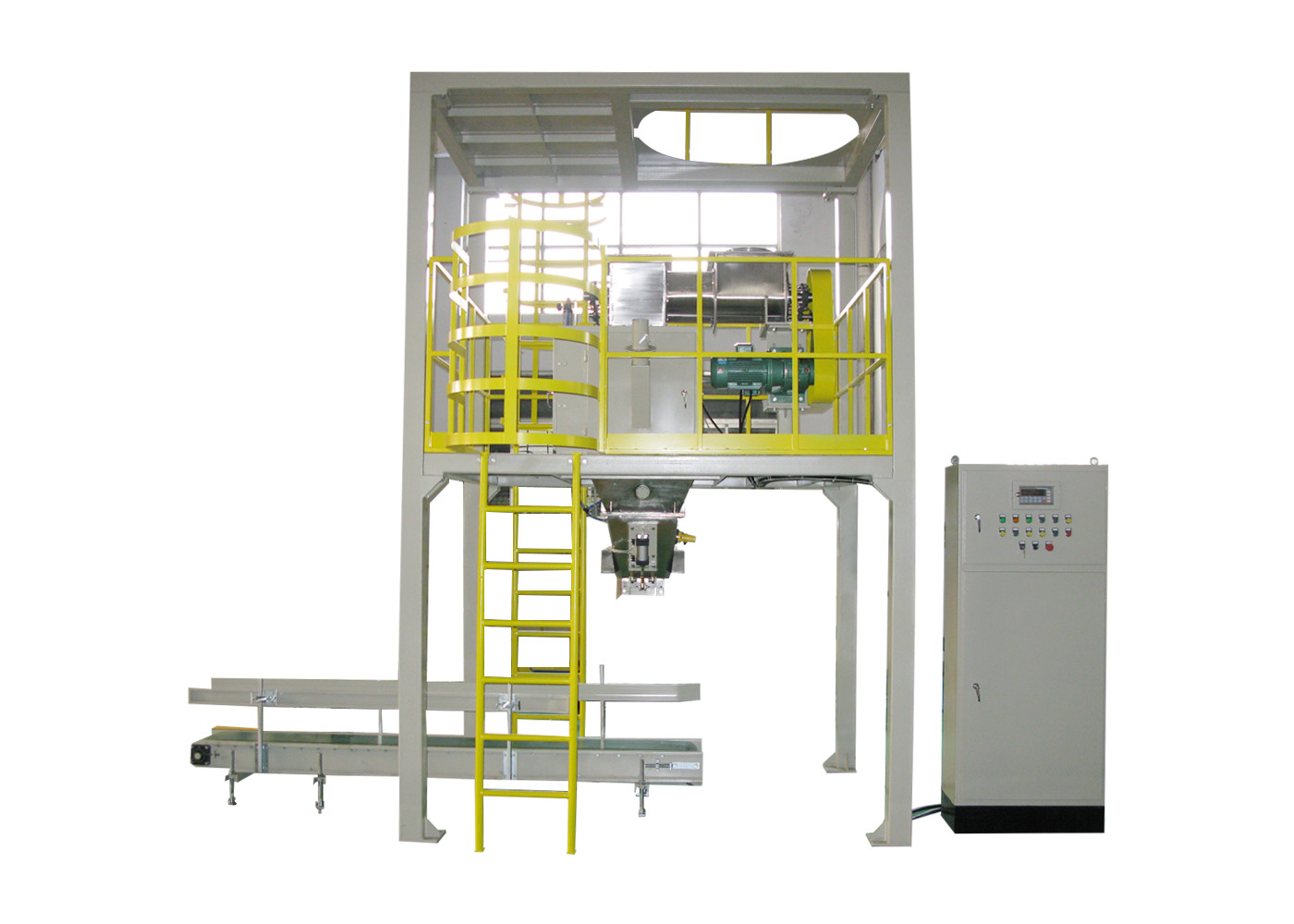

Granule Weighing Filling And Packing Machine 100kg / Bag
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: CE, ISO9001:2015
Model Number: DCS-25
High Light:

Granule Weighing Filling And Packing Machine

,

100kg / Bag Filling And Packing Machine

,

Gravity Feeding Auto Bagging Machine

Payment & Shipping Terms
Packaging Details: export packaging
Delivery Time: 90 Days
Payment Terms: T/T,
Supply Ability: 30 Set Per Month
Specifications
Name: Granule Weighing Packing Machine
Brand: Sanhe
Certification: ISO9001:2015. CE
Function: Weighing Filling Packing
Drive: Electric
Port: Shanghai
Product Description
100kg / bag granule weighing filling and packing machine

Product Description:

1. The packaging line is composed of a certain amount of automatic feeder packaging machine - conveying sealing port, which has the characteristics of reasonable structure, stable operation, convenient operation, and high weighing accuracy.

2. It adopts no-bucket/bucket-clamped bag weighing measurement, gate discharge, more energy-saving and electricity-saving, adopts all stainless steel production technology, PLC operation control technology, simple operation.



Main technical parameters of the granule packing machine:

Feeding type:
gravity feeding
Maximum weighing weight:
100kg
Packing speed:
4-6 bags/min
Packaging accuracy:
±0.2%
Air source pressure:
0.55~0.7 Mpa
Air source consumption:
0.3N m3/min
Weighing method:
load cell
Frequency/voltage:
50Hz/60Hz/ 380V /400V (can be negotiation)
Equipped with power:
2.2 kw
Dimensions:
length 800 × width 900 × height 2200 (or 2700 including the height of the silo) (mm)

Product application
This machine is suitable for granular. Quantitative packaging of granular powder mixed and other materials. Such as quantitative filling and packaging of granular materials such as fertilizer, feed, plastic granules, Chinese medicine granules, premixes, seeds, peanuts, monosodium glutamate, chicken essence, grains etc.




 Granule Weighing Filling And Packing Machine 100kg / Bag 0

Granule Weighing Filling And Packing Machine 100kg / Bag 1




The material (to be packed) parameter of Chemical resin particles bagging machine :
A. Product name ?
B. Diameter of the material (um or mm) ?
C. Form of product ( Granule or powder ) ?
D. Bulk density(ton/m3) ?
E. Flow ability ( under the gravity ) ?
F. Moisture absorption ?
G. Causticity ?
H. Toxicity ?
I. Degree of ex-proof protection for the packing machine parts ?


Packing Paramete of Bagging Machine :
A. Packing speed (bag/hour) ? how many bags per hour ?
B. Packaging weight per bag ( KG/bag ) ?
C. What is the packing kg accuracy ? +- 0.2% ?


Bag/Bucket Parameter Chemical resin particles bagging machine :
A. Open mouth bag or valve type bag?
B. What material of the Bag/Bucket,
PP bag, PE bag, Nylon Bag, Kraft paper, Paper-plastic composite (inner is plastic, outer is paper) ?
how to seal the bag mouth form ?
C. Bag size: width*height ( mm ) ?
D. Coiled bags or premade bags ?
E. Robot give empty bag ?  manua giving empty bag ?



Service:

Machine warranty one year. supply the spare parts shipment in China region. Spare parts free of charge are supplied within one warranty year, easy damaged parts and man-made damage are exclusive, over one warranty year seller only charge spare part at cost price.

Seller will give buyer long term technology support. Seller offer buyer side operation manual in English. "

Option 1: (Supervion for Installation and Commission: some cost by negotiation, (some cost by negotiation / Person / Day,not contain Round-trip air ticket expense, Accommodation and transportation expenses at buyer country.)

Option 2: Buyer can dispatch engineer to do inspection after production of machines finished, seller are responsible to offer your engineers' training in free of charge.





Optional operation:

Metal detection machine,

Weight re-check machine,

Eliminate machine,

Inkjet printer,

Automatic palletizer,

Palllet wrap machine.
