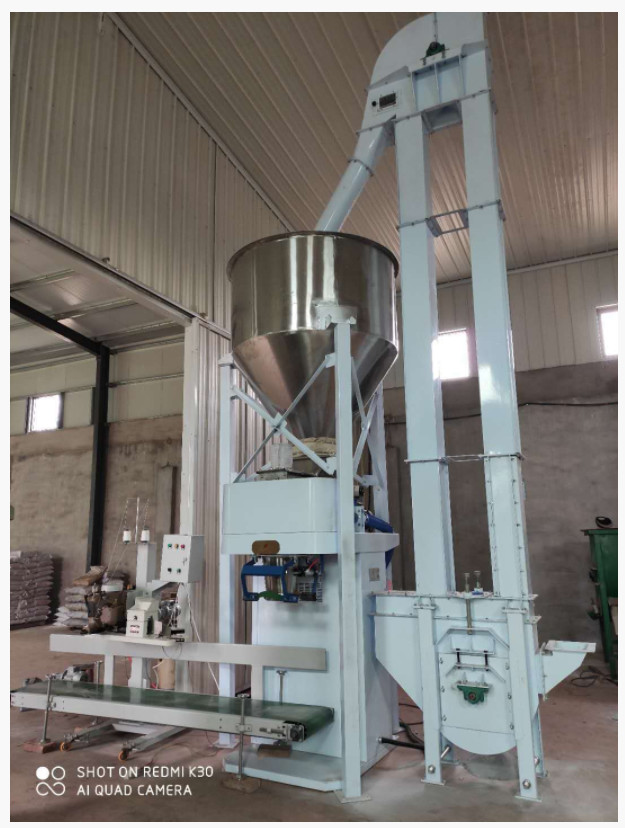

10 - 50 Kg / Bag Quantitative Packaging Scale For Superfine Powder
1 Set
MOQ
Negotiation
Price
10 - 50 Kg / Bag Quantitative Packaging Scale For Superfine Powder
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: CE, ISO9001:2015
Model Number: DCS-25
High Light:

Superfine Powder Package Weight Scale

,

Air Flow Feeding Packaging Scale

,

50 Kg / Bag Packaging Scale

Payment & Shipping Terms
Packaging Details: wooden pallet
Delivery Time: 90 Days
Payment Terms: T/T,
Supply Ability: 30 Set Per Month
Specifications
Name: Powder Packing Scale Machine
Brand: Sanhe
Certification: ISO9001:2015. CE
Function: Weighing Filling Packing
Drive: Electric
Port: Shanghai
Product Description
SanhePMT 10-50 kg / bag Quantitative packaging scale ( for superfine powder )


Scope of application: chemical industry, chemical fertilizer, soda ash, building materials, mineral powder and other industries



Use process of packaging machine: manual assistance in bag loading, automatic weighing, bag clamping and filling, and automatic sealing or bag sewing through conveyor belt



Main technical parameters of the Powder Packing Scale Machine:

Feeding type:
Air flow feeding
Packaging target weight range(Kg)
 10-50 kg  / bag
Packing speed:
1-4 bags / min,
Packaging accuracy:
±0.2% FS
Air source pressure:
0.55~0.7 Mpa
Air source consumption:
0.3N m3/min
Weighing method:
load cell
Frequency/voltage:
50Hz/60Hz/ 380V /400V (can be negotiation)
Equipped with power:
 4 KW
Dimensions:
Host size: 1300*1600*3200(mm)

★ warranty content

(1) Free warranty period: all products belonging to the company and product failures due to product quality shall be guaranteed for one year with the warranty form from the date of purchase.

(2) If it exceeds one year, it shall be charged for service, and the parts and calibration fees shall be charged according to the fault condition.

(3) In case of failure after five years of use, the company will provide services as usual.

(4) Non warranty scope: failure caused by improper installation, use and storage. Failure caused by failure to use power supply according to regulations. Failure caused by natural disasters, ground changes, rats and insects. Failure caused by self disassembly.




Operation flow chart of our Powder Packing Scale Machine:
1. load on bag
2. peeling weight
3. fast feeding
4. slow feeding
5. finish filling
6. seal / sew bag mouth
SanhePMT Powder Packing Scale Machine with Conveyor and Sewing Machine for 25Kg Bag Powder Weighing Filling Bagging 0

The following optional operation of our Powder Packing Scale Machine:
1. metal detection ,
2. weight checker ,
3. remove the bag with weight over error,
4. inkjet printer ,
5. automatic palletizer,
6. auto pallet wrap machine / stretch hood machine

ChangShu SanHe Precision Machinery & Technolgoy Co.,Ltd is a technological enterprise which is professional engaged in research, development, manufacture and sale of solid and powder product (graininess product and powdery product ) packaging machine, liquid filling machine, automatic packing(filling) and & palletizer line. It’s products sell well home and abroad ,and are already widely used in chemical,petrochemical, fine chemical, medicine, fertilizer, plastics, rubber, dyestuff, food, feed, non-ferrous metals, metallic minerals, nonmetallic minerals, building material industries etc.



SanhePMT Powder Packing Scale Machine with Conveyor and Sewing Machine for 25Kg Bag Powder Weighing Filling Bagging 1



Changshu Sanhe Precision Machinery & Technology Co.,Ltd. factory production line 3Changshu Sanhe Precision Machinery & Technology Co.,Ltd. factory production line 4

  ChangShu SanHe Precision Machinery & Technolgoy Co.,Ltd is a Jiangsu Province Hi-tech Enterprise, a Jiangsu Province Private Science & Technology Enterprise, It is a patented advanced of Jiangsu province. It won Chinese National Private Hi-tech Enterprise Innovation Prize in 2006,

and be already awarded ISO9001-2000 “Certificate of The System of Quality Certification” and “License for manufacturing measuring instruments of the People’s republic of China”(CMC). it has three Jiangsu Province Hi-tech Products . The enterprise has 104 employees , including 28 technicians.




 If you are interested, Please Provide us The material (to be packed) parameter, so that we can make the proper Powder Packing Scale Machine layout for you:
A. Product name ?
B. Diameter of the material (um or mm) ?
C. Form of product ( Granule or powder ) ?
D. Bulk density(ton/m3) ?
E. Flow ability (Gravity self flow capacity)?


Frequently asked questions:


**can you give a brief introduction of your factory ?
--we built in 1998, with 104 stuff now, China high-tech manufacture,



**whats your main products ?
1. 25 kg automatic ( open mouth bag ) weighing packing & palletizing line,
2. 25 kg automatic ( valve type bag ) packing & palletizing line,
3. ton bag packing machine.
4. liquid filling machine (10L-50L;/ 50L-250L; / 1500L)
5. Ton Bag Feeding Station Ton bag unpacking station.
6. stretch hood machine .



**how many technic man do you have ?
--20 people .



**where is your factory locate?
--120 Km far north-west to shanghai city.



**what is the Annual output value of 2021 ?
--11,004,000 USD in 2021.



**what is your delivery time ?
-- normally 3 months for semi-automatic weighing bagging machine ; 4 months for the automatic bagging line;



**what certification do you have ?
--CE , ISO 9001 : 2015.

**what is the packing of products ?
--wooden pallet / wooden case.



**which port of yours ?
--Shanghai port.



**whats your market ? donestic or export ? what percentage for export ?
--china market 90% , 10% export .



**what fair do you attend ?
--PROPAK, Food additives fair, chemical fair, Pharmaceutical fair...



**what countries do you export to now ?
--Pakistan,India,Thailand ,Malaysia ,USA, Philippine , Indonesia, South Korea, Algeria ...



**how many people in QC team ? how do you make QC control ? internal or thrid party ?
--2 QC, internal QC control.



**are you open for OEM /ODM ?
--yes , available.
