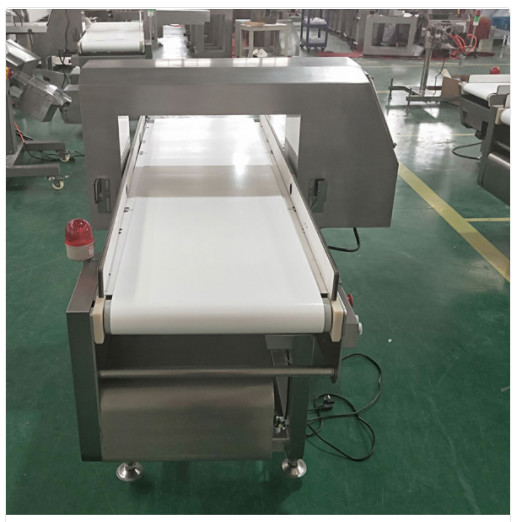

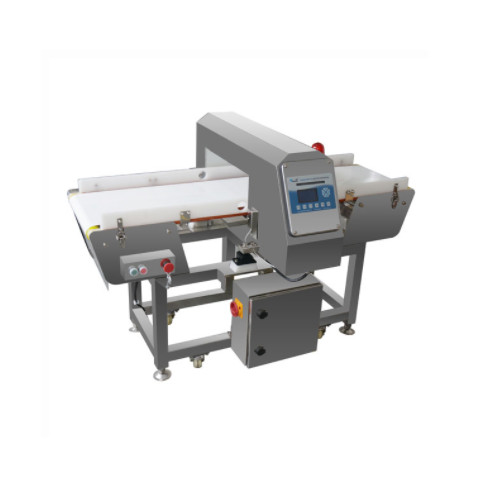

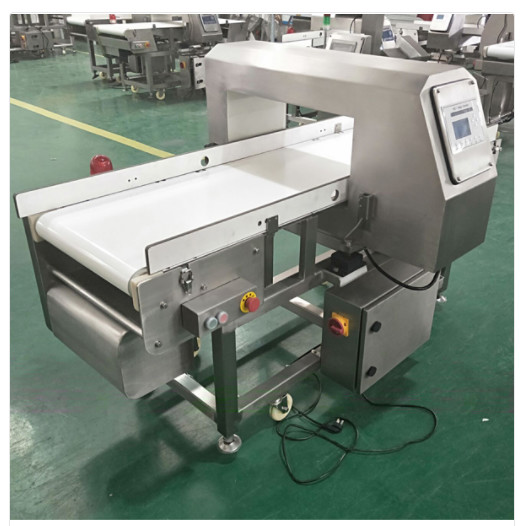

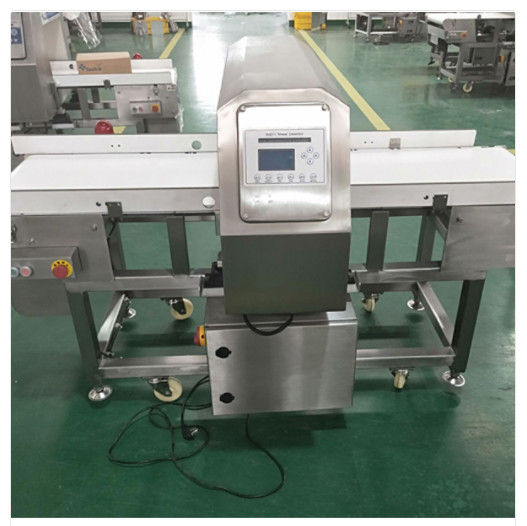

Metal detector can be used in food, pharmaceutical, chemical, textile and garment, toy industry and so on.
| Model | Size of whole machine(mm) | Size of detector(mm) | Sensitivity(mm) | |||||||
| H1 | H2 | L | W | DB | TB | DH | TH | Fe | SUS | |
| 3008 | 7008 | 850 | 1200 | 650 | 300 | 250 | 80 | 50 | 0.5 | 1.0 |
| 3010 | 700 | 870 | 1200 | 650 | 300 | 250 | 100 | 70 | 0.6 | 1.2 |
| 3012 | 700 | 890 | 1200 | 650 | 300 | 250 | 120 | 90 | 0.7 | 1.4 |
| 3015 | 700 | 920 | 1200 | 650 | 300 | 250 | 150 | 120 | 0.8 | 1.5 |
| 4510 | 700 | 900 | 1400 | 750 | 450 | 400 | 100 | 70 | 0.6 | 1.3 |
| 4512 | 700 | 920 | 1400 | 750 | 450 | 400 | 120 | 90 | 0.7 | 1.4 |
| 4515 | 700 | 950 | 1400 | 750 | 450 | 400 | 150 | 120 | 0.8 | 1.5 |
| 5010 | 700 | 900 | 1500 | 850 | 500 | 450 | 100 | 70 | 0.6 | 1.3 |
| 5012 | 700 | 920 | 1500 | 850 | 500 | 450 | 120 | 90 | 0.8 | 1.5 |
| 5015 | 700 | 950 | 1500 | 850 | 500 | 450 | 150 | 120 | 1.0 | 1.5 |
| 5020 | 700 | 1000 | 1600 | 850 | 500 | 450 | 200 | 170 | 1.2 | 2.0 |
| 5025 | 700 | 1050 | 1600 | 850 | 500 | 450 | 250 | 220 | 1.5 | 2.5 |
| 5030 | 700 | 1100 | 1600 | 850 | 500 | 450 | 300 | 270 | 2.0 | 3.0 |
| 6030 | 400 | 800 | 1800 | 950 | 600 | 550 | 300 | 270 | 2.5 | 3.5 |
| 6035 | 400 | 850 | 1800 | 950 | 600 | 550 | 350 | 320 | 3.0 | 4.0 |
| 6040 | 400 | 900 | 2000 | 950 | 600 | 550 | 400 | 370 | 3.5 | 4.5 |
| 6050 | 400 | 950 | 2000 | 950 | 600 | 550 | 500 | 470 | 4.0 | 5.5 |
1. Adopt the theory of balance, more reliable.
2. Phase-adapted technology can adapt products in order to effectively eliminate product effect.
3. Combination of DSP and Microprocessor is applied to process testing data of detection signal, which can enhance detection efficiency.
4. To stop mistaking in transmission & reception in advance, the detector handles many operations. Easy to adjust the detecting parameters.
5. Large LCD display with Chinese & English language and so on; Consumer can choose according to their needs.
6. Have self- learning study function, can automatically digitally learn and store product’s features.Easy to operate without manual participation to adjust technical parameters.
7. It can store more than 100 kinds of testing data of products.
8. Automatic rejection system can be customized according to consumer’s requirements, which can improve production efficiency and save labor cost.
ChangShu SanHe Precision Machinery & Technolgoy Co.,Ltd is a Jiangsu Province Hi-tech Enterprise, a Jiangsu Province Private Science & Technology Enterprise, It is a patented advanced of Jiangsu province. It won Chinese National Private Hi-tech Enterprise Innovation Prize in 2006,
and be already awarded ISO9001-2000 “Certificate of The System of Quality Certification” and “License for manufacturing measuring instruments of the People’s republic of China”(CMC). it has three Jiangsu Province Hi-tech Products . The enterprise has 104 employees , including 28 technicians.
