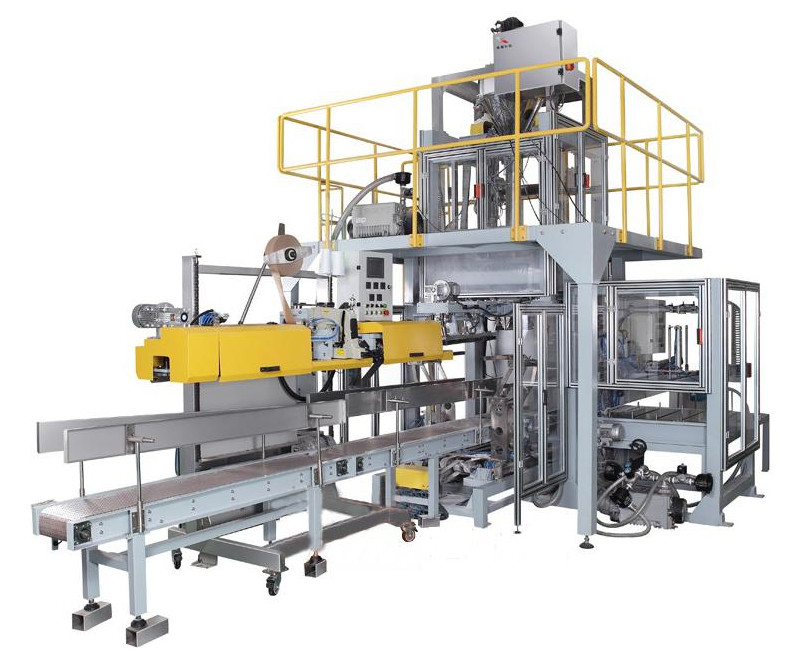

Automatic 10-50kg/Bag Weighing Filling Packing Machine For Wheat Flour Powder
1 Set
MOQ
Negotiation
Price
Automatic 10-50kg/Bag Weighing Filling Packing Machine For Wheat Flour Powder
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: CE, ISO9001:2015
Model Number: OAPL
High Light:

Starch Weighing Filling Packing Machine

,

50kg/Bag Weighing Filling Packing Machine

,

10kg/Bag Industrial Bagging Machine

Payment & Shipping Terms
Packaging Details: wooden pallet
Delivery Time: 120-150 Days
Payment Terms: T/T,
Supply Ability: 3 Set Per Month
Specifications
Name: Wheat Flour Powder Weighing Filling Packing Machine
Speed: 100 - 400 Bags / Hour
Target Weight Per Bag/bottle: 5 Kg To 50 Kg
Voltage: 380/220 V
Packing Accuracy: Better Than 0.1-0.2 % Of Full Scale
Packaging Type: Bags
Application: Flour / Starch
Bag Type: Open Mouth Bag
Product Description

Automatic 10-50kg/bag Wheat Flour Powder Weighing Filling Packing Machine



1 . Wheat Flour Powder Weighing Filling Packing Machine process  :



Automatic giving empty bag - automatic weighing - automatic filling - automatic sewing machine - automatic conveying -automatic robot palletizing stacking;



2 . Wheat Flour Powder Weighing Filling Packing Machine  spefication

Product Name High Quality Wheat Flour Powder Weighing Filling Packing Machine
Packing Material Wooden pallet
Application Materials Powder packaging machine is suitable for packaging powders with little viscosity such as: strong bone powder, milk powder, soy milk powder, cereal, coffee cereal, etc.
Display Resolution 5g, 10g
Weighing Range 10-50kg/bag or customized needs
Precision +/-(0.1-0.2) % FS
Packing Capacity 200-300bags/hour or faster
Dimension(L*W*Hmm) See detailed drawing, the size can be customized according to your site
Power Supply AC220V/380V, 50HZ, 1P/3P (or depend on customer's power)
Air Source 0.4-0.6 Mpa
Power 1.3 KW
Working Temperature -10~40 ºC
Relative Humidity ≤90% RH(Non-condensing)


3. Wheat Flour Powder Weighing Filling Packing Machine features:
1). High precision: high precision weighing controller is adopted, and the reliability is good.
2). Good overall: small footprint, flexible installation.
3). Overcome the inconsistency caused by the sticky material caused by the large moisture, and the weighing problem caused by the problem.
4). Adjustable speed: the feeding method of powder type equipment is spiral feeding, fast feeding and slow feeding are realized by controller, and the feeding speed can be set arbitrarily.
5). Environmental protection operation: Close the internal circulation system to effectively prevent dust from flying, improve the working environment and protect the health of employees.
6). Reasonable structure: compact structure, small size, can be made into fixed or mobile body according to user requirements.
7). Optional: You can purchase the folding machine, automatic sewing machine and de-dusting machine.




How Wheat Flour Powder Weighing Filling Packing Machine works :

After the bag clamping signal is input, the material is added into the "weighing bucket" (composed of bag clamping mechanism and packaging bag) by the feeding mechanism (double auger). After receiving the weight signal from the sensor, the controller controls according to the preset program value. After opening the material cutting door, the fast (double auger at the same time) feeding is carried out. When the weight is ≥ (target value - fine metering value), the large auger stops feeding and enters the slow (small auger) feeding; When the weight is ≥ (target value - overshoot value), the small winch stops feeding, the cutting door is closed, and the constant value weighing is completed. After the automatic bag vibrating (optional action), the material bag will be released automatically and fall into the conveyor belt. It will be sent to the sewing machine to sew the bag and then enter the next process


Automatic take empty bag, automatic put on empty bag, automatic filling and weighing, automatic sealing bag mouth, automatic conveying transfer, automatic printing code,  automatic palletizing stacking



Wheat Flour Powder Weighing Filling Packing Machine  Advantages :

Save labor,

Standardized production,

Less dust,

High precision, reduce manual errors,



Automatic 10-50kg/Bag Weighing Filling Packing Machine For Wheat Flour Powder 0



  
