DCS-1000 (PB2G)-BW-TML Ton Bag Packing Machine

DCS-1000 (PB2G)-BW-TML Ton Bag Packing Machine

DCS-1000 (PB2G)-BW-TML Ton Bag Packing Machine
  • DCS-1000 (PB2G)-BW-TML Ton Bag Packing Machine
Product Details:
Place of Origin: China
Brand Name: Sanhe
Certification: ISO9001:2000. CE
Model Number: DCS-1000W
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wood pallet , The pallet size is customized according to different products
Delivery Time: Negotiable
Payment Terms: T/T
Supply Ability: 90 Sets Per Month
Contact Now
Detailed Product Description
Product Name: Ton Bag Weighing Packing Machine Power KW: 3 KW
Automatic Grade: Semi Automatic Warranty: 1 Year
Measuring Ability: 250-1500 Kg Operator: 1-2 Stuff
Service After Warranty: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service Materials: Carbon Steel , Partical / Powder Contact Part Is Stainless Steel
High Light:

40Bags/H Jumbo Bag Packing Machine

,

Gravity Feeding Jumbo Bag Packing Machine

,

ISO9001 Bulk Bag Packing Machine

DCS-1000 (PB2G)-BW-TML Ton Bag Packing Machine

Feeing type : vibrating / belt / air flow



Working principle of ton bag electronic packing scale machine :

When the ton bag electronic packing scale machine enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;



At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.



The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.



The parameter and function :

Suitable Materials FIBC Bulk Bags /ton Bag /jumbo Bag Weighing Packing Machine
Suitable Packing Container Big Bag / Ton bag
Weighing Range 1500 Kgs
Packing Speed

10 bags/Hour to 40 bags/Hour

Packing Accuracy Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)







Our Services :
1. one year guarantee for whole machine except for wear parts;
2. 24 hours technical support by email;
3. calling service;
4. user manual available;
5. reminding for the service life of the wearing parts;
6. installation guide for clients from both China and abroad;
7. maintance and replacement service;
8. whole process trainling and guidance from our technicians.High quality of after-sales service symbolizes our brand and ability. We pursue not only good quality products, but also best after sales service. Your satisfaction is our final purpose.




FAQ :
1. Are you a trading company or a factory?
--- We are factory sell directly, and welcome to visit our factory in Changshu city,Suzhou,Jiangsu Province China.


2. Can you guarantee the quality of your valve bag packing machine?
--- We have passed CE & ISO9001:2015, and our packing machines have been shipped to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc.


3. How many years have you been manufacturing this machine?
--- Since the foudation of our company 1998 , we have been manufacturing the machine, which updated many times, now the machine runs stable and of high quality.



95% of China Silica ( white carbon black ) factory use our packing scale machine.



function table of our ton bag weighing packing machine.



DCS-1000(GB7G)-BW



DCS-1000(GB7G)-BW-TV

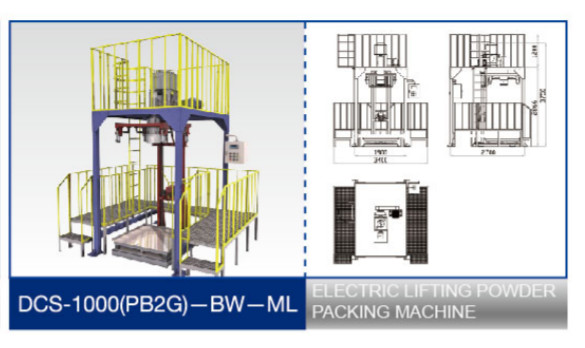

DCS-1000(PB2G)-BW-ML



DCS-1000(PB2G)-TW-CL





Scope of application



Suitable materials



Granular material with fine flowability



Granular and columnar material or powder material with fine flowability



Granular and columnar material or powder material with fine flowability



powder and schistose material



Feeding type



Gravity



Gravity



Screw



Screw



Alternative feeding type



Vibrating , belt



Vibrating , belt



Vibrating , belt, airflow



Vibrating , belt, airflow



Technical parameters

Weighing range

( Kg)

1500 1500 1500 1500
Packing speed(bag/H) 10-40 10-60 5-20 5-20
Packing Accuracy Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)
Control function
Automatic tare
Automatic quick and slow feeding
Automatic free fall compensation
Automatic minus deviation
Automatic over weight alarms
Automatic self diagnosis failure
Manual/Automatic mode conversation
Communication port
Regulatory function
Manual adjusting the height of bag
Automatic adjusting the height of bag
Manual adjusting the width of bag



Important auxiliary function

Automatic blow bag in advance function



Arch break function of hopper

× ×



pothook automatic release function



Vibration at the top of the bag

× ×



Vibration at the bottom of the bag



Powder protection



Inflatable seal



Negative pressure dusting(not contain duster)



Valve for leak-proof



Vibrating leak-proof function



Safety protection



Electrostatic grounding



ionic wind remove static



Stop packing when lose power



Emergency stop



Ex-proof



Mark: “○”is standard function;“▲”is choose function ;“×”is not has function



Main specialty

* Suit for granule and powder material use big bag packing.

* Can made into semi-packing and palletizing line with pallet magazine, conveyors, weight checker, rejecter etc.





Main sub-suppliers of rubber weighing packing machine :





Name OF Outsourcing



Sub-suppliers



Load Cell



Zhong Dian Hang CE

Or Mettler Toledo (main control cabinet)



PLC



Mitsubishi (main control cabinet)



Pneumatic Equipment



AIRTAC



Electrical components



Schneider ( main control cabinet )



Utilities ( provided by buyer ):

(1)Power
AC380V±10%;50Hz±2%(three phase and five wires),~5 Kw

(2)Compressed Air:
Pressure: 0.55~0.7 Mpa;
Consumption: 0.3N m3/min;

(3) De-dusting
Negative pressure:6-8pa
Blowing rate: 1800m³/H

(4)Temperature: -5- + 50 (℃)

(5)Relative humidity:≤90% (no coagulation water)





our rubber weighing packing machine Advantage : Fast packing speed , high precision, less dust







Advantage : Fast packing speed , high precision, less dust





Our hot sale products :



1. 25 kg automatic ( open mouth bag ) packing & palletizing line,



2. 25 kg automatic ( valve type bag ) packing & palletizing line,



3. ton bag packing machine.



4. liquid filling machine (10L-50L;/ 50L-250L; / 1500L)



95% of china white carbon black factory use our packing machine
