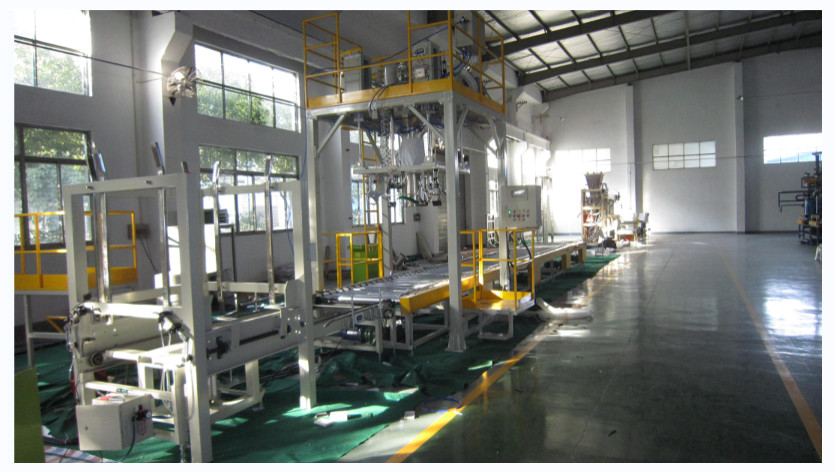

Chemical Raw Materials Bulk Bag Weighing Packing Machine / Jumbo Bag Packing Machine 500kg To 2000kg
Application:
This machine is applicable to weighing of Sintered Tabular Alumina, Bauxite, Mullite, White Fused Alumina, Brown Fused Alumina, Silicon Carbide, Fluorspar etc that are granular material, and quantitative packing of finished products or semi-finished products from the industry of cereals, chemical, Light Manufacturing & Foodstuffs, etc.
Characteristics:
1. Automatic weighing, filling and packing for granular material;
2. Precise weighing and bagging;
3. All automatic control of fast and slow intake, weighing and letting down of the bag
4. All the working parameters are input on the mimic panel;
5. Auto minus of the weight and auto zero resetting:
6. The imported intellective weighing instrument can display the gross weight and net weight at the same time;
7. Automatic test and correct the weighing errors;
8. It can be connected to the computer for rational management of production
Series Features:
1. New controller with high precision,working stable, can display the total weight,number of package, easy operation.
2. The adaptive software,having the function of automatic control parameters setting, automatic drop revising,over - weight warning and auto-diagnosis.
3. Wide packing range, high precision, it can match well with conveyor and sewing machine.
4. Products using imported sensor, pneumatic actuator, easy maintenance and non-pollution.
5. The main material body is carbon steel, with painted plastic. And material contact part is stainless iron , corrosion resistance, long service life.
6. Communication interface can be offered if need, realization of data communication with PC.
Working principle:
material is fed by gravity-type feeder,and material will enter into weighing system uniformly throungh gravity-type feeder from stock bin or production line. The gravity-type feeder starts to run after turning on packing machine and then material will be filled into weighing hopper, through weighing hooper filled into bag. When weight reaches the preset value, the gravity-type feeder will stop,running. Operators takes filled bag away, or put it on belt conveyor to sewing machine, the whole packing process finishes.
Technical parameters:
| Product Name |
Belt feeding mechanism jumbo/bulk/ton/FIBC bags packing filling bagging machines |
| Item | DCS-1000 |
| Application Materials | Flake, lump, block, aggregation, mixture materials, such as gravel, pebble, stone, manure, organic fertilizer, soil, sawdust, animal feed(big size/ mixture), coal briquette, aluminum sulfate etc |
| Display Resolution | 5g, 10g |
| Weighing Range | 500-2000kg/bag or customized needs |
| Precision | +/-(0.2)% FS |
| Packing Capacity | 5-15 bags/hour or more fast depends on your materials. |
| Dimension(L*W*Hmm) | 1840*1840*4500mm, See detailed drawing, the size can be customized according to your site |
| Power Supply | AC220V/380V, 50HZ, 1P/3P |
| Air Source | 0.5-0.7 Mpa |
| Power | 3KW-6KW |
| Working Temperature | -10~40 ℃ |
| Relative Humidity | ≤90% RH(Non-condensing) |
