DCS-1000 (PB2G)-TW-CL Ton Bag Weighing Packing Machine

DCS-1000 (PB2G)-TW-CL Ton Bag Weighing Packing Machine

DCS-1000 (PB2G)-TW-CL Ton Bag Weighing Packing Machine
  • DCS-1000 (PB2G)-TW-CL Ton Bag Weighing Packing Machine
Product Details:
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: ISO9001:2015, CE
Model Number: DCS-1000 (PB2G)-TW-CL Ton Bag Packing Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wood Pallet
Delivery Time: Negotiable
Payment Terms: T/T
Supply Ability: 30 Sets Per Month
Contact Now
Detailed Product Description
Product Name: Automatic Weighing Packing Sealing Machine Packing Speed: 10-60 Bags Per Hour
Air Source Consumption: 6 Kg Accuracy: Generally (+/- ) 0.2%
Suitable For Material: Granular / Powder / Flake Materials Weighing Range(kg): 500-2000 Kg
High Light:

jumbo bag filling machine

,

big bag filling machine

DCS-1000 (PB2G)-TW-CL Ton Bag Weighing Packing Machine

Feeding type : by screw



A. What is Ton Bag Weighing Packing Machine :

Ton Bag Weighing Packing Machine consists of weighing unit, feeding unit , Unloading mechanism,



conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.



Suitable Material : Granular / Powder / flake materials



Suitable Packing Container :   Bulk Bag



Packing speed  10-60 bag / hour
Capacity range  500-2000 kgs / bag
Accuracy  Generally+-0.2% (note:special materials shall depend on the industrial standard)
power voltage  380VAC 50Hz
power  7.5KW
Positive air pressure  0.5-0.8MPa
Negative air pressure  -0.075~-0.093MPa
temperature  -10-40ºC
relative humidity  ≤80%





Ton Bag Weighing Packing Machine FAQ  :



Q1: How could I choose the right packing machine?

A: We have various item of packing machine to suit for pack different materials(products), just let us know your product and requirement, we will choose the suitable item and make a drawing for you to confirm. Also your customize design are availbale, we have nearly 20 person engineers team and R&D team.



Q2: What's service you can provide if we buy your machine?

A:

1, One year quality guaranteed, during this guarantee period, no matter what’s kind of parts damaged, we will provide free change for you. All equipment for more than a year warranty, exchange of damaged parts, only charge a cost of spare parts.



2, We will provide you the guide service on the operation of the machine.



3, If required, we will dispatch technician to your country for installation guide, commissioning& adjusting the machine and training the workers on conditon that you need affords all cost from China to your company including food, accommodation, transportation etc and extra USD 190 per day per perople .



Q3: What is your terms of delivery?

A: EXW, FOB, CFR, CIF



Q4: What's your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.



Q 5: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.



Q6: How about your delivery time?

A: Generally, it will take 110 days for semi-automatic machine, 150 days for full automatic line, after receiving your advance payment. The specific delivery time depends on the

items and the quantity of your order.

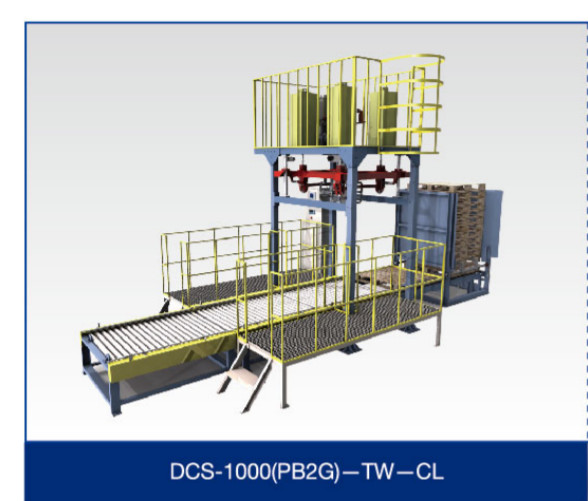

DCS-1000 (PB2G)-TW-CL Ton Bag Weighing Packing Machine 0


DCS-1000 (PB2G)-TW-CL Ton Bag Weighing Packing Machine 1



         Function table of the Big bag packer :



DCS-1000(GB7G)-BW



DCS-1000(GB7G)-BW-TV



DCS-1000(PB2G)-BW-ML



DCS-1000(PB2G)-TW-CL





Scope of application



Suitable materials



Granular material with fine flowability



Granular and columnar material or powder material with fine flowability



Granular and columnar material or powder material with fine flowability



powder and schistose material



Feeding type



Gravity



Gravity



Screw



Screw



Alternative feeding type



Vibrating , belt



Vibrating , belt



Vibrating , belt, airflow



Vibrating , belt, airflow



Technical parameters

Weighing range

( Kg)

1500 1500 1500 1500
Packing speed(bag/H) 10-40 10-60 5-20 5-20
Packing Accuracy Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)
Control function
Automatic tare
Automatic quick and slow feeding
Automatic free fall compensation
Automatic minus deviation
Automatic over weight alarms
Automatic self diagnosis failure
Manual/Automatic mode conversation
Communication port
Regulatory function
Manual adjusting the height of bag
Automatic adjusting the height of bag
Manual adjusting the width of bag



Important auxiliary function

Automatic blow bag in advance function



Arch break function of hopper

× ×



pothook automatic release function



Vibration at the top of the bag

× ×



Vibration at the bottom of the bag



Powder protection



Inflatable seal



Negative pressure dusting(not contain duster)



Valve for leak-proof



Vibrating leak-proof function



Safety protection



Electrostatic grounding



ionic wind remove static



Stop packing when lose power



Emergency stop



Ex-proof



Mark: “○”is standard function;“▲”is choose function ;“×”is not has function





Main sub-suppliers:

Name OF Outsourcing Sub-suppliers
Weighing Controller Uniplus F701 / Zhi Mei or Jie Man
Load Cell Mettler Toledo / Zhong Dian Hang Ce
PLC Mitsubishi

Touch panel

( option )

Mitsubishi

Fold edge sewing machine

( option )

De chao
Pneumatic Equipment FESTO or SMC or airtac
Solenoid valve FESTO or SMC or airtac
Photoelectric switch Autonics
Metal detector ( option ) METRON German
Robot ( option ) FUJI EC-102
Motor Wan Nan
Sewing machine ( option ) De Chao
Electric cabinet Tong Ke
General Electric Component SCHNEIDER





Utilities ( provided by buyer )



1. Power:

AC380V±10%;50Hz±2%(three phase and five wires);



2. Compressed Air:

Pressure: 0.55~0.7 Mpa;

Consumption: 0.3N m3/min;



3. Temperature: -10- +50(℃)



4. Relative humidity: ≤90% (no coagulation water)



5. De-dusting

Negative pressure:6-8 pa

Blowing rate: 1800m³/H



Advantage : Fast packing speed , high precision, less dust



Warranty : 1 year



After Warranty Service:

Video technical support, Online support, Spare parts, Field maintenance and repair service



Main specialty.

*Suit for granule and powder material use big bag packing.

*Can made into semi-packing and palletizing line with pallet magazine, conveyors, weight checker, rejecter etc.



Please Send us The Details for The Packing Scale Machine Plan :
1. Name of Material to Be Filled in Bag?
2. Weight Capacity of Single Bag ?
3. How Much Bag Fill Per Hour?
4. Your Materials Characte?

95% of China Silica (white carbon black) factory use our packing scale machine.
