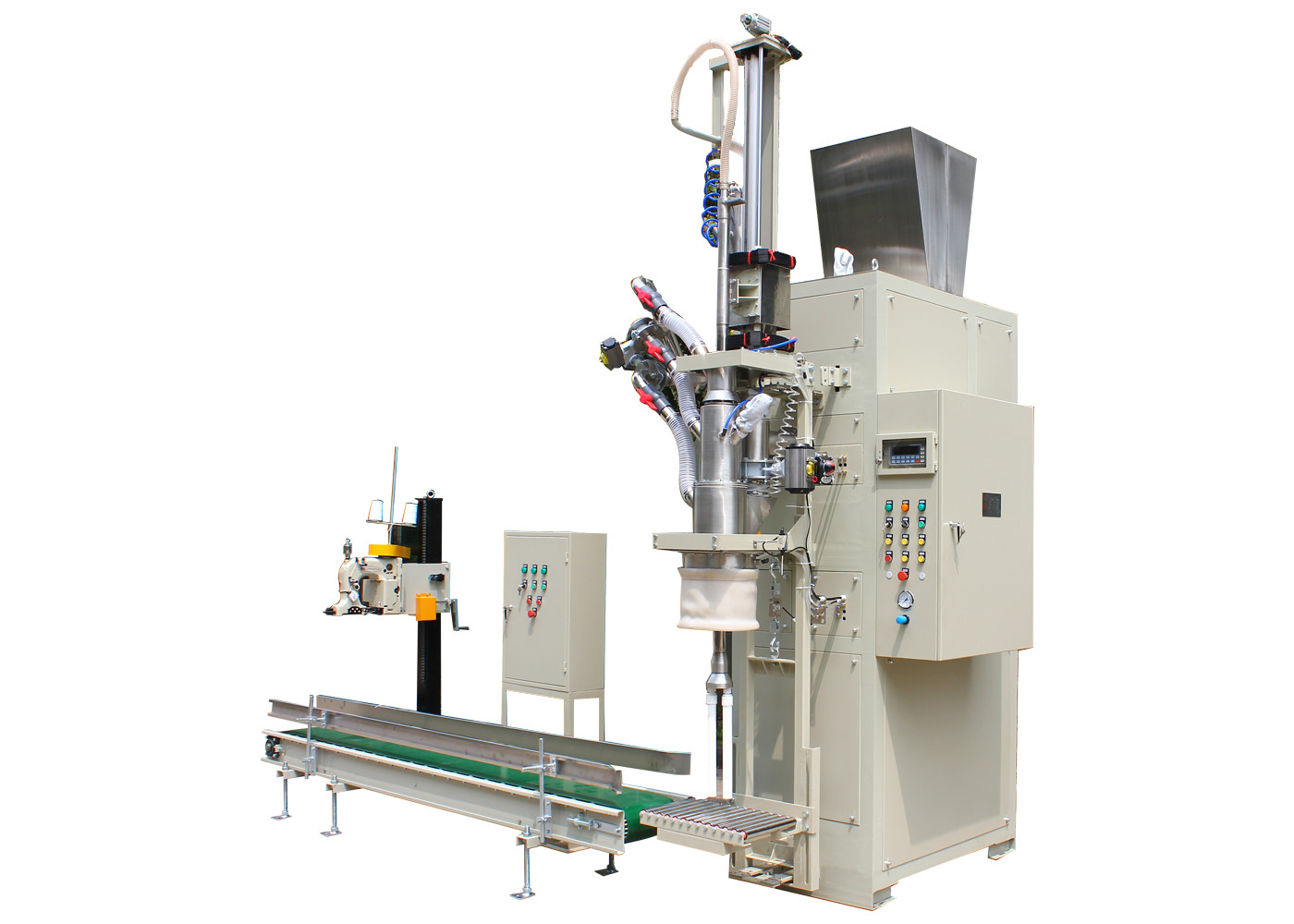

Valve bag 25Kg Super fine powder packing scale machine
95% of China Silica ( white carbon black ) factory use our packing machine.
What is 25 kg electronic packing scale:
Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.
Function table of our valve bag weighing filling packing machine :
|
DCS-25PV1(1) (exhausting type) |
DCS-25PV1(2) (screw type) |
DCS-25PV1(3) (airflow type) |
DCS-25PV1(5) (horizontal impeller) |
DCS-25PV1(6) (vertiacl impeller) |
|
|
Scope of application |
|||||
|
Suitable materials |
Powder and ultrafine powder of good Air affinity |
Powder and thin granule |
Powder and thin granule |
Powder and ultrafine powder |
Powder and ultrafine powder |
|
Suitable packing container |
Upper and lower spiral air supply | single screw | air flow | Horizontal impeller | Vertical impeller |
|
Technical parameters |
|||||
|
Weighing range(Kg) |
10-50 | 10-50 | 10-50 | 10-50 | 10-50 |
|
Packing speed(bag/H) |
30-180 | 30-120 | 30-200 | 30-250 | 30-250 |
|
Packing Accuracy |
Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard) |
||||
|
Control function |
|||||
|
Automatic tare |
○ | ○ | ○ | ○ | ○ |
|
Automatic quick and slow feeding |
○ | ○ | ○ | ○ | ○ |
|
Automatic free fall compensation |
○ | ○ | ○ | ○ | ○ |
|
Automatic minus deviation |
▲ | ▲ | ▲ | × | × |
|
Automatic over weight alarms |
○ | ○ | ○ | ○ | ○ |
|
Automatic self diagnosis failure |
○ | ○ | ○ | ○ | ○ |
|
Manual/Automatic mode conversation |
○ | ○ | ○ | ○ | ○ |
|
Communication port |
▲ | ▲ | ▲ | ▲ | ▲ |
|
|
|||||
|
Manual adjusting the height of bag |
○ | ○ | ○ | ○ | ○ |
|
Suit for open and valve bag function |
▲ | ▲ | ▲ | ▲ | ▲ |
|
Important auxiliary function |
|||||
|
Blow bag function in advance |
○ | ▲ | ○ | ○ | ○ |
|
Arch break function of hopper |
○ | ○ | ○ | ○ | ○ |
|
Vibration at the bottom of the bag |
○ | ○ | ○ | ○ | ○ |
|
Powder protection |
|||||
|
Inflatable seal |
▲ | × | ▲ | × | × |
|
Negative pressure dusting(not contain duster) |
○ | ○ | ○ | ○ | ○ |
|
Automatic blow valve mouth |
○ | × | ○ | ▲ | ▲ |
|
Safety protection |
|||||
|
Electrostatic grounding |
▲ | ▲ | ▲ | ▲ | ▲ |
|
|
▲ | ▲ | ▲ | ▲ | ▲ |
|
Stop packing when lose power |
○ | ○ | ○ | ○ | ○ |
|
Emergency stop |
○ | ○ | ○ | ○ | ○ |
|
Ex-proof |
▲ | ▲ | ▲ | ▲ | ▲ |
|
Mark: “○”is standard function；“▲”is choose function ；“×”is not has function |
|||||
main features:
*valve bag packing for Powder and ultrafine powder.
*Can be twin-type packer
*Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.
a. what the powder or partical will to be packed ?
b. how many kg per bag ?
c. how many bags per hour ( packing speed )?
d. what is the weight +- tolerance ? +- how many gram per bag ?
