Fine chemical industry 25 Kg Semi-Automatic Weighing Packing Machine
A. What is 25 kg electronic packing scale:
Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.
B. Working principle of 25 kg electronic packaging scale:
When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;
At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.
The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.
C. Generally, a packing & palletizing line includes: Electric Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor ,Robot, Wrapping Machine ,Finished palletizing conveyor.
D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine

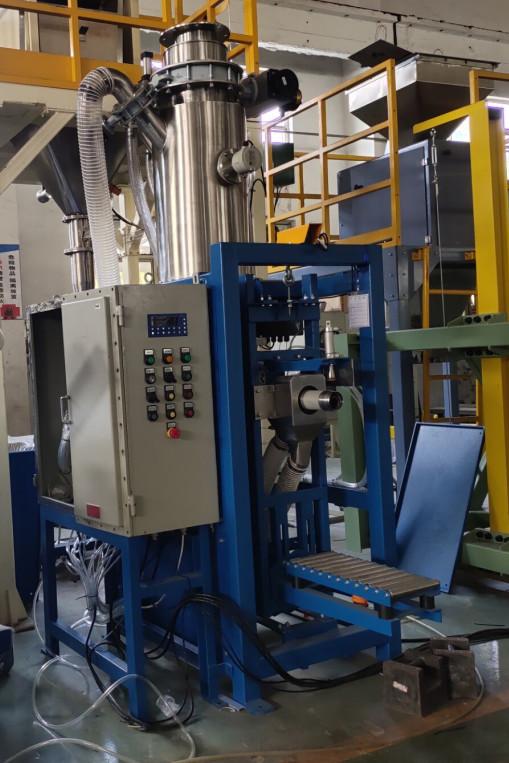

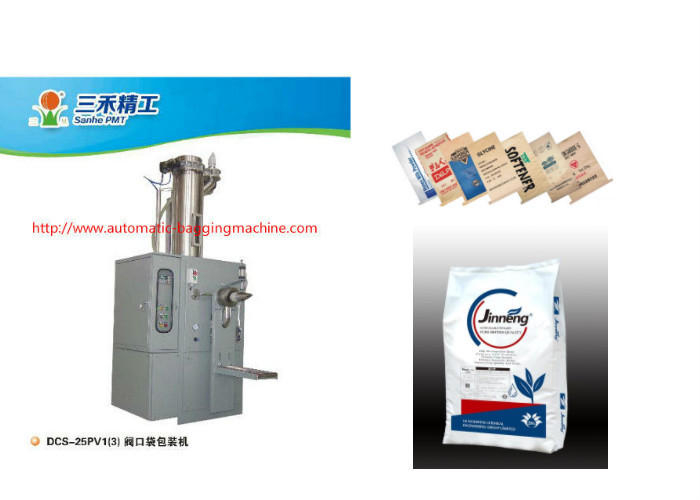

| DCS-25PV3 ( airflow type ) Weighing Packing Machine | |
| Scope of application | |
| Suitable materials | Fine chemical industry 25 Kg Semi-Automatic Weighing Packing Machine |
| Suitable packing container | valve type bag |
| Technical parameters | |
| Weighing range(Kg) | 25 kg |
| Packing speed(bag/H) | 60 - 200 bags ( 25 kg / bag ) |
| Packing Accuracy | Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard) |
Product characteristics :
1. Multi-stage frequency conversion design, high packaging accuracy.
2. The core rotating parts are cast with a wall thickness of more than 10 mm. They are durable and non-deformable, and have excellent stability.
3. It can be equipped with explosion-proof control system to meet the packaging requirements of conductive materials.
4. Dust-free operation, low noise, no spillover, reduce powder consumption.
5. Adopt imported electronic weighing system, machine automatic metering, automatic blanking, automatic shutdown.
6. After three independent quality inspections, there are more than 50 main inspection standards to strictly guarantee the quality of the products.
7. The technology is mature and the failure rate is low.
Advantages of our Fine chemical industry 25 Kg Semi-Automatic Weighing Packing Machine :
High accuracy
Easy clean out and maintence
After the machine installs you get hands on training and documentation
The air flow feed system is capable of high production rates while maintaining good accuracies.
Operator friendly easy set
Universal and industrial components give the machinery extra long life
Manufactured to comply above and beyond international standards
PLC controller interface
The flexible and modular Packaging System
FAQ :
The follwing questions for us to help you find what you want ?
1, The material you want to pack and its size(μm, mm), bulk density(kg/m3)
2, Packing weight (kg/bag), capacity (t/day)
3, Detailed description of production line
Main sub-suppliers:
| Name OF Outsourcing | Sub-suppliers |
| Weighing Controller | Uniplus F701 / Zhi Mei or Jie Man |
| Load Cell | Mettler Toledo / Zhong Dian Hang Ce |
| PLC | Mitsubishi |
| Touch panel ( option ) | Mitsubishi |
| Fold edge sewing machine | De chao |
| Pneumatic Equipment | FESTO or SMC or airtac |
| Solenoid valve | FESTO or SMC or airtac |
| Photoelectric switch | Autonics |
| Metal detector | METRON German |
| Robot | FUJI EC-102 |
| Motor | Wan Nan |
| Sewing machine | De Chao |
| Electric cabinet | Tong Ke |
| General Electric Component | SCHNEIDER |
Utilities ( provided by buyer )
1. Power:
AC380V±10％；50Hz±2%(three phase and five wires)；
2. Compressed Air:
Pressure: 0.55~0.7 Mpa；
Consumption: 0.3N m3/min；
3. Temperature: -10- +40(℃)
4. Relative humidity: ≤90% (no coagulation water)
5. De-dusting
Negative pressure:6-8 pa
Blowing rate: 1800m³/H
Advantage : Fast packing speed , high precision, less dust
Our hot sale products :
1. 25 kg automatic ( open mouth bag ) packing & palletizing line,
2. 25 kg automatic ( valve type bag ) packing & palletizing line,
3. ton bag packing machine.
4. liquid filling machine (10L-50L;/ 50L-250L; / 1500L)
95% of china white carbon black factory use our packing machine
