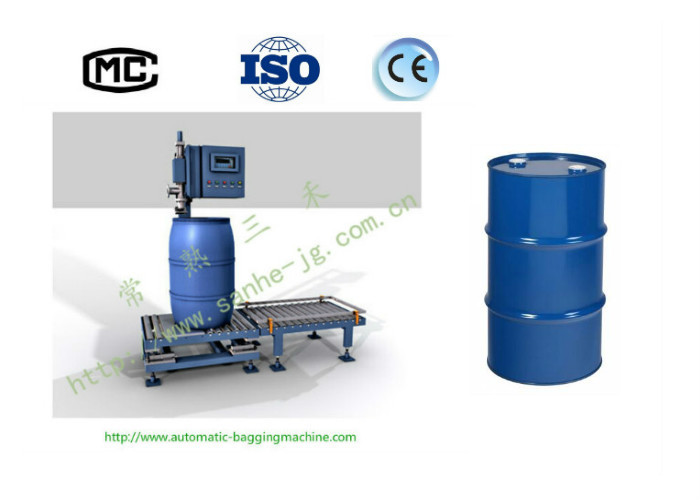

DCS-250L(STW) Liquid Filling Machine
Function: Liquid filling Weighing Packing
Main characteristic of our Filling Machine
The composition of single line filling machine production line to improve yield.
|
DCS-250L(STW) Liquid filling machine(drum upon liquid surface filling)
|
Scope of application
|
|
Suitable materials
|
50-250L
|
Feeding type
|
Upon liquid surface filling
|
Alternative feeding type
|
×
|
Technical parameters
|
|
Maximum weighing(Kg)
|
500
|
Filling speed(pails/H, cans/H, drums/H IBCs/H)
(dimension of filling lance is DN40, Material supply speed must more than 208L/H)
|
60
(200liter/drum)
|
Filling accuracy
|
Generally (+/- )0.2%(Note:1,if material supplying not instability will effect to filling accuracy.2, special material according to industrial standard)
|
Advantages of our Filling Machine:
High accuracy
Easy clean out and maintence
After the machine installs you get hands on training and documentation
The air flow feed system is capable of high production rates while maintaining good accuracies.
Operator friendly easy set
Universal and industrial components give the machinery extra long life
Manufactured to comply above and beyond international standards
PLC controller interface
The flexible and modular Packaging System
FAQ of our Filling Machine
The follwing questions for us to help you find what you want ?
1, The material you want to pack and its size(μm, mm), bulk density(kg/m3)
2, Packing weight (kg/bag), capacity (t/day)
3, Detailed description of production line
Our core products is :
Big bag packing machine. 5kg-50kgs.
Ton bag pack machine.
Ton bag discharger.
10L-1000L liquid filling machine.
Palletizing Line.
It sales well in China and overseas market.
Sanhe--A wellknown packing and palletizing manufacture from China
The parameter and function table of liquid filling machine
DCS-50L(STW) Liquid filling machine(can or pail upon liquid surface filling) |
DCS-250L(STW) Liquid filling machine(drum upon liquid surface filling) |
DCS-1500L(SUW-P) Liquid filling machine(drum or IBC under liquid surface filling) |
DCS-1500L(BTW) Liquid filling machine(IBC upon liquid surface filling) |
|
Scope of application |
||||
Suitable materials |
10-50L |
50-250L |
100-250L |
IBC |
Feeding type |
Upon liquid surface filling |
Upon liquid surface filling |
Under liquid surface filling |
Upon liquid surface filling |
alternative feeding type |
Under liquid surface filling |
× |
Upon liquid surface filling |
Under liquid surface filling |
Technical parameters |
||||
Maximum weighing (Kg) |
100 | 500 | 1500 | 1500 |
Filling speed(pails/H, cans/H, drums/H IBCs/H)(dimension of filling lance is DN40, Material supply speed must more than 208L/H) |
200-300 (30liter/ pail , 30liter/can) |
60
200liter/drum |
60
200liter/drum |
15
1000liter/IBC |
Filling accuracy |
Generally (+/- )0.2%(Note:1,if material supplying not instability will effect to filling accuracy.2, special material according to industrial standard) |
|||
Control function |
||||
Automatic tare |
○ | ○ | ○ | ○ |
Automatic quick and slow feeding |
○ | ○ | ○ | ○ |
Automatic free fall compensation |
○ | ○ | ○ | ○ |
Automatic minus deviation |
○ | ○ | ○ | ○ |
Automatic over weight alarms |
○ | ○ | ○ | ○ |
Manual/Automatic mode conversation |
○ | ○ | ○ | ○ |
Communication port |
▲ | ▲ | ▲ | ▲ |
|
||||
Adjusting the height of filling lance function |
○ | ○ | ○ | ▲ |
horizontal slip filling lance function |
× | ▲ | ○ | ▲ |
Filling protect function |
||||
Self protection when the filling lance not in the right position to filling |
× | × | ○ | ▲ |
If there is no pail, can, drum or IBC, filling machine not filling. |
○ | ○ | ○ | ○ |
Automatic anti-leaking |
▲ | ▲ | ○ | ▲ |
Time control to prevent spilling |
▲ | ▲ | ▲ | ▲ |
Liquid level detecting to prevent spilling |
▲ | ▲ | × | × |
Safety protection function |
||||
Air exhausting |
▲ | ▲ | ○ | ▲ |
Filling Nitrogen |
× | × | ▲ | ▲ |
electrostatic grounding |
▲ | ▲ | ▲ | ▲ |
Protection function when lose power |
○ | ○ | ○ | ○ |
Emergency stop |
○ | ○ | ○ | ○ |
EX-proof function |
▲ | ▲ | ▲ | ▲ |
Mark: “○”is standard function;“▲”is choose function ;“×”is not has function |
