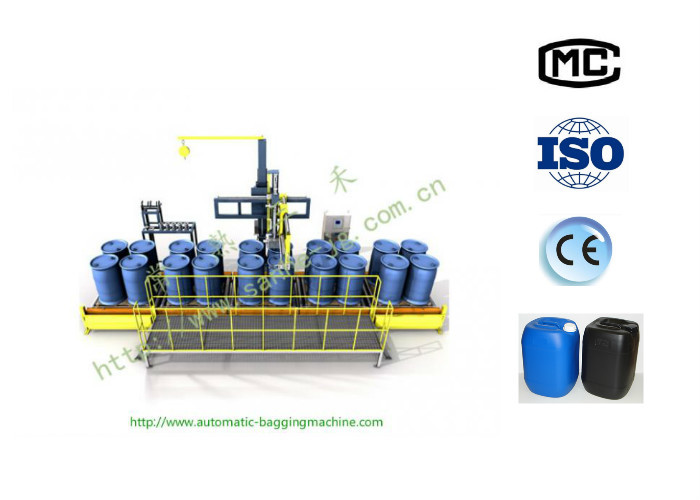

DCS-1500L(SUW-P) Liquid weighing filling packing line automatic filling & palletizing line
Main characteristic :
The composition of single line filling machine production line to improve yield.
|
|
DCS-1500L(SUW-P) Liquid filling machine(drum or IBC under liquid surface filling)
|
|
Scope of application
|
|
|
Suitable materials
|
100-250L
|
|
Feeding type
|
Under liquid surface filling
|
|
Alternative feeding type
|
Upon liquid surface filling
|
|
Technical parameters
|
|
|
Maximum weighing(Kg)
|
1500
|
|
Filling speed(pails/H, cans/H, drums/H IBCs/H)
(dimension of filling lance is DN40, Material supply speed must more than 208L/H)
|
60
(200liter/drum)
|
|
Filling accuracy
|
Generally (+/- )0.2%(Note:1,if material supplying not instability will effect to filling accuracy.2, special material according to industrial standard)
|
FAQ :
Q: Can your machine be customized ?
A: Yes, we are a professional manufacturer specilized in palletizing robot, packaging machine, conveyor etc. for more than 20 years and we have a strong design & technical team. We can design and manufacture as per your requirements.
Q: How to get an accurate quotation ?
A: Please provide us the detail of the workpiece such as drawing and dimensions.
Q: What’s the shipping cost from China to your country ?
A: We can send machine to your port by sea or other term you need. Please kindly tell us your nearest port or address. We have reliable shipping agent to ensure the safe, convenient and timely delivery.
Q: Payment terms, MOQ, warranty, Trade Terms
A: Payment terms: down payment against order by T/T, the balance to be paid on delivery.
Minimum order quantity: 1 set, FOB Shanghai
Delivery time: fast delivery after the deposit.
Warranty: 12 months following delivery. We offer online service 24 hours all day long.
You can contact us any time, if urgently, please call us.
Q: what’s the package ?
A: Most of goods are packed in wooden pallet.
Q: Do you offer Installation & debugging?
A: Our engineers are available to service machinery overseas to help customers to solve machine problems.
Q: What’s policy for guarantee and broken parts ?
A: As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
Our core products is :
Big bag packing machine. 5kg-50kgs.
Ton bag pack machine.
Ton bag discharger.
10L-1000L liquid filling machine.
Palletizing Line.
It sales well in China and overseas market.
Sanhe--A wellknown packing and palletizing manufacture from China
Automatic filling & Palletizing line
The parameter and function table of liquid filling machine
|
DCS-50LSTW -AL DCS-50LSTW –AL can liquid filling line(big filing mouth upon liquid surface filling) |
DCS-250LSUW -AL DCS-250LSUW –AL drum liquid filling line(small filling mouth under liquid surface fillingv) |
|
|
Scope of application |
||
|
Suitable materials |
10-50 liter |
50-250 liter |
|
Feeding type |
Upon liquid surface filling |
Under liquid surface filling |
|
alternative feeding type |
Under liquid surface filling |
Upon liquid surface filling |
|
Technical parameters |
||
|
Number of filling machine |
1 | 1 |
|
Maximum weighing (Kg) |
100 | 500 |
|
Filling speed(pails/H, cans/H, drums/H IBCs/H)(dimension of filling lance is DN40, Material supply speed must more than 208L/H) |
200-300
(30liter/can)(signal filling machine) |
60
(200liter/drum) |
|
Filling accuracy |
Generally (+/- )0.2%(Note:1,if material supplying not instability will effect to filling accuracy.2, special material according to industrial standard) |
|
|
Automatic process |
||
|
Automatic supplying can or drum |
○ | ○ |
|
Automatic position |
○ | ○ |
|
Automatic finding filing hole |
○ | ○ |
|
Automatic tare |
○ | ○ |
|
Automatic filling |
○ | ○ |
|
Automatic transport filled can or drum |
○ | ○ |
|
Automatic position filled can or drum |
○ | ○ |
|
Automatic supplying cap |
○ | × |
|
Automatic sealing cap |
○ | × |
|
Automatic supplying empty pallet |
○ | ○ |
|
Automatic stacking |
○ | ○ |
|
Manual working progress |
||
|
Put empty can or drum into can or drum magazine |
○ | ○ |
|
Put empty cap into cap supplying machine |
○ | × |
|
Manual sealing the cap |
× | ○ |
|
Put empty pallets into pallet magazine |
○ | ○ |
|
Filling protect function |
||
|
Self protection when the filling lance not in the right position to filling |
× | ▲ |
|
If there is no pail, can, drum or IBC, filling machine not filling. |
○ | ○ |
|
Automatic anti-leaking |
▲ | ○ |
|
Time control to prevent spilling |
▲ | ▲ |
|
Liquid level detecting to prevent spilling |
▲ | ▲ |
|
Safety protection function |
||
|
Air exhausting |
▲ | ○ |
|
Filling Nitrogen |
× | ▲ |
|
electrostatic grounding |
▲ | ▲ |
|
Protection function when lose power |
○ | ○ |
|
Emergency stop |
○ | ○ |
|
EX-proof function |
▲ | ▲ |
|
Mark: “○”is standard function；“▲”is choose function ；“×”is not has function |
||
Main characteristic
*Suit for all kind of can or drum automatic filling.
*Can make into signal or multi- filling line to improving the capacity.
