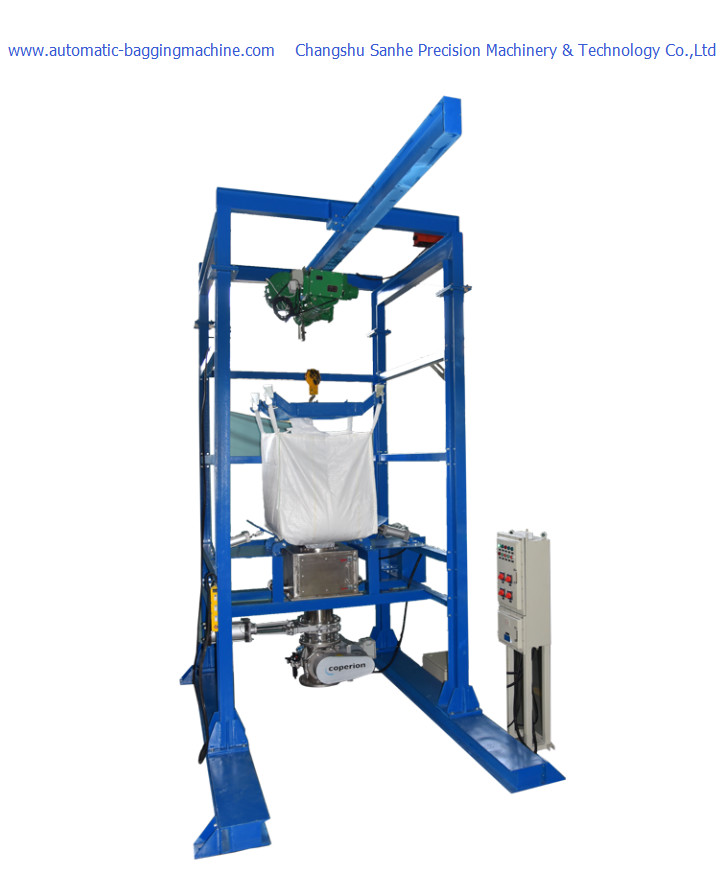

DCS-1000W+DS 1000 Kg Jumbo Bag Unloader Machine / Breaker Discharger
A. What is 25 kg electronic packing scale:
Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.
B. Working principle of 25 kg electronic packaging scale:
When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;
At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.
The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.
C. Generally, a packing & palletizing line includes: Electric Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor ,Robot, Wrapping Machine ,Finished palletizing conveyor.
D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine
Ton-bag breaker is mainly applied to the powder material of 500KG-2500KG bag's unloading. It is widely used in industries of chemicals, plastics, sewage treatment, infrastructure and other industries.
Ton- bag breaker charter not only effectively protect the production environment, reduce the intensity of workers, improve production efficiency, but also solve the problems of the material is easy block due to moisture absorption and the problem of material is difficult to be discharged.
After unpacking the Bag , the material can be conveyed to proper position by the chains conveyor, screw conveyors, pneumatic conveying systems or other specialized conveying equipment.
Features :
1.Simple open- bag structure and easy for operation
2.Tapping device can ensure the material smoothly feed into the next process from the sack
3.Crusher breaks the block during splitting the bag to ensure the next processing work smoothly.
4.Fully automated operation that increase productivity and reduce labor intensity;
5.Sealed split bag that prevent dust emissions, no heat generation, improve the working environment, reduce production costs;
6.Cutting the bag, beating, crushing, magnetic separation integrated design makes structure compact and operation convenient .
7.After unpacking the bag, the material can be conveyed to proper position by the chains conveyor, screw conveyors, pneumatic conveying systems or other specialized conveying equipment.
Technical parameters :
Bag size for cutting | 1000x1000x1600 |
Working Power of our Bag Unloader Machine | AC 380 v ± 5%50 Hz |
Air source pressure | ≥ 0.6MPa |
Air consumption | ≤ 0.6 m ³/min |
wind volume for dust-removal | 800-2500m3/h |
Environment humidity | -100C-400C |
Cutting capacity | 10-20 bags/h (manual) |
