14rpm 2.5kW PLC Rotary Stretch Pallet Shrink Wrapper Rotary Stretch Wrapper

14rpm 2.5kW PLC Rotary Stretch Pallet Shrink Wrapper Rotary Stretch Wrapper

14rpm 2.5kW PLC Rotary Stretch Pallet Shrink Wrapper Rotary Stretch Wrapper
  • 14rpm 2.5kW PLC Rotary Stretch Pallet Shrink Wrapper Rotary Stretch Wrapper
Product Details:
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: ISO9001:2015, CE
Model Number: DT2000RFZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: To be negotiated
Packaging Details: wooden case
Delivery Time: To be negotiated
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Sets per Month
Contact Now
Detailed Product Description
Type:: Pallet Wrapping Film Machine Packaging Type:: Cartons, BAGS, Case
Automatic Grade:: Automatic Dimension(L*W*H):: Customized
Certification:: ISO9001:2000 Core Components:: PLC
After-sales Service Provided:: Engineers Available To Service Machinery Overseas Condition:: New
High Light:

Rotary Stretch Pallet Shrink Wrapper

,

14rpm Pallet Shrink Wrapper

,

PLC Pallet Wrapping Film Machine

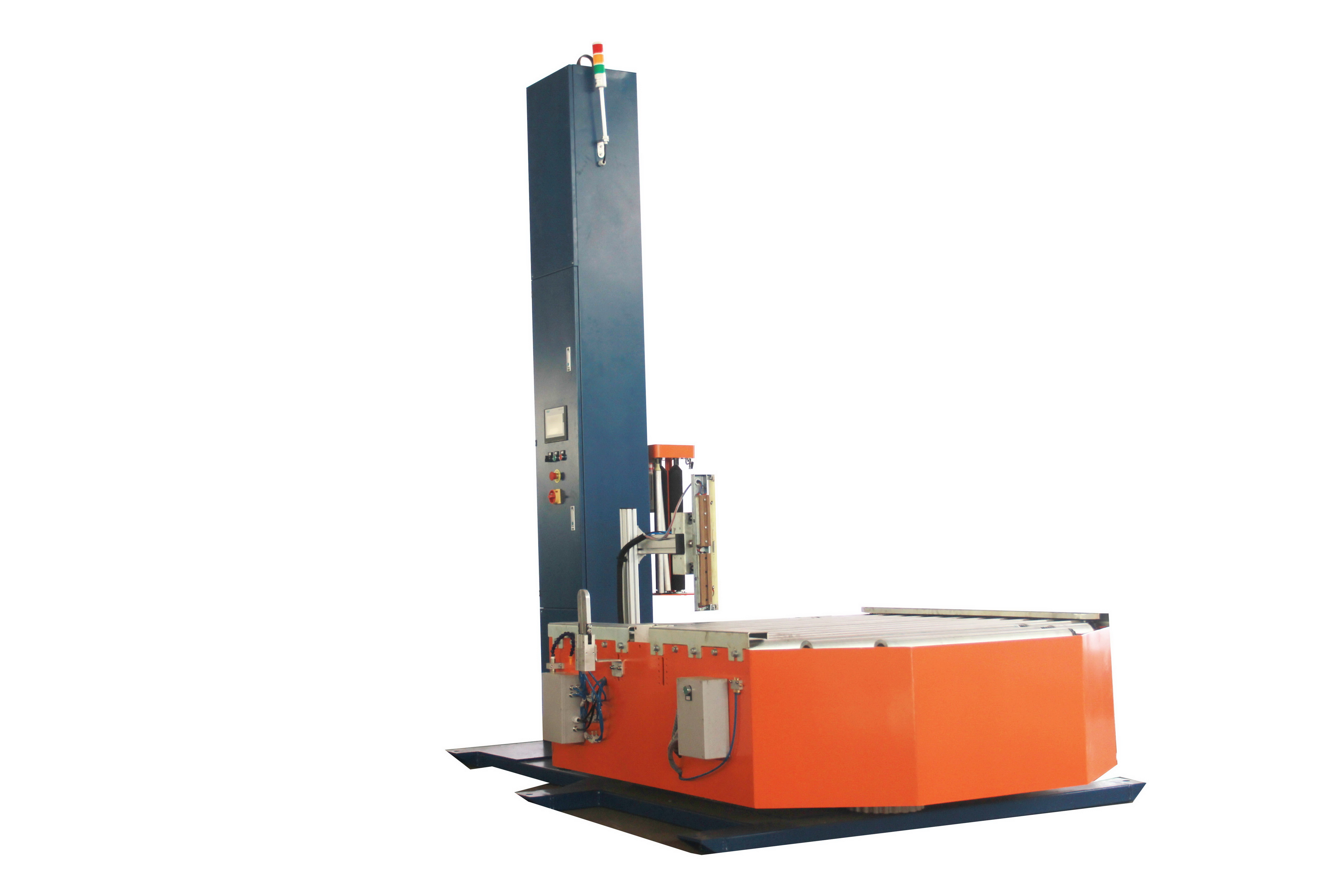

DT2000RFZ 14rpm 2.5kW PLC Rotary Stretch Pallet Shrink Wrapper Rotary Stretch Wrapper



Application object:



Rotary type wrapping machine is the most commonly used equipment for wrapping film around, with high cost performance. The stack type is recommended to be no more than 1800mm, and the efficiency is not more than 30 Torr per hour.



Note: the whole cargo rotates with the turntable assembly during film wrapping.



2. Main technical parameters

2.1 package specification: 1200 * 1200 * 1800mm

2.2 cargo weight: 2000kg

2.3 packing efficiency: 30 Torr / hour

2.4 turntable diameter: 2000 mm

2.5 turntable speed: 14rpm (max)

2.6 speed of conveying line: 12 m / min adjustable

2.7 turntable height: customized

2.8 machine power: 2.5kW 380V / 50Hz

5.8 rated load weight ability : 2000kg

5.9 transmission reducer: frequency control
