Name: Stretch Film 12rpm/Min Automatic Pallet Wrapping Machine
Brand: Changshu Sanhe Precision Machinery & Technology Co.,Ltd.
SKU: T1650-H
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Type:: Automatic Pallet Wrapping Film Machine

Core Components:: PLC

Turntable Speed:: 12rpm/min

Turntable Dia:: 1650mm

Turntable Max. Loading:: 2000kg

Wrapping Size:: (500-1200)mm*(500-1100)mm*1800mm

Voltage:: 110/220V 50/60HZ 1P

Weight:: 700kg

Highlight:

12rpm/Min Automatic Pallet Wrapping Machine

1650mm Pallet Wrapping Machine

Shrink Wrap Pallet Machine

Basic Infomation

Place of Origin: Suzhou

Brand Name: Sanhe

Certification: ISO9001:2015, CE

Model Number: T1650-H

Payment & Shipping Terms

Packaging Details: wooden case

Delivery Time: To be negotiated

Payment Terms: L/C, T/T

Supply Ability: 100 Set/Sets per Month

Gallery

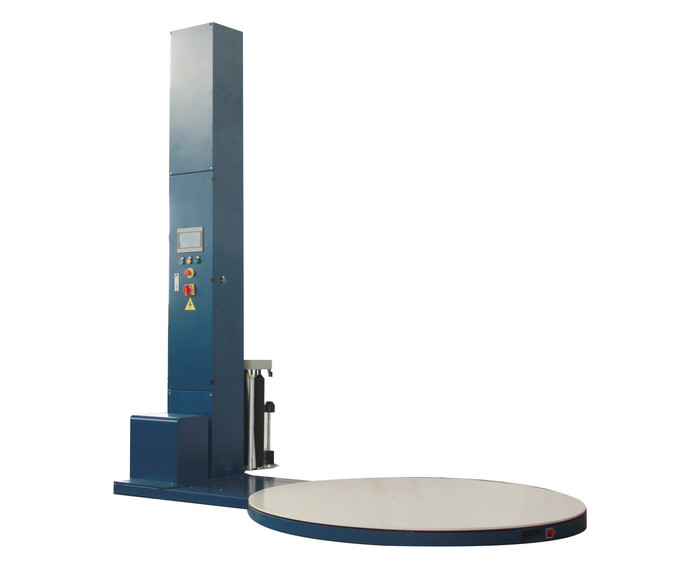

Stretch Film 12rpm/Min Automatic Pallet Wrapping Machine

Product Description

T1650-H Industry Automatic Shrink Wrap Pallet Machine Stretch Film Wrapping Machine

The T1650-H pallet wrap machine is our brand new entry level premium machine. Despite the low price the operator has full control over how many wraps are applied to the top and bottom of the pallet giving you full control over how much film you apply to the pallet something you would associate with machines costing much more. Excellent build quality, durability and user friendly. The T1650F pallet stretch wrapping machine is set to become one of our biggest selling machines.

Product Paramenters

Model	T1650-H
Voltage	220V 50Hz 1P
Power	Turntable Motor:0.75kw;Fim Motor:0.4kw;Column Motor:0.37kw
L*Wmm Wrapping Size	(500-1100)*(500-1200)
Wrapping Height	500-2000/2400
Capacity	20-40 pallet/Hour
Turntable size	1650mm
Turntable Height	78mm
Max loading	2000kg
Speed	Adjustable
Machine weight	700kg
Machine Size	265016502400mm

Product Advantages

Max Pre-stretch

350%

Adjustable tension with quick releas

Independent PLC Inverter Control

Frequency conversion motor has less abrasion and stable packaging

Film Formwork

Laminated film-type film release device has a beautiful stretching certificate, which saves the amount of film

Membrane frame uses DC motor, good performance, cheaper maintenance, more energy saving and environmental protection

More Secure Design

Photoelectric induction design ensures automation, and the limit block provides double insurance for the mold stop

Easy To Operate

Simple and clear text screen intelligent design

Operation display : Interface for manual and auto, Settings, cycle &time chose as you need

Features of Automatic Pallet Wrapping Stretch Film Wrapper Machine

•Open door film carriage •Limit built-in •1800mm wrapping height •2000kgs loading •Spring break stretch •Home position: the turntable always stops at the same position •Speed control on turntable •Choose between 1 & 9 top and bottom wraps with re-enforce wrap •Up & down or up only wrap cycle •Semi auto and manual wrap options •Adjustable pallet height photo sensor •Secure Top Sheet Function •Lockable control panel •Adjustable tension with quick release •Soft start and stop •Machine can be paused during cycle •Magnetic brake holds turntable still during loading/unloading •Audible warning when running a cycle
