20 Pallet/H Pallet Wrapping Rotary Stretch Wrapper Use on Conveyor
1 Set
MOQ
To be negotiated
Price
20 Pallet/H Pallet Wrapping Rotary Stretch Wrapper Use on Conveyor
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: ISO9001:2015, CE
Model Number: DR2000FZ-PL
High Light:

Pallet Wrapping Rotary Stretch Wrapper

,

20 Pallet/H Rotary Stretch Wrapper

,

5.5kw Automatic Pallet Wrapping Machine

Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: To be negotiated
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Sets per Month
Specifications
Type:: Rotary Stretch Wrapper
Core Components:: PLC
Packaging Type:: Cartons, BAGS, Case
Automatic Grade:: Automatic
Dimension(L*W*H):: Customized
Certification:: ISO9001:2000
After-sales Service Provided:: Engineers Available To Service Machinery Overseas
Condition:: New
Product Description

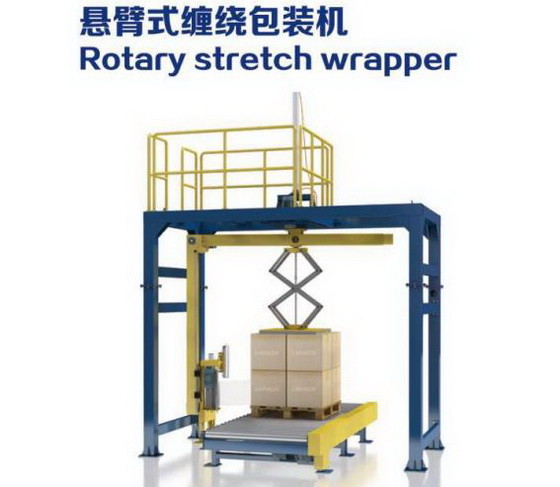

DR2000FZ-PL 20 Pallet/H Pallet Wrapping Rotary Stretch Wrapper Use on Conveyor



Technical agreement

1. Equipment description

1.1 overview

The cargo tray passes through the waiting position conveyor of the conveyor. When the position vacancy of the winding machine is detected, the goods stop, and the pneumatic automatic jacking (optional) is adopted. The winding machine automatically loads the film and wraps the top film. The winding process is carried out according to the set procedure until the winding is finished and the film is broken automatically. Then the goods are transported to the two roller conveyors in turn Station, waiting for forklift, packaging finished.



1.2 main technical data and requirements

1.2.1 pallet size: L1200 * w1200 * h1800 (including pallet)

1.2.2 packaging efficiency: 15-20 Pallet / hour.

1.2.3 equipment application: indoor room temperature

1.2.4 main power supply: 380V (+ / - 10%) / three phase / 50Hz (+ / - 1Hz)

Installed capacity: 5.5kw



1.3 main electrical element: touch screen: Siemens

PLC: Siemens

Frequency converter: Schneider

Pneumatic components: Yadeke

Reduction motor: domestic high quality



1.4 winding position conveyor: 3600mm (optional)



1.5 lifting device: H = 150 mm (optional)



20 Pallet/H Pallet Wrapping Rotary Stretch Wrapper Use on Conveyor 0
