Fine Pharmaceutical chemical Ton Bag Weighing Packing Machine 10-60 Bags/Hour
1 Set
MOQ
Negotiation
Price
Fine Pharmaceutical chemical  Ton Bag Weighing Packing Machine 10-60 Bags/Hour
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: ISO9001:2015, CE
Model Number: DCS-1000 Bulk Bag Simple Type
High Light:

jumbo bag filling machine

,

big bag filling machine

Payment & Shipping Terms
Packaging Details: Wood Case
Delivery Time: 90 days
Payment Terms: T/T
Supply Ability: 90 Sets Per Month
Specifications
Product Name: Fine Pharmaceutical Chemical Ton Bag Weighing Packing Machine 10-60 Bags/Hour
Power: 7.5KW
Certificate: CE,ISO9001:2015
Origin: Suzhou
Packing Speed: 10-60 Bags/Hour
Weighing Range: 500-2000 KG /Bag
Product Description

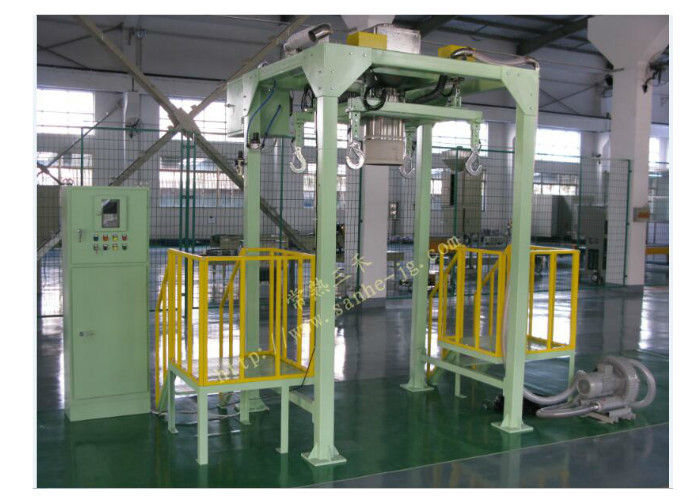

Fine Pharmaceutical chemical Ton Bag Weighing Packing Machine 10-60 Bags/Hour


A. What is 1000 kg electronic packing scale:

Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.



B. Working principle of 1000 kg electronic packing scale machine:

When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;



At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.



The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.



Suitable Packing Container : Open Mouth bag

capacity 10-60 Bags/Hour
pacing specs 500-2000kg/bag
precision grade ≤0.2%
power voltage 380VAC 50Hz
power 7.5KW
Positive air pressure 0.5-0.8MPa
Negative air pressure -0.075~-0.093MPa
temperature -10-40ºC
relative humidity

≤80%



FAQ :

Q: what’s the package ?

A: Most of goods are packed in wooden box / wooden pallet


Q: Do you offer Installation & debugging?

A: Our engineers are available to service machinery overseas to help customers to solve machine problems.



Q: What’s policy for guarantee and broken parts ?

A: As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.



Advantages

High degree of automation,

automatic taring ,

automatic filling,

automatic weighing,

automatic dedustingiing,

easy to operate ;



Please Send us The Details  :
1. Name of Material to Be Filled in Bag?
2. Weight Capacity of Single Bag ?
3. How Much Bag Fill Per Hour?
4. Your Materials Characte?

95% of China Silica (white carbon black) factory use our packing scale machine.
