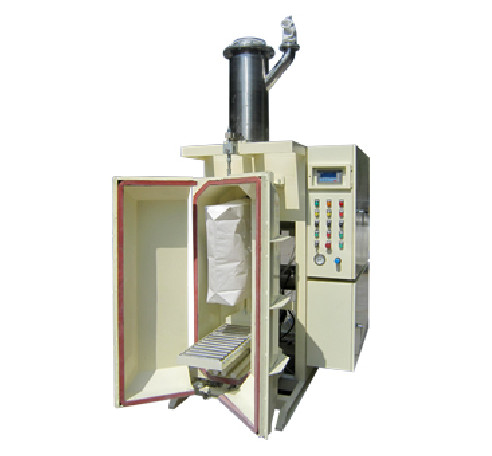

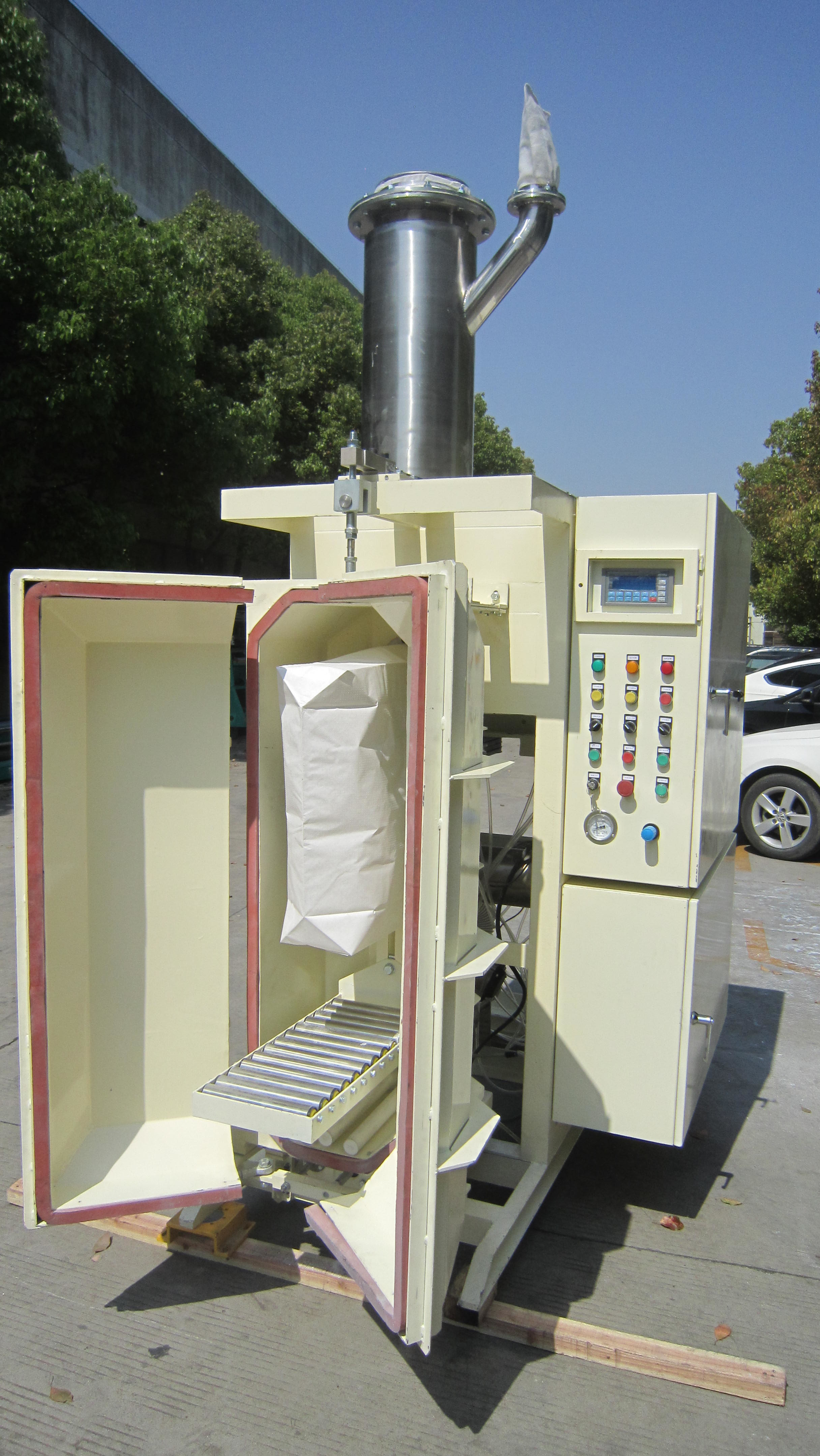

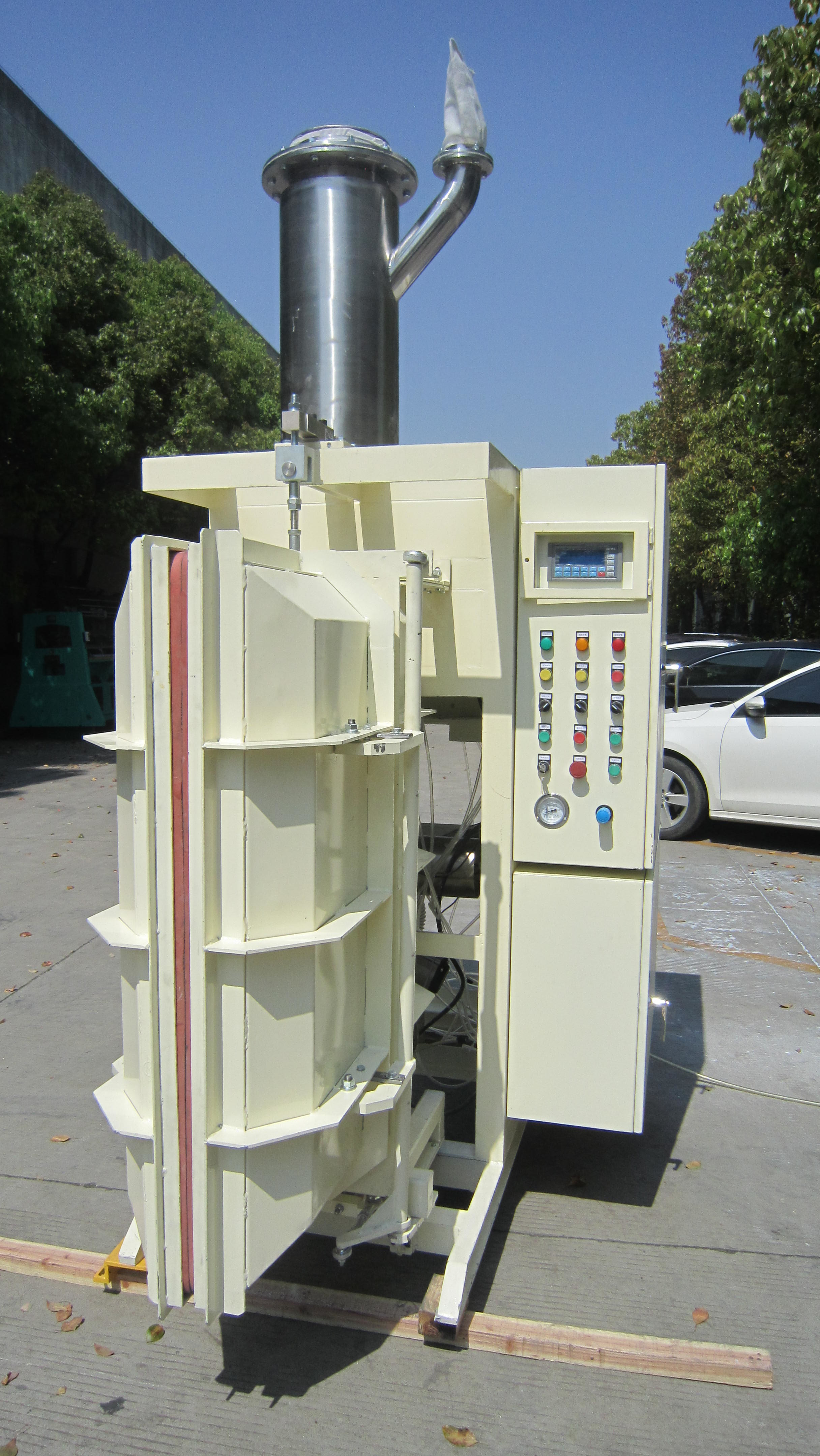

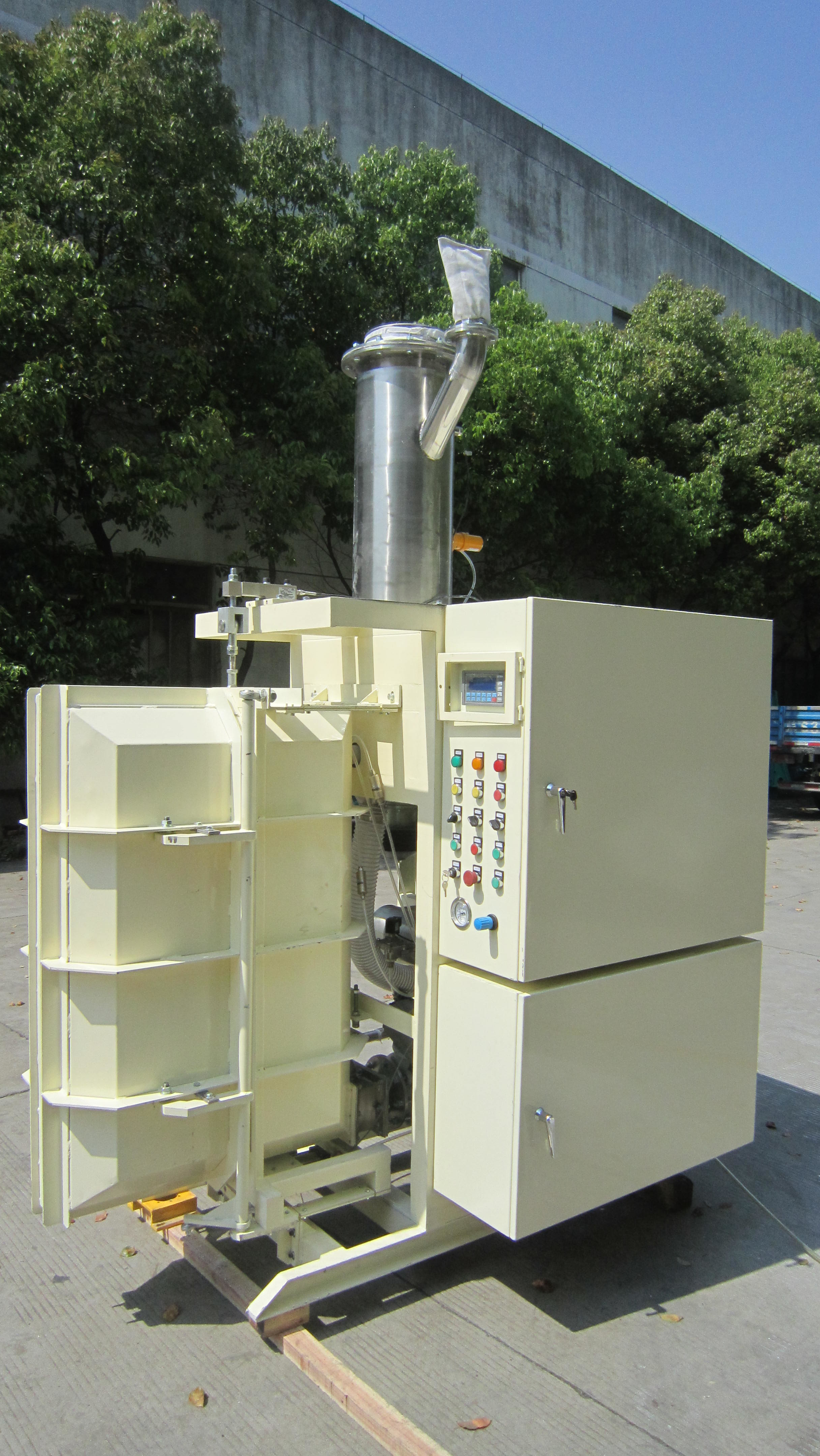

Semi-automatic Valve Bag packing machine Super fine Powder Weighing Packing Machine
1 Set
MOQ
Negotiable
Price
Semi-automatic Valve Bag packing machine Super fine Powder Weighing Packing Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: SanhePMT
Certification: ISO9001:2015, CE
Model Number: DCS-25PV5G
High Light:

valve bagging equipment

,

valve bag packing machine

Payment & Shipping Terms
Packaging Details: Wood pallet , The pallet size is customized according to different products
Delivery Time: 90 days
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 30 Sets Per Month
Specifications
Product Name: Valve Bag Weighing Packing Machine
Weighing Range: 10Kg / Bag
Speed: 10 Bags Per Hour
Warranty: 1 Year
Power KW: 11.5 KW
Automatic Level: Semi-automatic
Product Description

10 Kg / Bag Semi-automatic Valve Bag 5 Nano Meter Super fine Powder Weighing Packing Machine



Semi-automatic Valve Bag packing machine Super fine Powder Weighing Packing Machine 0

Model

DCS-25PVG

Packing capacity(Bag/Hour)





60-120

Package weight range (kg)



15-50

Weighing accuracy



±0.5%@2δ



A. What is 10 kg electronic packing scale:

Electronic packing scale consists of weighing unit, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.



B. Working principle of 10 kg electronic packaging scale:

When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;



At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.



The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.

DCS-25(GO7N)Net Weight Type for Granules 25 Kg Packing Scale Machine 0

operation flow chart.

1. load on bag
2. peeling weight
3. fast feeding
4. slow feeding
5. finish filling


Technical Parameter  Of our  Valve Bag Weighing Packing Machine :

Quantitative range (Kg): 10 Kg

Packing speed (package/hour): 10 Bags per hour

Packaging Accuracy: ± 150 - 200 gram/bag



Advantages  of our  Valve Bag Weighing Packing Machine :

High accuracy
Easy clean out and maintence
After the machine installs you get hands on training and documentation
The air flow feed system is capable of high production rates while maintaining good accuracies.
Operator friendly easy set
Universal and industrial components give the machinery extra long life
Manufactured to comply above and beyond international standards
PLC controller interface
The flexible and modular Packing System


FAQ   :

The follwing questions for us to help you find what you want ?

1, The material you want to pack and its size (μm, mm), bulk density (kg/m3)

2, Packing weight (kg/bag), capacity (ton/day)

3, Detailed description of production line
