Valve Type Bag Automatic Palletizing Machine 25Kg Weighing 300 Bags/H
1 Set
MOQ
Negotiable
Price
Valve Type Bag Automatic Palletizing Machine 25Kg Weighing 300 Bags/H
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: ISO9001:2015, CE
Model Number: VAPL-120-25PV3
High Light:

25kg Weighing Automatic Palletizing Machine

,

Valve Bag Automatic Palletizing Machine

,

300 Bags/H Valve Bagging Machine

Payment & Shipping Terms
Packaging Details: Wood Pallet
Delivery Time: 120-150 days
Payment Terms: T/T
Supply Ability: 30 Sets Per Month
Specifications
Product Name: Automatic Robot Valve Type Bag Packing Machine
How To Feeding Empty Bag: By Robot
Packing Speed: 120-300 Bags Per Hour
Accuracy: Generally (+/- )0.2%FS,2δ
Automatic Leve: Automatic
Weighing Range(kg): 25 Kg
Product Description

Automatic Robot Empty Bag Feeder 25 Kg Valve Type Bag Weighing Bagging Packing Palletizing Machine 120-300 Bags/Hour

Automatic Robot Empty Bag Feeder 25 Kg Valve Type Bag Weighing Bagging Packing  Palletizing Machine 120-300 Bags Per Hour



Broad Category: Valve Bag Automatic Packing and Palletizing Line



Name: VAPL Valve Bag Automatic Packing and Palletizing Line



1. Scope of application:

1) Applicable material:

Non-sticky, loose powder.

2) Applicable filling containers

The valve bag made of paper or other material with breathable micropores, such as film with breathable micropores.



2. Technical parameters:

Item Short Name Model Number

Max Capacity

(bags/hour)

1. Single packer type VAPL-120-25PV3 120
2. Double packers type VAPL-200-25PV3X2 200
3. Triple packers type VAPL-300-25PV3X3 300


Note: the actual capacity is affected by the flowability of the material, the form of the bag, the material of the bag, the size of the bag and so on.

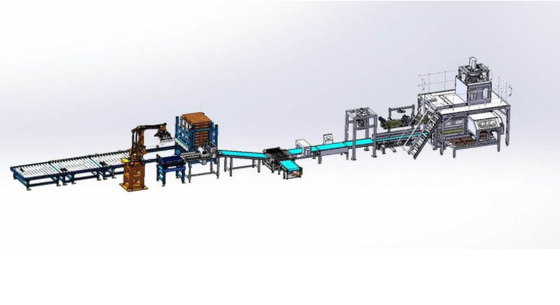

3. Main Equipments composition

Item Equipment Quantity
1. Automatic valve bag packer 1 or 2 or 3
2. Automatic empty bag feeder 1
3. Metal detector 1
4. Weight checker 1
5. Rejector 1
6. Filled bag reshaping Conveyor 1
4. Conveyor Several
5. Pallet magazine(include pallet feeder) 1
6. Robot 1
7. Power cabinet and Control cabinet 1



Functions and Characteristics:

High degree of automation, Manually only need to put empty bags into the automatic empty bag feeder, empty pallets into the pallet magazine, all other processes are automatically completed by the equipments.



Perfect dedustinging system ensures that no dust escapes to pollute the environment during packaging.



Functions and Characteristics:



High degree of automation, Manually only need to put empty bags into the automatic empty bag feeder, empty pallets into the pallet magazine, all other processes are automatically completed by the equipments. The specific automation processes is as follows:



Automatic empty bag feeding;

Automatic weighing and filling;

Automatic valve mouth sealing;

Automatic filled bag unloading;

Automatic conveying;

Automatic metal detection;

Automatic weight check;

Automatic rejection;

Automatic filled bag shaping;

Automatic palletizing;

Automatic stack exit.





Perfect dedustinging system ensures that no dust escapes to pollute the environment during packing.
