chemical fertilizer industry ton bag packing machine screw feeding 5-20 bags/hour
1 Set

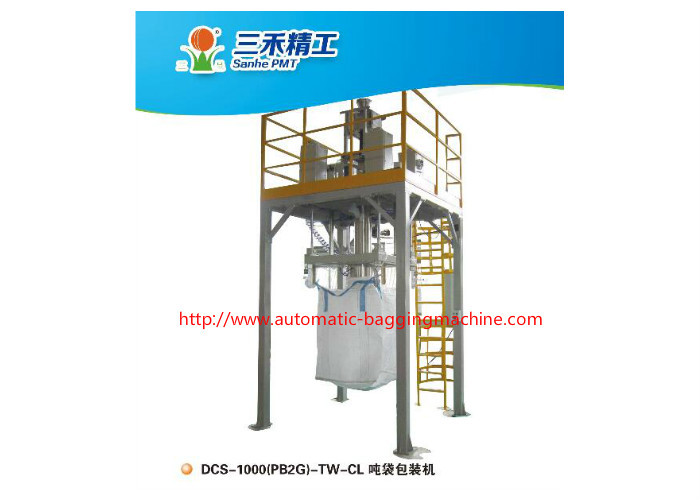

chemical fertilizer industry ton bag packing machine screw feeding 5-20 bags/hour
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: CE,ISO9001:2015
Model Number: DCS-1000 FW
High Light:

bulk bagging equipment


big bag filling machine

Payment & Shipping Terms
Packaging Details: Wood pallet , The pallet size is customized according to different products
Delivery Time: Negotiable
Payment Terms: T/T
Supply Ability: 90 Sets Per Month
Product Name: Ton Bag Weighing Packing Machine
Feeding Type: Screw Feeding
Capacity: 5 - 20 Bags Per Hour
Power KW: 380V; 50Hz±2% (three Phase And Five Wires);3 KW
Accuracy: Generally (+/- ) 0.2%
Weighing Range: 500-2000 Kg / Bag
Machine Height: 3282 Mm
Automatic Grade: Semi-automatic
Product Description

chemical fertilizer industry ton bag packing machine screw feeding 5-20 bags/hour
A. What is big bag fertilizer industry weighing packing machine:
Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.
B. Working principle of industry weighing packing machine:
When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;
At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.
The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.

industry weighing packing machine Technical data :

Packing speed 5-20bag/h
Weighing range 500-2000kg/bag
Precision grade ≤0.2%
Power voltage 380VAC 50Hz
Power 7.5KW
Positive air pressure 0.5-0.8MPa
Negative air pressure -0.075~-0.093MPa
Temperature -10-40ºC
Relative humidity ≤80%



* Suitable for Granular material with fine flowability
* for valve bag packing: 1500kg per bag
* Packing speed: 10-40bags per hour
industry weighing packing machine Product Characteristics :

Easy to operate and use
Bag-clamp equipment is advanced, material can be fully filled
Fill material system has material-stop equipment, accuracy high
Control, work parts all use imported parts, stable and reliable with sewing machine
Heat-sealing machine optional

Our Service :
1. We can provide "one-stop purchasing" or "package program" system solutions and owns professional manufacturing equipment as well as a full range of technical support and after-sale service.
2. OEM, Customized can be all accepted.
3. Contact us any time when you feel free.

Q: Can your machine be customized ?
A: Yes, we are a professional manufacturer specilized in palletizing robot, packaging machine, conveyor etc. for more than 20 years and we have a strong design & technical team. We can design and manufacture as per your requirements.
Q: How to get an accurate quotation ?
A: Please provide us the detail of the workpiece such as drawing and dimensions.
Q: What’s the shipping cost from China to your country ?
A: We can send machine to your port by sea or other term you need. Please kindly tell us your nearest port or address. We have reliable shipping agent to ensure the safe, convenient and timely delivery.
Minimum order quantity: 1 set, FOB Shanghai
Delivery time: fast delivery after the deposit.
Warranty: 12 months following delivery. We offer online service 24 hours all day long
You can contact us any time, if urgently, please call us.
Q: what’s the package ?
A: Most of goods are packed in wooden box
Q: Do you offer Installation & debugging?
A: Our engineers are available to service machinery overseas to help customers to solve machine problems.
Q: What’s policy for guarantee and broken parts ?
A: As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.

Please Send us The Details We Required :
1. Name of Material to Be Filled in Bag?
2. Wight Capacity of Single Bag ?
3. How Much Bag Fill Per Hour?
4. Your Materials Characte?

95% of China Silica ( white carbon black ) factory use our packing scale machine.
