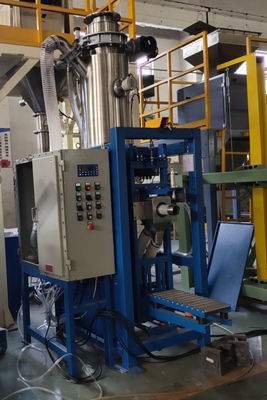

DCS-25PV3 25 Kg Packing Machine Carbon Black Packing Machine For Super Fine Powder Bagging

A. What is 25 kg Carbon Black electronic packing scale:

Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.

B. Working principle of 25 kg Carbon Black electronic packaging scale:

When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;

At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.

The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.

C. Generally, a Carbon Black  packing & palletizing line includes: Electric Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor ,Robot, Wrapping Machine ,Finished palletizing conveyor.

D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine

Automatic & semi-automatic bagging machinery to pack free-flowing, semi-free flowing & even sticky more difficult to flow products. Bags can be pre-fabricated pillow or gusseted and of woven PP (polypropylene), PE (polyethylene) or paper material. Depending on the bag material and the type of bag, bags are either sewn, sealed or hot glued.

Packaging weight: 25 kg

Product characteristics of our Carbon Black  Bagging Machine :

1. Multi-stage frequency conversion design, high packaging accuracy.

2. They are durable and non-deformable, and have excellent stability.

3. It can be equipped with explosion-proof control system to meet the packaging requirements of conductive materials.

4. Dust-free operation, low noise, no spillover, reduce powder consumption.

5. Adopt imported electronic weighing system, machine automatic metering, automatic blanking, automatic shutdown.

6. After three independent quality inspections, there are more than 50 main inspection standards to strictly guarantee the quality of the products.

7. The technology is mature and the failure rate is low.

Our Services  :
1. one year guarantee for whole machine except for wear parts;
2. 24 hours technical support by email;
3. calling service;
4. user manual available;
5. reminding for the service life of the wearing parts;
6. installation guide for clients from both China and abroad;
7. maintance and replacement service;
8. whole process trainling and guidance from our technicians.High quality of after-sales service symbolizes our brand and ability. We pursue not only good quality products, but also best after sales service. Your satisfaction is our final purpose.

FAQ of :
1. Are you a trading company or a factory?
---We are factory sell directly, and welcome to visit our factory in Changshu city,Suzhou,Jiangsu Province China.
2. Can you guarantee the quality of your valve bag packing machine?
---We have passed CE&ISO9001, and our packing machines have been sent to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc.
3. How many years have you been manufacturing this machine?
---Since the foudation of our company, we have been manufacturing the machine, which updated many times, now the machine runs stable and of high quality.
