25Kg Packing Scale Equipment
1 Set
MOQ
Negotiable
Price
25Kg Packing Scale Equipment
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: ISO9001:2015, CE
Model Number: 25 Kg Packing Scale
High Light:

Weighing Bagging Filling Scale

,

7. 5KW Packing Scale

,

25Kg Packing Scale Equipment

Payment & Shipping Terms
Packaging Details: Wood Pallet
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: 90 Sets Per Month
Specifications
Item: 25Kg Packing Scale
Function: Weighing Bagging Filling
Production Capacity: 90 Sets Per Month
Controls: PLC
Powder: Electric
Origin: Suzhou
Product Description

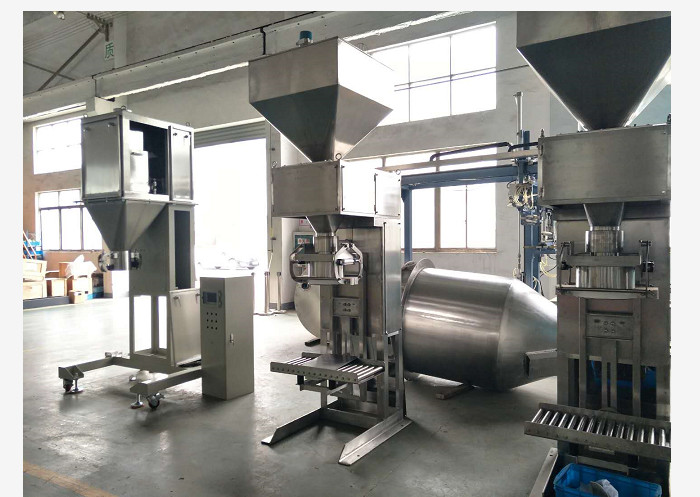

DCS-25 25 Kg Weigh Pack System Net Weigh Filling Machines Packing Scale Equipment



A. What is 25 kg electronic packing scale:

Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.





B. Working principle of 25 kg electronic packaging scale:

When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;



At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.



The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.





C. Generally, a packing & palletizing line includes: Electric Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor ,Robot, Wrapping Machine ,Finished palletizing conveyor.



D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine.



Series: Impeller Feeder

This series of machines are designed for super fine powders and granules with medium to high bulk density and small parcel size. The unique impeller design allows for a fast and uniform feed flow to maintain a fast packing speed. Applicable materials include: Cement, Dry Mortar, Kieselquhr, Perlite Additive, Lime Carbonate and Siliceous Dust etc.


Packaging weight: 25kg
Power consumption: 5 - 7. 5KW




FAQ:

1. MOQ is one set .

2. Quality gurantee.
a strong efficient management for the big bag packing scale team overseas the product lines to gurantee that QC are well enforced. 100% orders are inspected before delivery .

3. Competive price
We have our own design technology team, our own factory, factory-to-client pricing made our goods at a very competitive prices with the overhead

4.Quality service
an excellent sales team will quote you and give you some suggestion on items with 24 hours

5. Service after sales

Machine warranty one year. supply the spare parts shipment in China region. Spare parts free of charge are supplied within one warranty year, easy damaged parts and man-made damage are exclusive, over one warranty year seller only charge spare part at cost price.

Seller will give buyer long term technology support. Seller offer buyer side operation manual in English. "

Option 1: (Supervion for Installation and Commission: **USD( **USD/Person/Day,not contain Round-trip air ticket expense,Accommodation and transportation expenses at buyer country.)

Option 2: Buyer can dispatch engineer to do inspection after production of machines finished, seller are responsible to offer your engineers' training in free of charge."

6. Our port : Shanghai port

7. Delivery time : usually 3 month after the deposit .

8. Packing way: by wooden pallet
