10kg Weighing Bagging PLC Carbon Black Packing Machine Big Bag Weigh Packing Machine
1 Set
MOQ
Negotiable
Price
10kg Weighing Bagging PLC Carbon Black Packing Machine Big Bag Weigh Packing Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: ISO9001:2015, CE
Model Number: Weighing Packing Machine
High Light:

PLC Carbon Black Packing Machine

,

Weighing Carbon Black Packing Machine

,

10kg Carbon Black Packing Machine

Payment & Shipping Terms
Packaging Details: Wood Pallet
Delivery Time: 90 days
Payment Terms: T/T
Supply Ability: 30 Sets Per Month
Specifications
Item: Big Bag Weigh Packing Machine
Function: Weighing Packing
Production Capacity: 90 Sets Per Month
Controls: PLC
Powder: Electric
Origin: Suzhou
Product Description

Open Top Bag Packing Machine Line Packing in Bags 5 kg / 10 kg / 15 kg / 20 kg / 25 kg / 50 kg / 100 kg



A. What is 25 kg electronic Weighing Packing Machine:

Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.





B. Working principle of 25 kg Weighing Packing Machine:

When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;



At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.



The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.

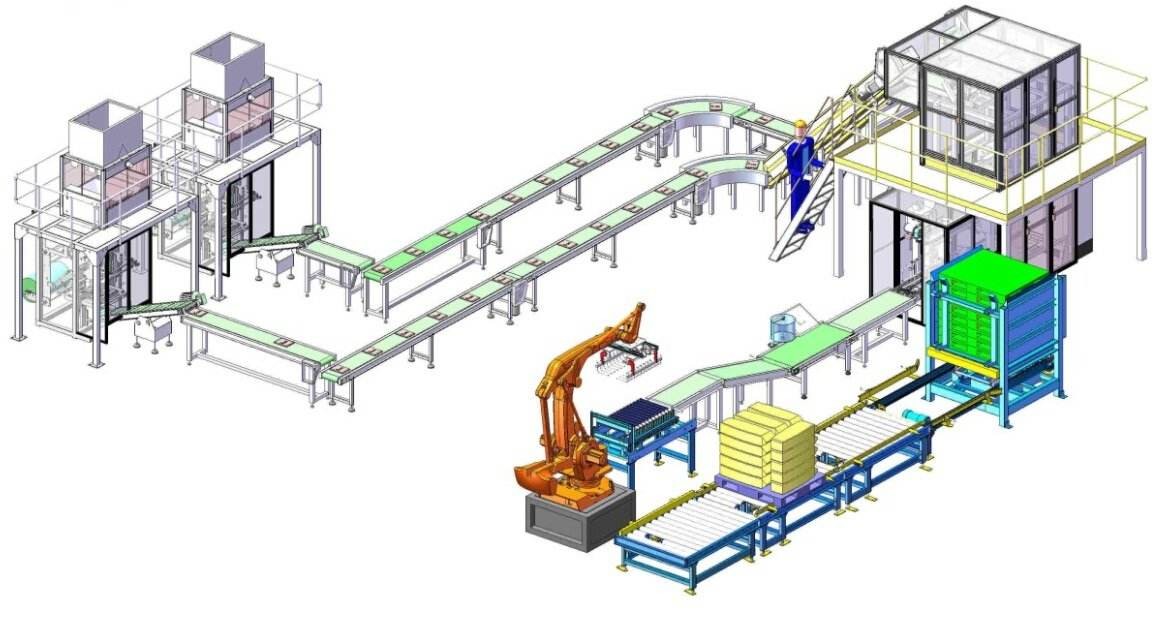

C. Generally, a packing & palletizing line includes: Electric Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor ,Robot, Wrapping Machine ,Finished palletizing conveyor.



D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine.



Series: Impeller Feeder

This series of machines are designed for super fine powders and granules with medium to high bulk density and small parcel size. The unique impeller design allows for a fast and uniform feed flow to maintain a fast packing speed. Applicable materials include: Cement, Dry Mortar, Kieselquhr, Perlite Additive, Lime Carbonate and Siliceous Dust etc.


Packaging weight: 25 kg
Power consumption: 5 - 7. 5 KW




Our Services :
1. one year guarantee for whole machine except for wear parts;
2. 24 hours technical support by email;
3. calling service;
4. user manual available;
5. reminding for the service life of the wearing parts;
6. installation guide for clients from both China and abroad;
7. maintance and replacement service;
8. whole process trainling and guidance from our technicians.High quality of after-sales service symbolizes our brand and ability. We pursue not only good quality products, but also best after sales service. Your satisfaction is our final purpose.




FAQ  :
1. Are you a trading company or a factory?
---We are factory sell directly, and welcome to visit our factory in Changshu city,Suzhou,Jiangsu Province China.
2. Can you guarantee the quality of your valve bag packing machine?
---We have passed CE&ISO9001, and our packing machines have been sent to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc.
3. How many years have you been manufacturing this machine?
---Since the foudation of our company, we have been manufacturing the machine, which updated many times, now the machine runs stable and of high quality. we build on the year of 1998.
