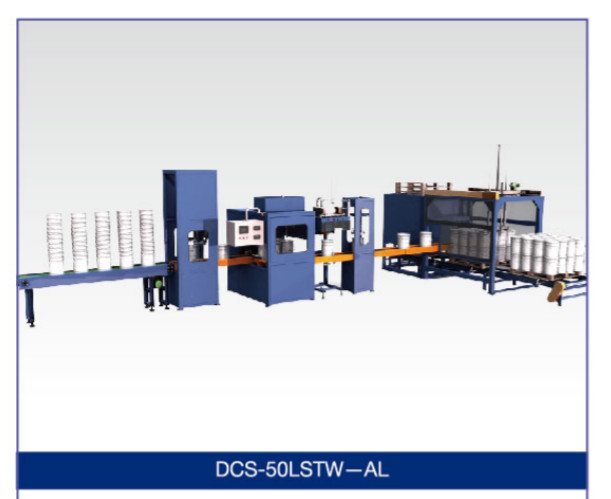

DCS-50L STW-AL Liquid filing machine
Application of Liquid filling Machine :
Drum Filling Machine is based on weighing scale to measure liquid weight filled into all kinds of containers, such as drum, IBC etc.
Widely used in chemical, food, pesticide industries etc.
Suitable for filling Coating, paint, printing ink, adhesive, curing agent, resin, dye, detergent, oil, glycerin, lubricating oil, edible oil, essence, solvents, additives, food additives, pesticides and other hazardous chemical products etc.
The parameter and function table of liquid filling machine :
| DCS-50L STW-AL Liquid filing machine | |
| Scope of application | |
| Suitable materials | 10-50 L |
| Feeding type | Upon liquid surface filling |
| Alternative feeding type | Under liquid surface filling |
| Technical parameters | |
| Maximum weighing(Kg) | 100 KG |
|
Filling speed(pails/H, cans/H, drums/H IBCs/H) (dimension of filling lance is DN40, Material supply speed must more than 208L/H) |
200-300 ( 50 Liter/ IBC ) |
| Filling accuracy | Generally (+/- )0.2%(Note:1,if material supplying not instability will effect to filling accuracy.2, special material according to industrial standard) |
FAQ :
The follwing questions for us to help you find what you want ?
1, The material you want to pack and its size(μm, mm), bulk density(kg/m3)
2, Packing weight (kg/bag), capacity (t/day)
3, Detailed description of production line
Our core products is :
Big bag packing machine. 5kg-50kg.
Ton bag pack machine.
Ton bag discharger.
10L-1000L liquid filling machine.
Palletizing Line.
It sales well in China and overseas market.
Sanhe--A wellknown packing and palletizing manufacture from China
The parameter and function table of liquid filling machine
|
DCS-50L(STW) Liquid filling machine(can or pail upon liquid surface filling) |
DCS-250L(STW) Liquid filling machine(drum upon liquid surface filling) |
DCS-1500L(SUW-P) Liquid filling machine(drum or IBC under liquid surface filling) |
DCS-1500L(BTW) Liquid filling machine(IBC upon liquid surface filling) |
|
|
Scope of application |
||||
|
Suitable materials |
10-50L |
50-250L |
100-250L |
IBC |
|
Feeding type |
Upon liquid surface filling |
Upon liquid surface filling |
Under liquid surface filling |
Upon liquid surface filling |
|
alternative feeding type |
Under liquid surface filling |
× |
Upon liquid surface filling |
Under liquid surface filling |
|
Technical parameters |
||||
|
Maximum weighing (Kg) |
100 | 500 | 1500 | 1500 |
|
Filling speed(pails/H, cans/H, drums/H IBCs/H)(dimension of filling lance is DN40, Material supply speed must more than 208L/H) |
200-300 (30liter/ pail , 30liter/can) |
60
200liter/drum |
60
200liter/drum |
15
1000liter/IBC |
|
Filling accuracy |
Generally (+/- )0.2%(Note:1,if material supplying not instability will effect to filling accuracy.2, special material according to industrial standard) |
|||
|
Control function |
||||
|
Automatic tare |
○ | ○ | ○ | ○ |
|
Automatic quick and slow feeding |
○ | ○ | ○ | ○ |
|
Automatic free fall compensation |
○ | ○ | ○ | ○ |
|
Automatic minus deviation |
○ | ○ | ○ | ○ |
|
Automatic over weight alarms |
○ | ○ | ○ | ○ |
|
Manual/Automatic mode conversation |
○ | ○ | ○ | ○ |
|
Communication port |
▲ | ▲ | ▲ | ▲ |
|
|
||||
|
Adjusting the height of filling lance function |
○ | ○ | ○ | ▲ |
|
horizontal slip filling lance function |
× | ▲ | ○ | ▲ |
|
Filling protect function |
||||
|
Self protection when the filling lance not in the right position to filling |
× | × | ○ | ▲ |
|
If there is no pail, can, drum or IBC, filling machine not filling. |
○ | ○ | ○ | ○ |
|
Automatic anti-leaking |
▲ | ▲ | ○ | ▲ |
|
Time control to prevent spilling |
▲ | ▲ | ▲ | ▲ |
|
Liquid level detecting to prevent spilling |
▲ | ▲ | × | × |
|
Safety protection function |
||||
|
Gas exhausting |
▲ | ▲ | ○ | ▲ |
|
Filling Nitrogen |
× | × | ▲ | ▲ |
|
electrostatic grounding |
▲ | ▲ | ▲ | ▲ |
|
Protection function when lose power |
○ | ○ | ○ | ○ |
|
Emergency stop |
○ | ○ | ○ | ○ |
|
EX-proof function |
▲ | ▲ | ▲ | ▲ |
|
Mark: “○”is standard function；“▲”is choose function ；“×”is not has function |
||||
Function
**Load cell measuring mode.
**Waterproof load cells.
**Height can be adjusted to accommodate several pails with different size.
**leak-proof device. It makes up of a cylinder and a drib-proof cup.
**a stopper made of PTFE to stop drip after filling.
**Fast / Dribble Feed Control.
**Digital display. Displays gross, net, tares automatically, automatic free fall compensation.
**Over weight and under weight Alarms.
**Maintenance diagnostics/weighing & safety alarms.
**Manual/Auto mode control.
**The filling time has to be limited. If after the set time has elapsed, the required weight has not been reached the filling process is not progressing according to normal operation, then it should be stopped.
**The filling machine has safety features that filling can only be started if Pail is placed on the electronic scale and the lance is inserted property into filling vessel.
Process description
The suppliers of main parts
Weighing Controller : METTLER TOLED
Load Cell : METTLER TOLED
PLC : MITSUBISHI FX-1N
Pneumatics Equipment : FESTO,AIRTAC
