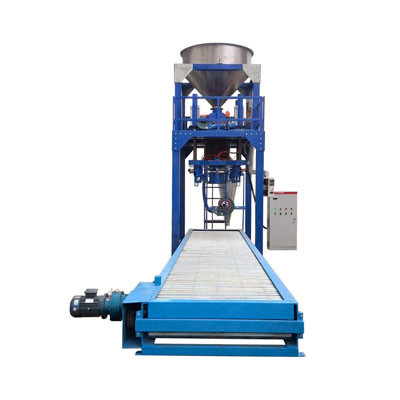

Explosion Proof Bulk Handling Equipment 50 Bags/Hour Powder Packer
1. Scope of application:
1) Applicable material:
Non-sticky powder or particles.
2) Applicable filling containers
Big bag .
2. Technical parameters:
|
Packer Model |
DCS-1000W
|
|
Packing speed ( bags / hour ) |
5-50 |
|
Packaging target weight range(Kg) |
250-500 |
| 500-1500 | |
|
Weighing accuracy |
±0.2%@2δ |
3. Functions and Characteristics:
1) Gravity or screw feeder;
2) Hanging weighing type, high weighing accuracy is guaranteed by the load cell and digital weighing controller;

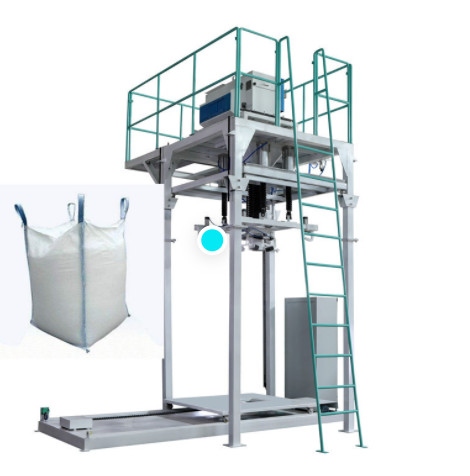

3) The weighing frame equipped with four bag-hanging hooks and the filling nozzle of this packer can be lift by motor, so this type of big bag packer is suitable for the bag with a width bag height form 1000mm to 2500mm;
4) a vibration platform can be placed at the bottom of the packaging machine to vibrate the materials in the packaging bag, eliminate the stacking angle of the materials, and improve the volume utilization of the bag;
5) It can form a semi-automatic packaging line with pallet feeder and some conveyors .
6) High degree of automation, automatic taring , automatic filling, automatic weighing, automatic dedustingiing, easy to operate;
7) Equipped with dedusting mechanism.
Main sub-suppliers of rubber weighing packing machine :
|
Name OF Outsourcing |
Sub-suppliers |
|
Load Cell |
Zhong Dian Hang CE Or Mettler Toledo (main control cabinet) |
|
PLC |
Mitsubishi (main control cabinet) |
|
Pneumatic Equipment |
AIRTAC |
|
Electrical components |
Schneider ( main control cabinet ) |
Utilities ( provided by buyer ):
(1)Power
AC380V±10％；50Hz±2%(three phase and five wires),~5 Kw
(2)Compressed Air:
Pressure: 0.55~0.7 Mpa；
Consumption: 0.3N m3/min；
(3) De-dusting
Negative pressure:6-8pa
Blowing rate: 1800m³/H
(4)Temperature: -5- + 50 (℃)
(5)Relative humidity:≤90% (no coagulation water)
our rubber weighing packing machine Advantage : Fast packing speed , high precision, less dust
