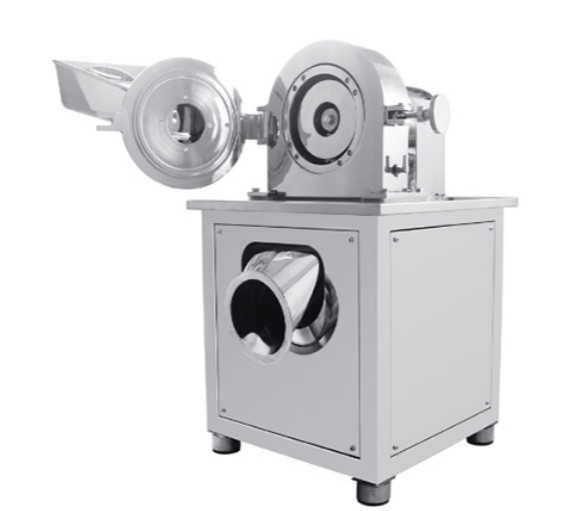

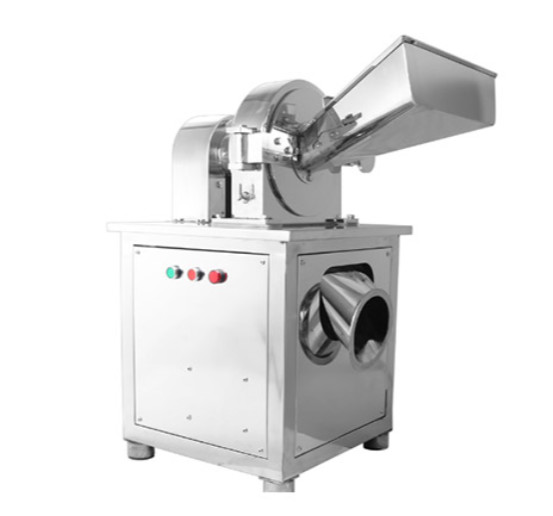

DZ series high efficiency grinding machine
DZ series high efficiency grinding machine is mainly used in the fields of pharmaceuticals, chemical industries and food industries. It is mainly used to grind chemical materials,Chineese medicine herbs, India spices, dried leaves, kinds of grains with low oil content, whole grains and other rigid and crispy materials, such as ginger, chilli, sugar, salt, pepper, oil wheat, bean, star anise, cinnamon ,dried vegetable etc.
When grinding materials with middle-low rigidity, the mesh size of grinded products can be adjusted from 10 mesh to 120 mesh. The advantageous of this machine as follows: high yield, fine granularity, low noise, low energy consumption ,simple maintenance and convenient installation.
Prohibited in the crushing of flammable and explosive materials.
Prohibit the use of metal objects. Not suitable for bulk material crushing.
Not suitable for crushing the moisture content is too high, the oil content is too high because the material, after crushing water or oil, forming a paste, will block the screen effect of discharge, resulting in the discharge is not smooth, even death card, boring machine phenomenon.
This machine is not suitable for crushing all viscous material, is also not suitable for heating become soft and sticky material.
| Technical Parameters | |||||
| Model | DZ-20 | DZ-24 | DZ-28 | DZ-36 | DZ-42 |
| Capacity | 150kg maximum | 300kg maximum | 500kg maximum | 800kg maximum | 1200kg maximum |
| Input size | 10mm
maximum |
12mm maximum | 12mm maximum | 12mm maximum | 12mm maximum |
| Output size | 10-120 mesh adjustable | 10-120 mesh adjustable | 10-120 mesh adjustable | 10-120 mesh adjustable | 10-120 mesh adjustable |
| Power | 3kw | 5.5kw | 7.5kw | 11kw | 15kw |
| Dimension | 720*530*880 | 860*570*1060 | 890*620*1130 | 1040*840*1330 | 1070*780*1350 |
