SanhePMT Automatic Carton Sealing Machine Carton Case Opening Erector and Bottom Box Carton Sealer for Box Packing

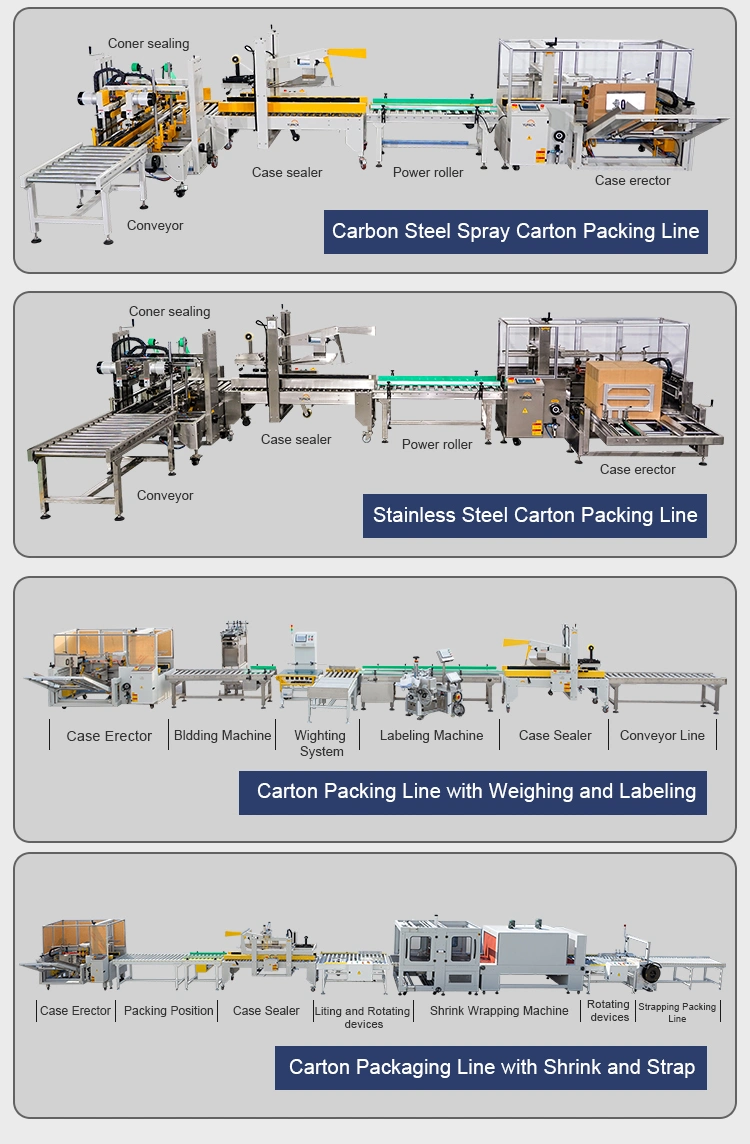

Automatic Carton sealing machine is mainly suitable for the sealing and packaging of carton. It can be used in stand-alone operation or in combination with the assembly line. It can be used in single-box operation or matched with carton forming and unpacking machine, packing machine, labeling machine and conveyor. The packaging line is used to make the necessary equipment for the packaging line.
Automatic Carton sealing machine Feature :
1. Vertical storage,cartons can be added at any time without stopping the machine;
2. Suitable for forming and sealing cartons of the same size.
3. Manually adjust to change the carton sizes(finishing in 2-3minutes);
4. Advanced photo electricity induction control system
5. Rationally designed,the forming,folding and sealing process are accomplished simultaneously;
6 Cutter Safety system to prevent hands form stabbed by the cutter
7 Heavy duty built,both steel and stainless steel types.
Main Technical Parameters of Automatic Carton Sealing Machine:
Fully Automatic Carton Case Opening Erector and Bottom Carton Sealer Machine for Box Packing
| Model |
Sanhe Automatic Carton sealing machine |
| Power supply |
110/220V, 50/60Hz, 1 Phase |
| Maximum out of the box size |
L450 * W400 * H400mm (can be customized) |
| Minimum out of the box size |
L200 * W150 * H100mm (can be customized) |
| Folding box size |
L200-600 * W200-500 * H150-500mm (can be customized) |
| Bundle size |
W800 * H600mm (customizable) |
| Total power |
1.5KW |
| Need air supply |
5-6kg/cm2 |
| Suitable for PP belt |
0.5-1.0mm / width 9-15mm |

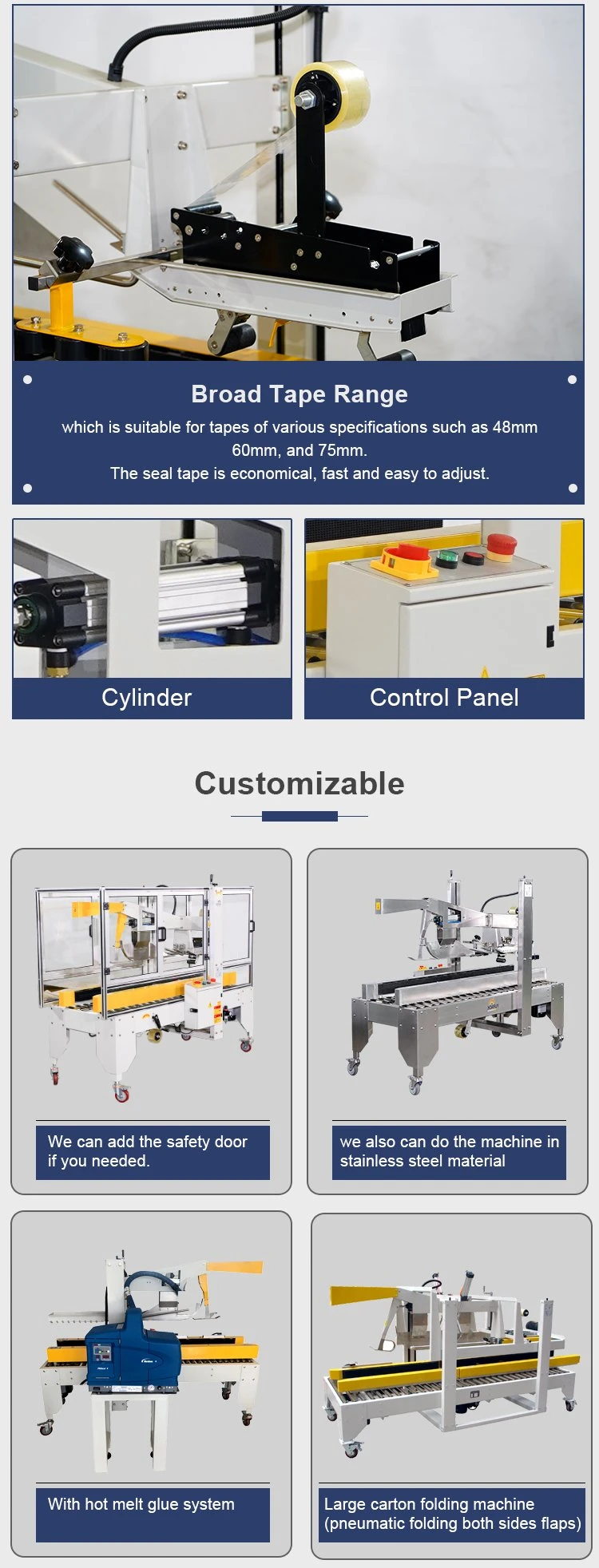

| Applicable tape width |
48/60/75mm (Choose one type) |

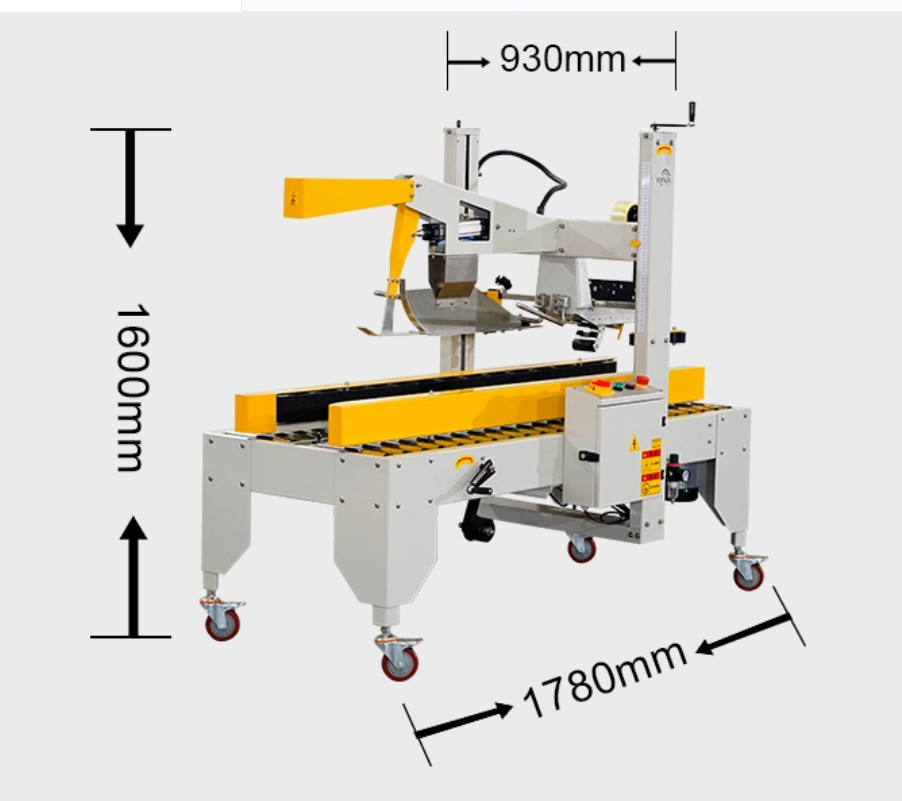

| Machine size |
L2000×W1900×H1450mm |
| Machine weight |
450kg |
Packaging & Delivery
Package size per unit product
1500.00cm * 1500.00cm * 1300.00cm
Gross weight per unit product
150 kg
Product Description of Automatic Carton Sealing Machine
ChangShu SanHe Precision Machinery & Technolgoy Co.,Ltd is a technological enterprise which is professional engaged in research, development, manufacture and sale of solid and powder product (graininess product and powdery product ) packaging machine, liquid filling machine, automatic packing(filling) and & palletizer line. It’s products sell well home and abroad ,and are already widely used in chemical,petrochemical, fine chemical, medicine, fertilizer, plastics, rubber, dyestuff, food, feed, non-ferrous metals, metallic minerals, nonmetallic minerals, building material industries etc.
ChangShu SanHe Precision Machinery & Technolgoy Co.,Ltd is a Jiangsu Province Hi-tech Enterprise, a Jiangsu Province Private Science & Technology Enterprise, It is a patented advanced of Jiangsu province. It won Chinese National Private Hi-tech Enterprise Innovation Prize in 2006,
and be already awarded ISO9001-2000 “Certificate of The System of Quality Certification” and “License for manufacturing measuring instruments of the People’s republic of China”(CMC). it has three Jiangsu Province Hi-tech Products . The enterprise has 104 employees , including 28 technicians.
