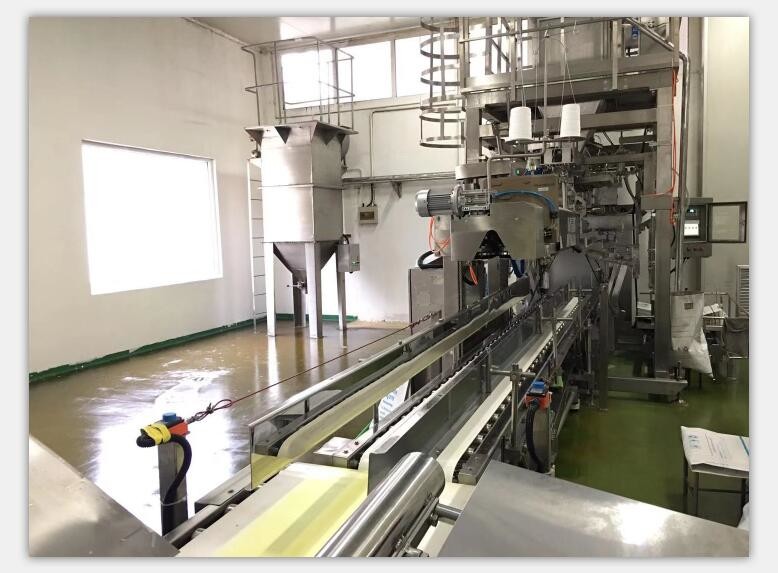

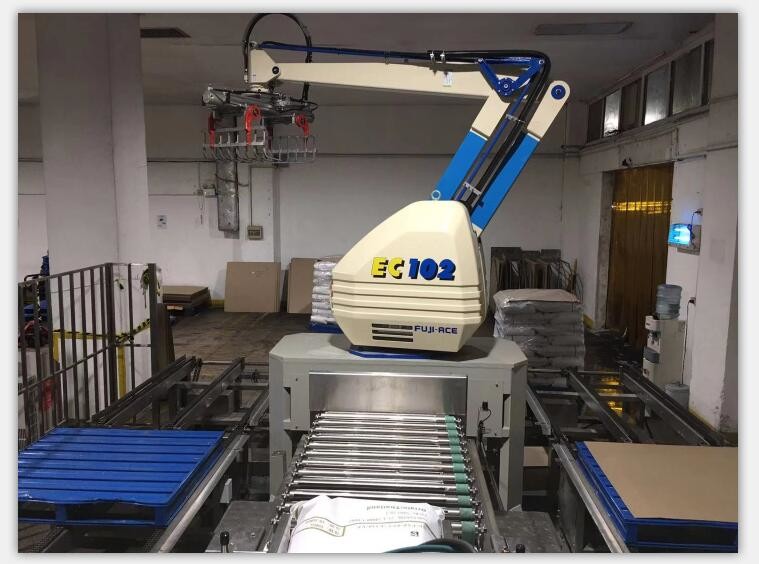

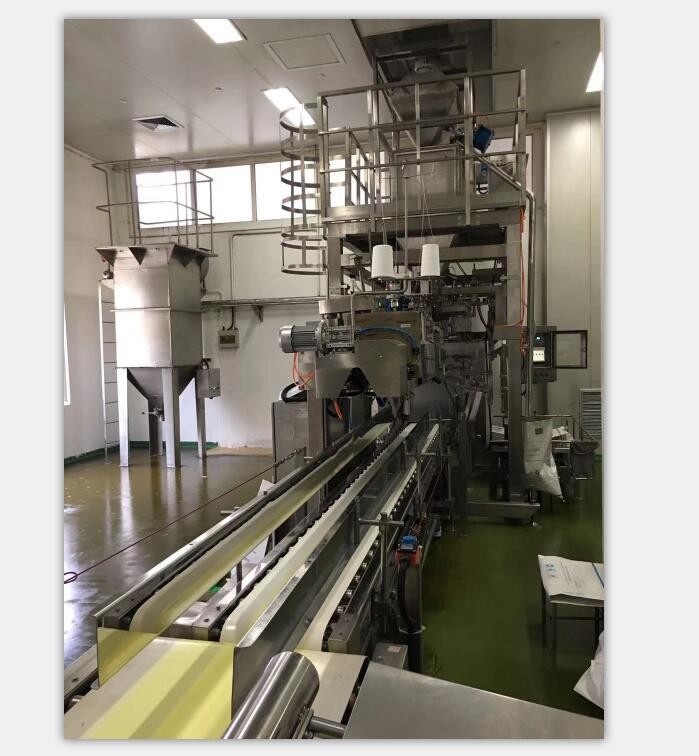

25kg Bagging and Palletizing System
The parameter and function table of Open Mouth Bag Automatic Packing & Palletizing Line
|
DCS-25(GO7N)-TW-AL-H (multi-scale type for granule material) |
DCS-25(PO2N)-TW-AL-H (multi-scale type for powder material) |
|
|
Scope of application |
||
|
Suitable materials |
Granular material |
powder material with good flowability |
|
Suitable packing bag |
Open mouth bag |
Open mouth bag |
|
Feeding type |
Gravity |
screw |
|
Alternative feeding type |
vibration |
Belt |
|
Technical parameters |
||
|
Automatic supply bag machine |
１ | １ |
|
Number of packing scale |
２ | ２ |
|
Number of discharging material |
１ | １ |
|
Weighing range (Kg) |
10-50 | 10-50 |
|
Packing speed(bag/H) |
800-1200 | 600-1200 |
|
Packing Accuracy |
Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard) |
|
|
Automatic working progress |
||
|
Automatic bag supplying |
○ | ○ |
|
Automatic swing bag supplying |
○ | ○ |
|
Automatic quantitative packing |
○ | ○ |
|
Automatic bag sealing |
○ | × |
|
Automatic falling bag |
○ | ○ |
|
Automatic bag re-shaping |
○ | ○ |
|
Automatic metal detector |
○ | ○ |
|
Automatic weight checker |
○ | ○ |
|
Automatic rejector |
○ | ○ |
|
Automatic pallet supplying |
○ | ○ |
|
Automatic stacking |
○ | ○ |
|
Manual operation sequence |
||
|
add empty bags into empty bag magazine |
○ | ○ |
|
Move the bag which is rejected away. |
○ | ○ |
|
Add pallets into pallet magazine |
○ | ○ |
|
Move the full pallet away |
○ | ○ |
|
Safety protection |
||
|
Electrostatic grounding |
○ | ○ |
|
|
▲ | ▲ |
|
Stop packing when lose power |
○ | ○ |
|
Emergency stop |
○ | ○ |
|
Ex-proof |
▲ | ▲ |
|
Mark: “○”is standard function；“▲”is choose function ；“×”is not has function |
||
Main specialty
Open Mouth Bag Automatic Packing & Palletizing for granule and powder material
