Automatic Weighing And Packing Sewing Machine 50 Kg Per Bag
1 Set
MOQ
Negotiation
Price
Automatic Weighing And Packing Sewing Machine 50 Kg Per Bag
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: CE, ISO9001:2015
Model Number: DCS-25
High Light:

open mouth bagging equipment

,

open mouth bagger

Payment & Shipping Terms
Packaging Details: Wood Pallet
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 90 Sets Per Month
Specifications
Name: Automatic Weighing And Packing Sewing Machine 50 Kg Per Bag
Used For: Particles
Brand: Sanhe
Certification: ISO9001:2015. CE
Drive: Electric
Packing Speed: 300 Bags Per Hour
Product Description

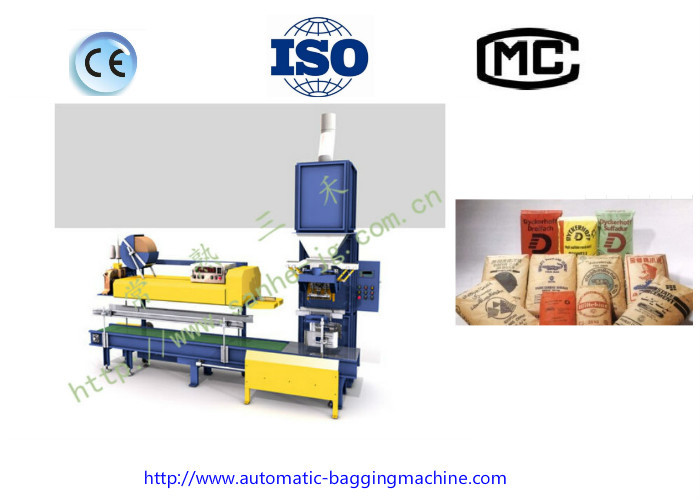

Automatic Weighing And Packing Sewing Machine 50 Kg Per Bag



A. What is 25 kg electronic packing scale:

Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.



B. Working principle of 25 kg electronic packaging scale:

When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;



At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.



The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.



C. Generally, a packing & palletizing line includes: Electric Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor ,Robot, Wrapping Machine ,Finished palletizing conveyor.



D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine



DCS-25(GO7N)Net Weight Type for Granules 25 Kg Packing Scale Machine 0

DCS-25(GO7N)Net Weight Type for Granules 25 Kg Packing Scale Machine 1



The parameter and function table  :

  DCS-25(GO7N) Net weight type
Scope of application
Suitable materials Granular material or powder material with fine flowability
Suitable packing container Open mouth bag, box, barrel
Feeding type Gravity
Alternative feeding type Vibrator
Technical parameters
Weighing range(Kg) 25 kg
Packing speed(bag/H) 160-180bag/H ( Gross weight ) 200-300bags/H ( Net weight )
Packing Accuracy

Generally ( +/- ) 0.2% FS, 2δ

(Note: special materials shall depend on the industrial standard)



Product Characteristics .

Used For particles .

Divided into fast Feeding slow Feeding .

It can be divided into: net weight and gross weight .

Configure the machine according to the packing speed required by the customer .

General bag clamping mechanism .

Feeding way: Air cylinder or servo to control arc door .

Machine material is divided into: contact material part is SS304, others are carbon steel painting. Or customized according to customer requirements .
Packing speed : 160-180bag/H ( Gross weight ) 200-300bags/H ( Net weight )
Packing Accuracy : Generally ( +/- ) 0.2% FS, 2δ





Minimum order quantity: 1 set, FOB Shanghai

Delivery time: fast delivery

Warranty: 12 months following delivery. We offer online service 24 hours all day long

You can contact us any time, if urgently, please call us.





Q: What’s the package ?

A: Most of goods are packed in wooden pallet.





Q: Do you offer Installation & debugging?

A: Our engineers are available to service machinery overseas to help customers to solve machine problems. relative fees need to be paid.



Q: What’s policy for guarantee and broken parts ?

A: As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.







Automatic Weighing And Packing Sewing Machine 50 Kg Per Bag 2



operation flow chart.
1. load on bag
2. peeling weight
3. fast feeding
4. slow feeding
5. finish filling
6. seal / sew bag mouth


the following optional operation :
1. metal detection ,
2. weight checker ,
3. remove the bag with weight over error,
4. inkjet printer ,
5. automatic palletizer,
6. auto pallet wrap machine / stretch hood machine





DCS-25GO7N)

net weight type for granules

DCS-25(PO2G)

Gross weight type for granules

DCS-25(PO2N)

Net weight type for powder

DCS-25(PO4G)

Vertical screw type



Scope of application



Suitable materials



Granular material or powder material with fine flowability



powder material or Fine powder



powder material



Easy to bridging or raised dust of ultrafine powder



Suitable packing container



Open mouth bag, box, barrel



Open mouth bag, box, barrel



Open mouth bag, box, barrel



Open mouth bag, box, barrel



Feeding type



Gravity



horizontal screw



horizontal screw



Vertical screw



Alternative feeding type



Vibrator



Vibrator, belt



Vibrator, belt

×



Technical parameters



Weighing range

1-100 10-50 10-50 1-50



Packing speed(bag/H)

300-800 100-200 100-500 100-180



Packing Accuracy



Generally (+/- )0.2% ( Note: special materials shall depend on the industrial standard )



Control function



Automatic tare



Automatic quick and slow feeding



Automatic free fall compensation



Automatic minus deviation

Automatic over weight alarms
diagnosis failure



Manual/Automatic mode conversation



Communication port



Regulatory function

Manual adjusting the height of bag
Important auxiliary function
Arch break function of hopper ×
Vibration at the bottom of the bag
Powder protection
Inflatable seal
Negative pressure dusting(not contain duster)
Valve for leak-proof ×



Safety protection

Electrostatic grounding
ionic wind remove static
when lose power
Emergency stop

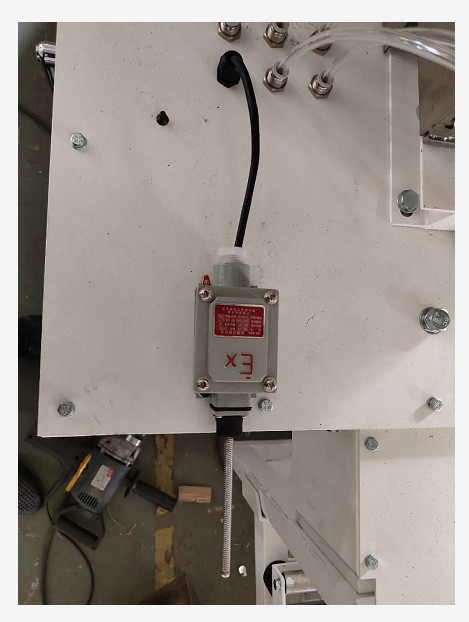

Ex-proof
Original mode DCS-25 DCS-25FW DCS-25F DCS-25FL
Mark: “○”is standard function;“▲”is choose function ;“×”is not has function



Main specialty

  • Scope of application: Granular material or powder material of Packing bags(boxes and pails)
  • Can be made into twin-type pakcer(except DCS-25(GO7N)和DCS-25(PO4G))
  • Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.
