Aquatic Feed Big Bag Weighing Packing Machine For 25Kg PP Woven Bag
Sanhe OAPL auto powder bag-feeding packing machine (hereinafter to be referred as Sanhe OAPL) is developed specifically for powder products which made in agro and food industry. This machine can realize automatic bag-feeding, products filling, bag air suck ,bag belt conveyor and outside bag sewing, etc.
This unit consists of one set elevator, one set automatic weighing machine, one set bag-feeding packing machine, one set automatic sewing machine and one set conveyor.
Control system: PLC and touch screen
product lifting, measuring, filling, bag-opening, sealing and output.
Scope of application:
Chemical industry, feed,grain etc. fields ,large bag packaging for powder material.
1. Automatic weighing,automatic bag giving,automatic sewing ,do without manual operation.
2. Touch screen controling,human-computer interface is well.
Products to be packed:
1) Powder name: powder
2) Bulk Density: 0.24 -0.40 kg/cubic meter
3) packing size: 25-50kg per bag
4) powder size: <110 micrometer
5) characteristic: powder very fine and dusty and fluffy.
6) Bag Size: woven bag - 23" x 37" inch

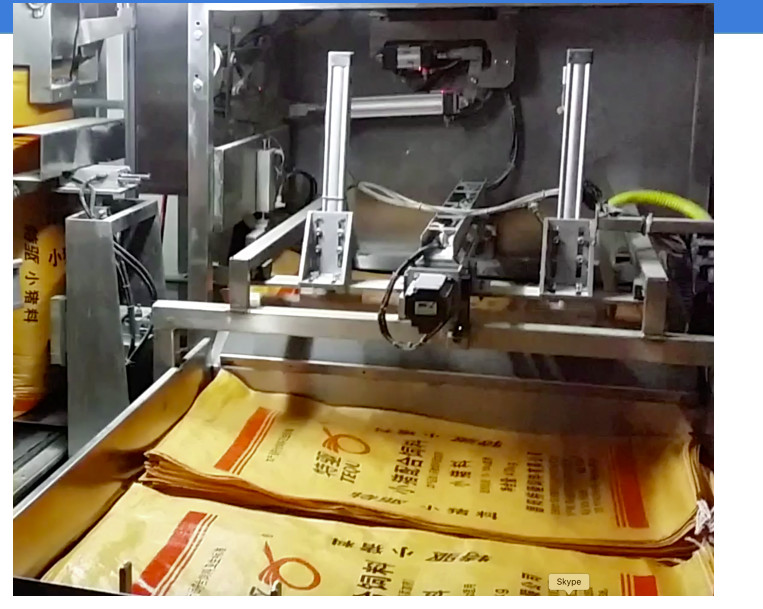

1. Automatic empty bag supply
2. Automatic weighing /filling
3. The bag clamping system will be down step by step when powder filling, to decrease the dust happing.
4. Automatic bag sealing device for PE /laminated bag;
|Packaging bag||premade PE/Laminated bag|
|Air source/compressed air||0.5~0.7Mpa|
|Power||5.0KW 380V±10%, 50HZ|
|material||non-sticky chemical powdery material|
