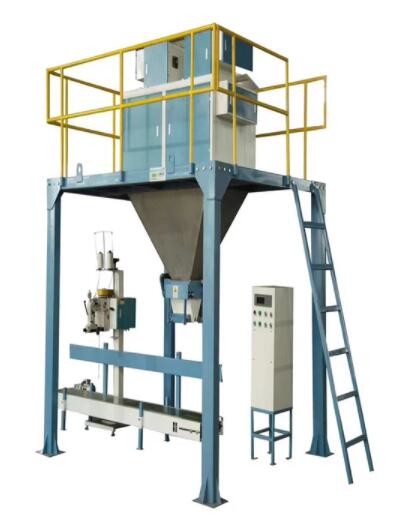

25kg powder metering packing machine

25kg powder metering packing machine

25kg powder metering packing machine
video
25kg powder metering packing machine
Product Details:
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: ISO9001:2015, CE
Model Number: DCS-25
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wood Pallet
Delivery Time: 90 days
Payment Terms: T/T
Supply Ability: 30 Sets Per Month
Contact Now
Detailed Product Description
Product Name: 25 Kg Bagging Machine Weighing Range: 25 Kg
Power Supply: Electric Accuracy: Generally (+/- )0.2%FS , 2δ
Origin: Suzhou Weight Range(kg): 300 Bags Per Hour
High Light:

25kg Powder Packing Machine

,

Powder Packing Machine 300Bags/Hour

,

Horizontal Screw Feeding 25Kg Bagging Machine

25kg powder metering packing machine



DCS-25 Packing Scale Bagging Machine 25 Kg Bag Filling Machine Load Bag By Manual 0
DCS-25 Packing Scale Bagging Machine 25 Kg Bag Filling Machine Load Bag By Manual 1



Quantitive Packing Machine Main specialty  :

Scope of application: Granular material or powder material of Packing bags(boxes and pails)

Can be made into twin-type pakcer (except DCS-25(GO7N) and DCS-25(PO4G))
Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.



The parameter and function table of our  Quantitive Packing Machine  :

  DCS-25 Gross weight type for granules
Scope of application
Suitable materials powder material or Fine powder
Suitable packing container Open mouth bag, box, barrel
Feeding type horizontal screw
Alternative feeding type Vibrator, belt
Technical parameters
Weighing range(Kg) 25
Packing speed(bag/H) 100-200
Packing Accuracy

Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)





Quantitive Packing Machine Application :

Advanced packing and filling machine for kinds of granule.

(1) Chemical: detergent, desiccant granule, dryer, cleaner grain, fertilizer…

(2) Food: sugar, salt, nuts, spice grain, bean, rice, seasoning grain…

(3) Medicine: granulated grains…



95% of China Silica (white carbon black) factory use our packing scale machine.







25kg powder metering packing machine 2









DCS-25GO7N)

net weight type for granules

DCS-25(PO2G)

Gross weight type for granules

DCS-25(PO2N)

Net weight type for powder

DCS-25(PO4G)

Vertical screw type



Scope of application



Suitable materials



Granular material or powder material with fine flowability



powder material or Fine powder



powder material



Easy to bridging or raised dust of ultrafine powder



Suitable packing container



Open mouth bag, box, barrel



Open mouth bag, box, barrel



Open mouth bag, box, barrel



Open mouth bag, box, barrel



Feeding type



Gravity



horizontal screw



horizontal screw



Vertical screw



Alternative feeding type



Vibrator



Vibrator, belt



Vibrator, belt

×



Technical parameters



Weighing range

1-100 10-50 10-50 1-50



Packing speed(bag/H)

300-800 100-200 100-500 100-180



Packing Accuracy



Generally (+/- )0.2% ( Note: special materials shall depend on the industrial standard )



Control function



Automatic tare



Automatic quick and slow feeding



Automatic free fall compensation



Automatic minus deviation

Automatic over weight alarms
diagnosis failure



Manual/Automatic mode conversation



Communication port



Regulatory function

Manual adjusting the height of bag
Important auxiliary function
Arch break function of hopper ×
Vibration at the bottom of the bag
Powder protection
Inflatable seal
Negative pressure dusting(not contain duster)
Valve for leak-proof ×



Safety protection

Electrostatic grounding
ionic wind remove static
when lose power
Emergency stop
Ex-proof
Original mode DCS-25 DCS-25FW DCS-25F DCS-25FL
Mark: “○”is standard function;“▲”is choose function ;“×”is not has function



Main specialty

  • Scope of application: Granular material or powder material of Packing bags(boxes and pails)
  • Can be made into twin-type pakcer(except DCS-25(GO7N)和DCS-25(PO4G))
  • Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.
