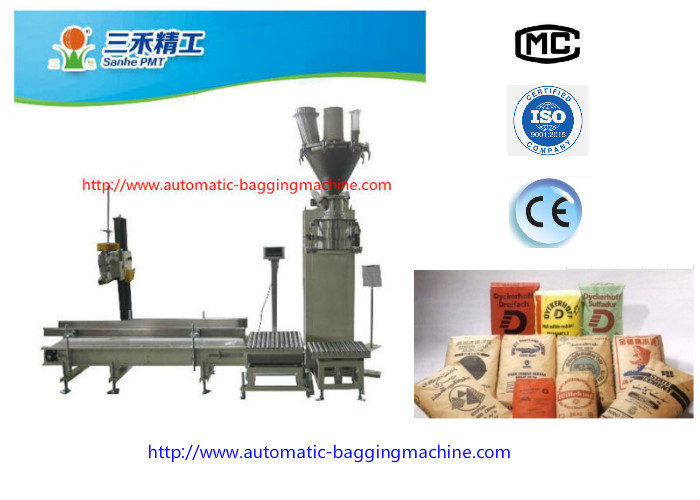

25 Kg Weighing Bagging Machine for PET Resin Bag Packaging
Main specialty of our 25 Kg Package Resin Bagging Machine :
Scope of application: Granular material or powder material of Packing bags(boxes and pails)
Can be made into twin-type pakcer(except DCS-25(GO7N)and DCS-25(PO4G))
Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.
The parameter and function table :
25 Kg Package Resin Bagging Machine | |
Scope of application | |
Suitable materials | Granular material or powder material with fine flowability |
Suitable packing container | Open mouth bag, box, barrel |
Feeding type | Gravity |
Alternative feeding type | Vibrator |
Technical parameters | |
Weighing range(Kg) | 25 Kg |
Packing speed(bag/H) | Packing speed 160-180bag/H(Gross weight) 200-300bags/H(Net weight) |
Packing Accuracy | Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard) |
25 Kg Package Resin Bagging Machine Operation flow chart :
load on empty bag--peeling weight--fast feeding--slow feeding--finish filling--seal / sew bag mouth
Optional operation for 25 Kg Package Resin Bagging Machine :
Metal detection ,
Weight checker ,
Kick un-uniform bag,
Printer ,
Automatic palletizer ,
Automatic pallet wrap machine ,
Product Characteristics of our 25 Kg Package Resin Bagging Machine :
Easy to operate and use
Bag-clamp equipment is advanced, material can be fully filled
Fill material system has material-stop equipment, accuracy high
Control, work parts all use imported parts, stable and reliable with sewing machine
Heat-sealing machine optional
Features & advantages of our 25 Kg Package Resin Bagging Machine :
1. Bag clamping
2. Fast feeding & slow feeding two Two gears
3. PLC technology of electronically automatic measurement , accurate measurement, dust free.
4. High speed
5. Machine Materials ( contact with the materials to be packed )
carbon steel.
304 stainless steel.
316L steel (Applicable to corrosive substances).
titanium steel (Suitable for highly corrosive substances).
6. Firm, durable , easy to use
7. Suitable for powder, granule and clump.
8. Various of types/colors/size/specifications for selection
9. Hot sold by manufacturer/support OEM and ODM with good quality & price
10. Customer first, integrity highest
FAQ of our 25 Kg Package Resin Bagging Machine .
Please Send us The Details We Required :
1. Name of Material to Be Filled in Bag?
2. Weight Capacity of Single Bag ?
3. How Much Bag Fill Per Hour?
4. Your Materials Characte?
Automatic open mouth bag packing and palletizing line
Automatic valve bag packing and palletizing line
Automatic packing and palletizing line
Open mouth bag packing machine for granular
Open mouth bag packing machine for powder
Valve bag packing machine for granular
Valve bag packing machine for powder
Big bag packing machine
Big bag unloading station
Liquid filling machine
Various conveyors
DCS-25GO7N) net weight type for granules |
DCS-25(PO2G) Gross weight type for granules |
DCS-25(PO2N) Net weight type for powder |
DCS-25(PO4G) Vertical screw type |
|
Scope of application |
||||
Suitable materials |
Granular material or powder material with fine flowability |
powder material or Fine powder |
powder material |
|
Suitable packing container |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Feeding type |
Gravity |
horizontal screw |
horizontal screw |
Vertical screw |
Alternative feeding type |
Vibrator |
Vibrator, belt |
Vibrator, belt |
× |
Technical parameters |
||||
Weighing range |
1-100 | 10-50 | 10-50 | 1-50 |
Packing speed(bag/H) |
300-800 | 100-200 | 100-500 | 100-180 |
Packing Accuracy |
Generally (+/- )0.2% ( Note: special materials shall depend on the industrial standard ) |
|||
Control function |
||||
Automatic tare |
○ | ○ | ○ | ○ |
Automatic quick and slow feeding |
○ | ○ | ○ | ○ |
Automatic free fall compensation |
○ | ○ | ○ | ○ |
Automatic minus deviation |
▲ | ▲ | ▲ | ▲ |
Automatic over weight alarms |
○ | ○ | ○ | ○ |
diagnosis failure |
○ | ○ | ○ | ○ |
Manual/Automatic mode conversation |
○ | ○ | ○ | ○ |
Communication port |
▲ | ▲ | ▲ | ▲ |
|
||||
Manual adjusting the height of bag |
○ | ○ | ○ | ○ |
Important auxiliary function |
||||
Arch break function of hopper |
× | ○ | ○ | ○ |
Vibration at the bottom of the bag |
▲ | ▲ | ▲ | ▲ |
Powder protection |
||||
Inflatable seal |
▲ | ▲ | ▲ | ▲ |
Negative pressure dusting(not contain duster) |
▲ | ○ | ○ | ○ |
Valve for leak-proof |
× | ▲ | ▲ | ▲ |
Safety protection |
||||
Electrostatic grounding |
▲ | ▲ | ▲ | ▲ |
▲ | ▲ | ▲ | ▲ | |
when lose power |
○ | ○ | ○ | ○ |
Emergency stop |
○ | ○ | ○ | ○ |
Ex-proof |
▲ | ▲ | ▲ | ▲ |
Original mode |
DCS-25 | DCS-25FW | DCS-25F | DCS-25FL |
Mark: “○”is standard function;“▲”is choose function ;“×”is not has function |
