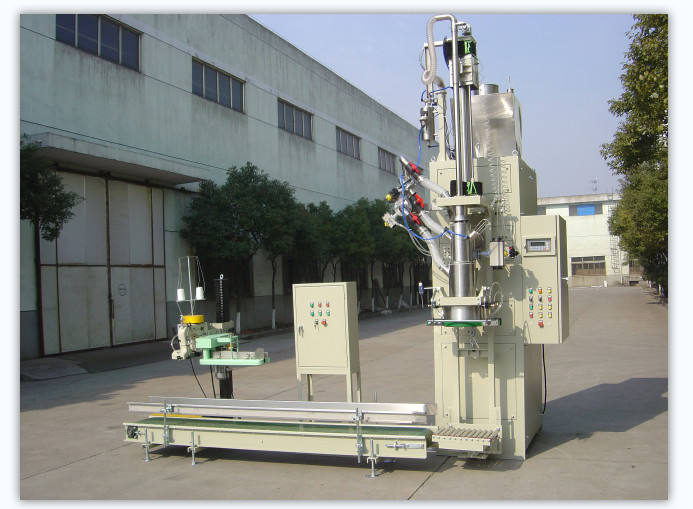

25kg Automatic Powder Bag Filling Sewing Machine
1 Set
25kg Automatic Powder Bag Filling Sewing Machine
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: ISO9001:2015, CE
Model Number: DCS-25P
High Light:

Semi Automatic 25Kg Bagging Machine


Food Additive 25Kg Bagging Machine


Potassium Sorbate 25Kg Bagging Machine

Payment & Shipping Terms
Packaging Details: Wood pallet , The pallet size is customized according to different products
Delivery Time: 90 days
Payment Terms: T/T
Supply Ability: 30 Sets Per Month
Product Name: 25 Kg Bag Food Additive Powder Packing Machine
Weighing Range: 25 Kg / Bag
Speed: 100-200 Bags Per Hour
Warranty: 1 Year
Power KW: 3 KW
Automatic Level: Semi-automatic
Product Description

25kg Automatic Powder Bag Filling Sewing Machine


A. What is 25 Kg Bag Food Additive Powder Packing Machine for Potassium sorbate:

Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.


The parameter and function table of 25 Kg Bag Food Additive Powder Packing Machine



(exhausting type)


(screw type)


(airflow type)


(horizontal impeller)


(vertiacl impeller)


Scope of application


Suitable materials


Powder and ultrafine powder of good Air affinity


Powder and thin granule


Powder and thin granule


Powder and ultrafine powder


Powder and ultrafine powder


Suitable packing container

Upper and lower spiral air supply single screw air flow Horizontal impeller Vertical impeller


Technical parameters


Weighing range(Kg)

10-50 10-50 10-50 10-50 10-50


Packing speed(bag/H)

30-180 30-120 30-200 30-250 30-250


Packing Accuracy


Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)


Control function


Automatic tare


Automatic quick and slow feeding


Automatic free fall compensation


Automatic minus deviation

× ×


Automatic over weight alarms


Automatic self diagnosis failure


Manual/Automatic mode conversation


Communication port


Regulatory function


Manual adjusting the height of bag


Suit for open and valve bag function


Important auxiliary function


Blow bag function in advance


Arch break function of hopper


Vibration at the bottom of the bag


Powder protection


Inflatable seal

× × ×


Negative pressure dusting(not contain duster)


Automatic blow valve mouth



Safety protection


Electrostatic grounding


ionic wind remove static


Stop packing when lose power


Emergency stop




Mark: “○”is standard function;“▲”is choose function ;“×”is not has function


main features of 25 Kg Bag Food Additive Powder Packing Machine for Potassium sorbate  :

*25 kg Bag Food Additive Powder Packing.

*Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine.


B. Working principle of 25 Kg Bag Food Additive Powder Packing Machine for Potassium sorbate  :

When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;


At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.


The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.



Advantages of 25 Kg Bag Food Additive Powder Packing Machine  for Potassium sorbate:

High accuracy
Easy clean out and maintence
After the machine installs you get hands on training and documentation
The air flow feed system is capable of high production rates while maintaining good accuracies.
Operator friendly easy set
Universal and industrial components give the machinery extra long life
Manufactured to comply above and beyond international standards
PLC controller interface
The flexible and modular Packaging System


Operation flow chart :

load on bag--peeling weight--fast feeding--slow feeding--finish filling--seal / sew bag mouth


Optional operation :

Metal detection ,

Weight checker ,

Kick un-uniform bag,

Printer ,

Automatic palletizer ,

Automatic pallet wrap machine ,


Technical Parameter 25 Kg Bag Food Additive Powder Packing Machine for Potassium sorbate:

Quantitative range (Kg): 5Kg - 50 Kg

Packing speed (package/hour): 30-250 Bag per hour

Packaging Accuracy: Generally (+) 0.2% (Note: Special materials according to national or industry standards)


FAQ of
25 Kg Bag Food Additive Powder Packing Machine for Potassium sorbate

The follwing questions for us to help you find what you want ?

1, The material you want to pack and its size(μm, mm), bulk density(kg/m3)

2, Packing weight (kg/bag), capacity (t/day)

3, Detailed description of production line

Our core products is :

Semi Automatic 25 Kg Bag Food Additive Powder Packing Machine for Potassium sorbate
Big bag packing machine. 5 kg-50 kg.
Ton bag pack machine.
Ton bag discharger.
10L-1000L liquid filling machine.
Palletizing Line.

It sales well in China and overseas market.
Sanhe--A wellknown packing and palletizing manufacture from China
