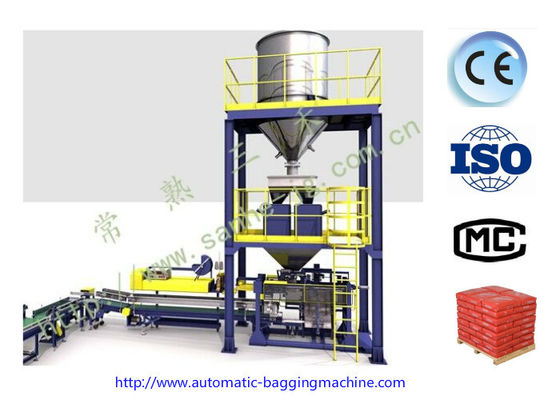

JMD-500 25 Kg Bagging Machine 25 Kg Batching Hopper Scale Weighing Digital Indicator,Weighing Process Controller

JMD-500 25 Kg Bagging Machine 25 Kg Batching Hopper Scale Weighing Digital Indicator,Weighing Process Controller

JMD-500 25 Kg Bagging Machine  25 Kg Batching Hopper Scale Weighing Digital Indicator,Weighing Process Controller
video
JMD-500 25 Kg Bagging Machine  25 Kg Batching Hopper Scale Weighing Digital Indicator,Weighing Process Controller
Product Details:
Place of Origin: CHINA
Brand Name: Sanhe
Certification: CE, ISO9001:2015
Model Number: JMD-500
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wood Pallet
Delivery Time: Negotiation
Payment Terms: T/T, L/C
Supply Ability: 90 Sets Per Month
Contact Now
Detailed Product Description
Product Name: 25 Kg Bagging Machine Function: Packing
Brand: Sanhe Certification: ISO.CE
Drive: Electric Port: Shanghai
High Light:

bulk bag filling equipment

,

25 kg bag packing machine

JMD-500 25 Kg Bagging Machine 25 Kg Batching Hopper Scale Weighing Digital Indicator,Weighing Process Controller


A. What is 25 kg electronic packing scale:

Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.





B. Working principle of 25 kg electronic packaging scale:

When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;



At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.



The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.





C. Generally, a packing & palletizing line includes: Electric Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor ,Robot, Wrapping Machine ,Finished palletizing conveyor.



D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine


The parameter and function table :
   JMD-500 Packing Machine
Scope of application
Suitable materials Granular material
Suitable packing container Open mouth bag
Feeding type Gravity
Alternative feeding type
Technical parameters
Weighing range(Kg)  25
Packing speed(bag/H) 800-1200
Packing Accuracy Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)




Our Services : Overseas Service Available
1, 12 months parts and labor is warranted on all equipment supplied by Sanhe
2, Sanhe Company recognises that providing great service, with great people on time.
3, Our company is committed to provide high quality, reliable products, customer service and support.


FAQ
1.Are all machinery your factory made?
Our factory make the packing machine and the relative machine.
2.Are you manufactory or trading company?
We are industrial manufacturer,Which located in Changshu City.It is very near to shanghai.If you arrive at shanghai ,we can pick you up to visit our factory.
3.Do you have any technical supports?
Yes,We have a professional team of engineers who owned many installation,debug and training experiences abroad,are available to service machinery overseas.
4.How can I know the machinery quality before I order?
We will invite you visiting our factory to check the machines quality,and show the machine running for you in our factory.If you don't have time to visit our factory we will record the video for you and try our best meet your requirement.We also can provide different test certificate as your requirement.



Our core products are:

25 Kg Bagging Machine

Automatic open mouth bag packing and palletizing line

Automatic valve bag packing and palletizing line

Automatic packing and palletizing line

Open mouth bag packing machine for granular

Open mouth bag packing machine for powder

Valve bag packing machine for granular

Valve bag packing machine for powder

Big bag packing machine

Big bag unloading station

Liquid filling machine

Various conveyors




It sales well in China and overseas market.
Sanhe--A wellknown packing and palletizing manufacture from China
