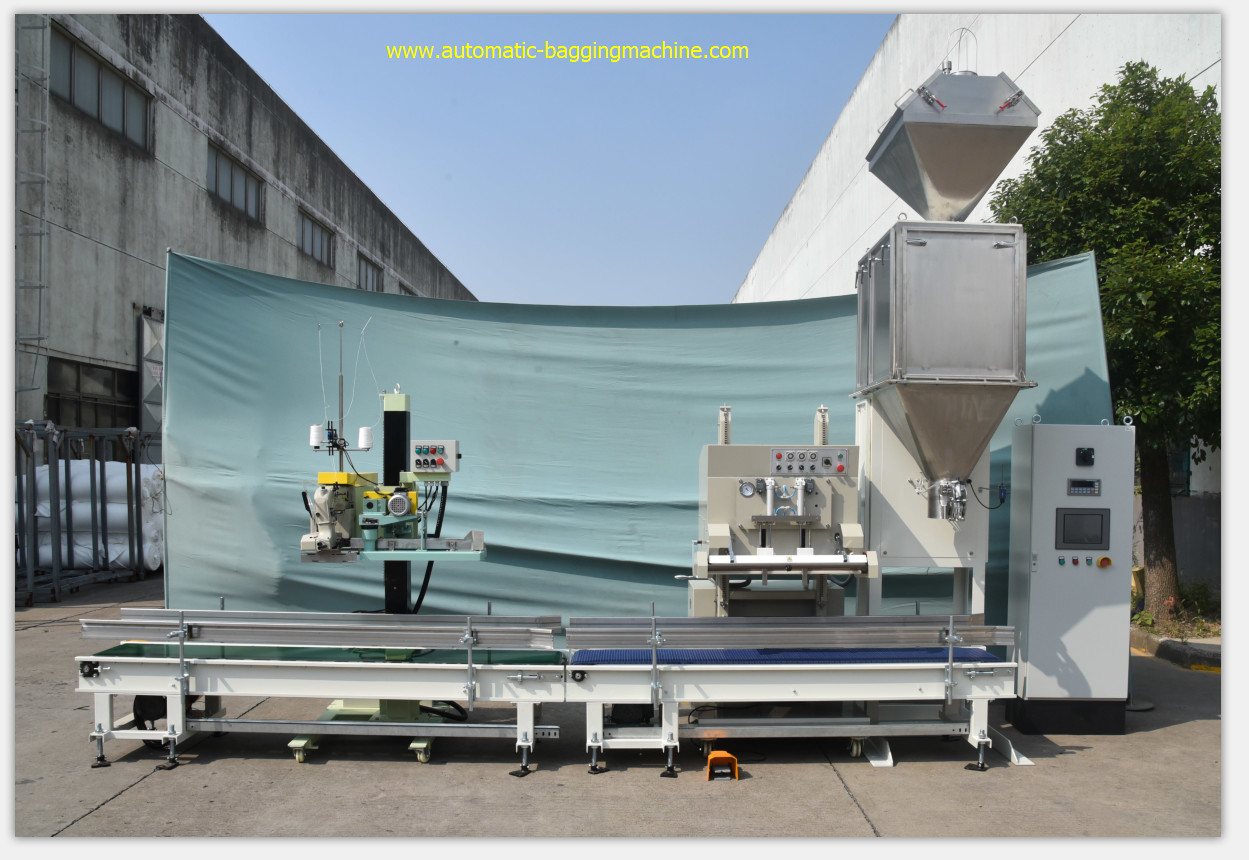

DCS-25 25 kg semi automatic ( open mouth bag ) packing & palletizing line

DCS-25 25 kg semi automatic ( open mouth bag ) packing & palletizing line

DCS-25 25 kg semi automatic ( open mouth bag ) packing & palletizing line
video
DCS-25 25 kg semi automatic ( open mouth bag ) packing & palletizing line
Product Details:
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: CE, ISO9001:2015
Model Number: DCS-25
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: 90 days
Packaging Details: Wood Pallet
Delivery Time: 90 Days
Payment Terms: T/T, L/C
Supply Ability: 90 Set Per Month
Contact Now
Detailed Product Description
Name: Open Mouth Bagging Machine Product: Packing Machine
Brand: SANHE Certification: ISO9001:2015. CE
Drive: Electric Port: Shanghai
High Light:

open mouth bagging equipment

,

open mouth bag filling machines

DCS-25 25 kg semi automatic ( open mouth bag ) packing & palletizing line



A. What is 25 kg electronic packing scale:

Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.





B. Working principle of 25 kg electronic packaging scale:

When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;



At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.



The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.





C. Generally, a packing & palletizing line includes: Electric Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor ,Robot, Wrapping Machine ,Finished palletizing conveyor.



D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine





The parameter and function table :

  DCS-25 Packing Machine
Scope of application
Suitable materials Granular material or powder material with fine flowability
Suitable packing container Open mouth bag, box, barrel
Feeding type Gravity
Alternative feeding type Vibrator
Technical parameters
Weighing weight(Kg) 25Kg
Packing speed 160-180bag/H(Gross weight)   200-300bags/H(Net weight)
Packing Accuracy

Generally ( +/- ) 0.2% FS, 2δ

(Note: special materials shall depend on the industrial standard)



Used for partical / granule packing .



Product Characteristics :

Easy to operate and use

Bag-clamp equipment is advanced, material can be fully filled

Fill material system has material-stop equipment, accuracy high

Control, work parts all use imported parts, stable and reliable with sewing machine

Heat-sealing machine optional




Component parts :
Buffer hopper
Filling mouth
Arc feeding mechanism
Vibrating feeder
Dust removal interface
Bag clamping device
Load cell
Bag holder





Relative machine :
Heat sealing machine
Heat seal conveyor
Sewing machine

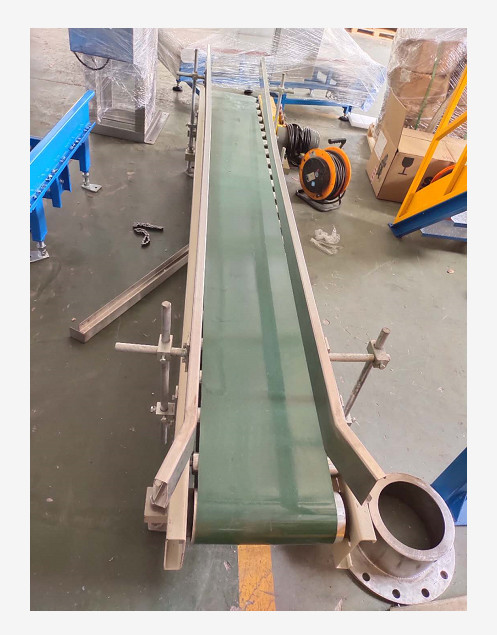

Sewing bag conveyor
Reshaping machine ( flatner )




It can realize the function of fast feeding and slow feeding, so ensure the accuracy of packing .



95% of China Silica ( white carbon black ) factory use our packing machine.
