|Place of Origin:||Suzhou|
|Model Number:||DCS-25 PV1(7)|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Wood Pallet|
|Delivery Time:||90 Days|
|Payment Terms:||T/T, L/C|
|Supply Ability:||90 Set Per Month|
|Name:||25 Kg Packing Scale||Fuction:||Weighing Filling Packing|
open mouth bagging equipment,
open mouth bag filling machines

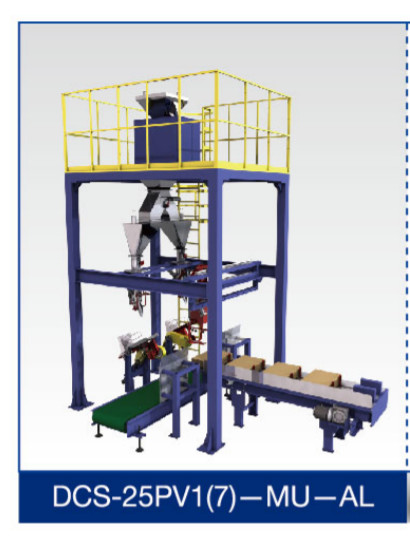

DCS-25 PV1(7) Valve mouth bag packing machine
feeding type : by gravity
A. What is 25 kg electronic packing scale:
Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.
B. Working principle of 25 kg electronic packaging scale:
When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;
At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.
The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.
C. Generally, a packing & palletizing line includes: Electric Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor ,Robot, Wrapping Machine ,Finished palletizing conveyor.
D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine
The parameter and function table :
|DCS-25 PV1(7) Valve mouth bag packing machine|
|Scope of application|
|Suitable materials||Granular material or powder material with fine flowability|
|Suitable packing container||valve mouth bag, box, barrel|
|Alternative feeding type||Vibrator|
|Weighing weight(Kg)||25 Kg|
|Packing speed||200-600 bag / H( Gross weight ) 200-300 bags / H ( Net weight )|
|Packing Accuracy||Generally ( +/- ) 0.2% (Note: special materials shall depend on the industrial standard )|
Product Characteristics :
Easy to operate and use
Bag-clamp equipment is advanced, material can be fully filled
Fill material system has material-stop equipment, accuracy high
Control, work parts all use imported parts, stable and reliable with sewing machine
Heat-sealing machine optional
Features & advantages :
1. Good service
2. Fast delivery
3. PLC technology of electronically automatic measurement , accurate measurement, dust free.
4. High pack speed
5. Reliable and durable, long lifecycle of spare parts.
6. Firm, durable, easy to use
7. Suitable for powder, granule and clump.
8. Various of types/colors/size/specifications for selection
9. Hot sold by manufacturer/support OEM and ODM with good quality & price
10. Customer first, integrity highest
|Automatic over weight alarms||○||○||○||○|
|Manual adjusting the height of bag||○||○||○||○|
|Important auxiliary function|
|Arch break function of hopper||×||○||○||○|
|Vibration at the bottom of the bag||▲||▲||▲||▲|
|Negative pressure dusting(not contain duster)||▲||○||○||○|
|Valve for leak-proof||×||▲||▲||▲|
|ionic wind remove static||▲||▲||▲||▲|
|when lose power||○||○||○||○|
|Mark: “○”is standard function；“▲”is choose function ；“×”is not has function|
