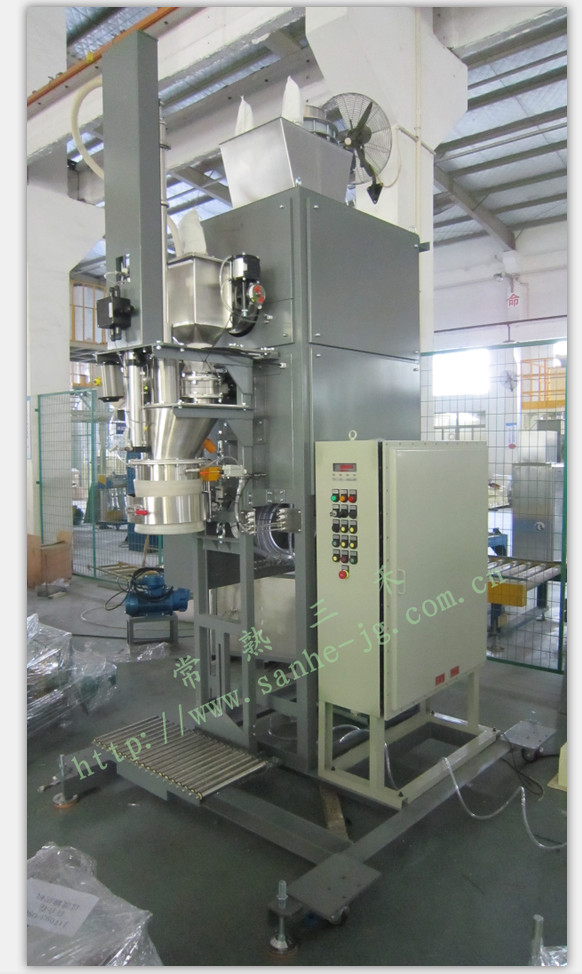

DCS-25FWG Suction Mouth Bag Packing Machine Carbon Black Bagging Machine

DCS-25FWG Suction Mouth Bag Packing Machine Carbon Black Bagging Machine

DCS-25FWG Suction Mouth Bag Packing Machine Carbon Black Bagging Machine
  • DCS-25FWG Suction Mouth Bag Packing Machine Carbon Black Bagging Machine
Product Details:
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: CE, ISO9001:2015
Model Number: DCS-25FWG
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: 90 days
Packaging Details: Wood Pallet
Delivery Time: 90 Days
Payment Terms: T/T, L/C
Supply Ability: 90 Set Per Month
Contact Now
Detailed Product Description
Name: Open Mouth Bagging Machine Used For: Powder And Thin Granule Of Good Air Affinity
Brand: Sanhe Certification: ISO9001:2015. CE
Drive: Electric Feeding Type: Screw / Air Flow Type
High Light:

open mouth bagging equipment

,

open mouth bag filling machines

DCS-25FWG Suction Mouth Bag Packing Machine Carbon Black Bagging Machine



A. What is 25 kg electronic packing scale:

Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.





B. Working principle of 25 kg electronic packaging scale:

When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;



At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.



The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.





C. Generally, a packing & palletizing line includes: Electric Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor ,Robot, Wrapping Machine ,Finished palletizing conveyor.



D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine





The parameter and function table :

  DCS-25FWG Packing Machine
Scope of application
Suitable materials Powder And Thin Granule of Good Air Affinity
Suitable packing container Open mouth bag, box, barrel
Feeding type Screw / Air flow type
Alternative feeding type
Technical parameters
Weighing weight(Kg) 25 Kg
Packing speed 20 - 60  bags/Hour
Packing Accuracy Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)



Used for Nanometer zinc oxide industry etc.




Component parts :
Buffer hopper
Filling mouth
Arc feeding mechanism
Vibrating feeder
Dust removal interface
Bag clamping device
Load cell
Bag holder





Relative machine :
Heat sealing machine
Heat seal conveyor
Sewing machine
Sewing bag conveyor
Reshaping machine ( flatner )




It can realize the function of fast feeding and slow feeding, so ensure the accuracy of packing .





Please Send us The Details for Quatation :

The material (to be packed) parameter :
A. Product name ?
B. Diameter of the material (um or mm) ?
C. Form of product ( Granule or powder ) ?
D. Bulk density(ton/m3) ?
E. Flow ability ?
F. Moisture absorption ?
G. Causticity ?
H. Toxicity ?
I. Degree of ex-proof protection for the packing machine parts ?


Packing Paramete :
A. Packing speed (bag/hour) ?
B. Packaging weight per bag ( KG/bag ) ?
C. Weighing accuracy ?


Bag/Bucket Parameter :
A. Open mouth bag or valve type bag?
B. What material of the Bag/Bucket, PP bag, PE bag, Nylon Bag, Kraft paper, Paper-plastic composite (inner is plastic, outer is paper) ?
C. Bag size: width*height ( mm ) ?
D. Coiled bags or separate bags ?


After get the above parameter, we can quote you a very good price
