DCS-25PV5 Bagging Machine Valve Bag Packer Vertical Impeller Feeder

DCS-25PV5 Bagging Machine Valve Bag Packer Vertical Impeller Feeder

DCS-25PV5 Bagging Machine Valve Bag Packer Vertical Impeller Feeder
  • DCS-25PV5 Bagging Machine Valve Bag Packer Vertical Impeller Feeder
  • DCS-25PV5 Bagging Machine Valve Bag Packer Vertical Impeller Feeder
Product Details:
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: ISO9001:2015, CE
Model Number: DCS-25PV5 Powder's Valve Bag Packer
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wood Pallet
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: 90 Sets Per Month
Contact Now
Detailed Product Description
Product Name: Bagging Machine Function: Valve Bag Weighing Filling Packing
Power Supply: Electric Weighing Accuracy: Generally (+/- ) 0.5%
Weighing Range(kg): 25 Kg Suite For: Non-sticky Powder With High Bulk Density .
High Light:

auto bagging weighing machine

,

automatic bag filling machine

DCS-25PV5 Bagging Machine Valve Bag Packer Vertical Impeller Feeder

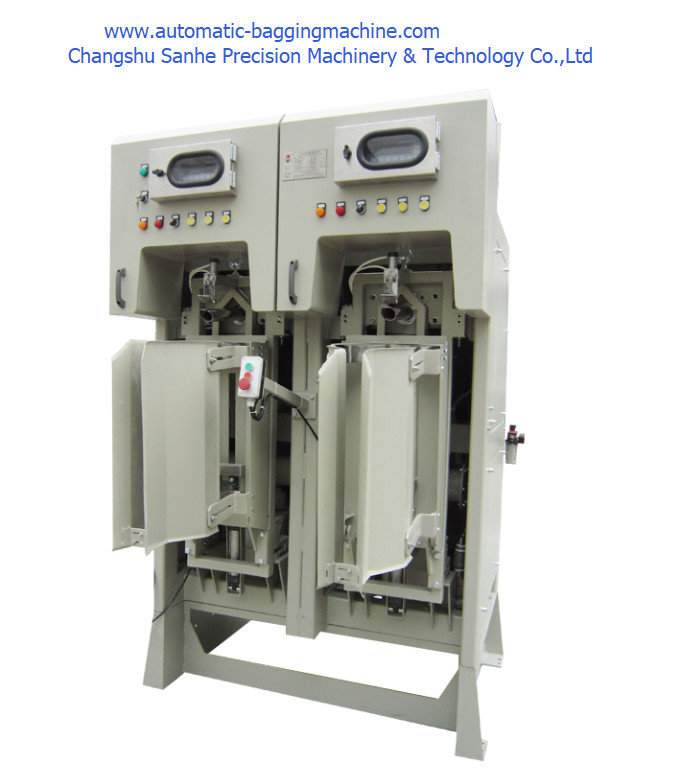

Powder’s Valve Bag Packer ( Vertical Impeller Feeder Type) for Non-sticky Powder With High Bulk Density



Broad Category: Valve Bag Packer



Name: DCS-25PV5 Powder’s Valve Bag Packer ( Vertical Impeller Feeder Type)

DCS-25PV5 Bagging Machine Valve Bag Packer Vertical Impeller Feeder 0

DCS-25PV5 Bagging Machine Valve Bag Packer Vertical Impeller Feeder 1





A. What is the 25 kg packing machine ?

It is used to transport materials (normally powder or granule ) from the silo to the packaging container, and it also has the function of weighing,



B. Discription of 25 Kg packing machine ?

Electronic quantitative packaging scale is a combination of electronic scale and automatic control. It weighs when feeding until it is close to the preset packaging value. The computer quantitative packing scale is composed of several independent weighing units with the structure of feeding and discharging. The computer quantitative packing scale is suitable for the quantitative packing of 25kg-50kg, and the electronic quantitative packing scale is widely used.



C. Application of 25Kg packing machine:

Powder quantitative packaging machine is suitable for the quantitative packaging of powder, powder and powder materials in chemical, food, agricultural and sideline products industries, such as milk powder, starch, pesticide, veterinary medicine, premix, additive, condiment, feed, enzyme preparation, etc.; powder quantitative packaging machine is a combination of machine and instrument, controlled by single chip microcomputer, with automatic quantitative, automatic filling and automatic adjustment of measurement error Etc.



D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine







1.Scope of application  :
1)Applicable material:

 Non-sticky powder with high bulk density .



2)Applicable filling containers
 Paper bag or film bags and woven bags with breathable micropores .







2. Technical parameters :



Packer Model

DCS-25PV5

( Vertical Impeller Feeder Type)



Capacity ( Bags / Hour )



100-300



Packing Target Weighing Range(Kg)



15-50



Weighing Accuracy



±0.5% @2δ





3. Functions and Characteristics  :



1) Gross wight type;


2) Vertical impeller feeder;


3) High weighing accuracy is guaranteed by the load cell and digital weighing controller;


4) High degree of automation, automatic taring , automatic filling, automatic weighing, automatic dedustingiing, easy to operate;


5) Equipped with dedusting mechanism ;



Valve Bag Packer



The parameter and function table of the valve bag packer:



DCS-25PV1(1)

(exhausting type)

DCS-25PV1(2)

(screw type)

DCS-25PV1(3)

(airflow type)

DCS-25PV1(5)

(horizontal impeller)

DCS-25PV1(6)

(vertiacl impeller)



Scope of application



Suitable materials



Powder and ultrafine powder of good Air affinity



Powder and thin granule



Powder and thin granule



Powder and ultrafine powder



Powder and ultrafine powder



Suitable packing container

Upper and lower spiral air supply single screw air flow Horizontal impeller Vertical impeller



Technical parameters



Weighing range(Kg)

10-50 10-50 10-50 10-50 10-50



Packing speed(bag/H)

30-180 30-120 30-200 30-250 30-250



Packing Accuracy



Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)



Control function



Automatic tare



Automatic quick and slow feeding



Automatic free fall compensation



Automatic minus deviation

× ×



Automatic over weight alarms



Automatic self diagnosis failure



Manual/Automatic mode conversation



Communication port



Regulatory function



Manual adjusting the height of bag



Suit for open and valve bag function



Important auxiliary function



Blow bag function in advance



Arch break function of hopper



Vibration at the bottom of the bag



Powder protection



Inflatable seal

× × ×



Negative pressure dusting(not contain duster)



Automatic blow valve mouth

×



Safety protection



Electrostatic grounding



ionic wind remove static



Stop packing when lose power



Emergency stop



Ex-proof



Mark: “○”is standard function;“▲”is choose function ;“×”is not has function





main features:

*valve bag packing for Powder and ultrafine powder.

*Can be twin-type packer

*Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.
