25Kg Bag Powder Packing Scale Machine With Conveyor Weighing Bagging
1 Set
MOQ
Negotiation
Price
25Kg Bag Powder Packing Scale Machine With Conveyor Weighing Bagging
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Suzhou
Brand Name: Sanhe
Certification: CE, ISO9001:2015
Model Number: DCS-25FW
High Light:

Bagging Powder Packing Scale Machine

,

Electric Powder Packing Scale Machine

,

25Kg Bag Powder Packing Scale Machine

Payment & Shipping Terms
Packaging Details: wooden pallet
Delivery Time: 90 Days
Payment Terms: T/T,
Supply Ability: 30 Set Per Month
Specifications
Name: Powder Packing Scale Machine
Brand: Sanhe
Certification: ISO9001:2015. CE
Function: Weighing Filling Packing
Drive: Electric
Port: Shanghai
Product Description

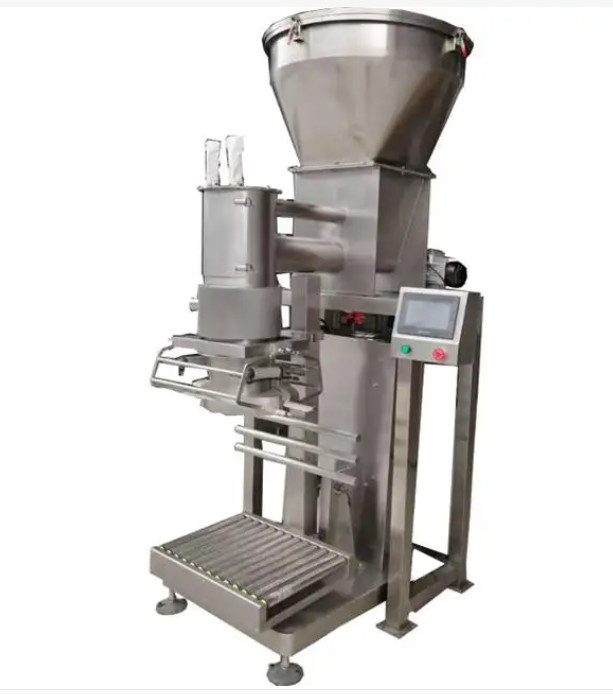

SanhePMT Powder Packing Scale Machine with Conveyor and Sewing Machine for 25Kg Bag Powder Weighing Filling Bagging

SanhePMT DCS-25FW packaging scale is a new generation of Intelligent Particle quantitative packaging scale developed according to the requirements of customers. It is divided into two models: single bucket packaging scale and double bucket packaging scale.

It is applicable to the quantitative packaging of grain crops such as wheat, corn, soybean, rice, rice, miscellaneous grains, feed, chemical industry, starch, chemical fertilizer and so on. It has the advantages of high speed, high precision and low labor cost. It facilitates enterprise management, saves expenses and reduces consumption, improves work efficiency, brings rich economic profits to our customers, and greatly meets the needs of customers.



Main technical parameters of the Powder Packing Scale Machine:

Feeding type:
screw feeding
Packaging target weight range(Kg)
15 to 50 kg
Packing speed:
4-12 bags/minute
Packaging accuracy:
±0.2%
Air source pressure:
0.55~0.7 Mpa
Air source consumption:
0.3N m3/min
Weighing method:
load cell
Frequency/voltage:
50Hz/60Hz/ 380V /400V (can be negotiation)
Equipped with power:
3 kw
Dimensions:
length 800 × width 900 × height 2200 (or 2700 including the height of the silo) (mm)

Main technical parameters of the Powder Packing Scale Machine:

The automatic weighing device of the sewing machine is mainly composed of computer control system. It has the characteristics of reasonable structure, beautiful appearance, stable operation, energy and power saving, easy operation, fast weighing and accurate measurement.

The main machine adopts fast self flow blanking and bucket metering. Advanced frequency conversion technology is used for small-scale feeding metering. Advanced digital frequency conversion control technology and anti-interference technology, and realize automatic error compensation and correction.


Operation flow chart of our Powder Packing Scale Machine:

25Kg Bag Powder Packing Scale Machine With Conveyor Weighing Bagging 0



The following optional operation of our Powder Packing Scale Machine:

1. metal detection ,

2. weight checker ,

3. remove the bag with weight over error,

4. inkjet printer ,

5. automatic palletizer,

6. auto pallet wrap machine / stretch hood machine



ChangShu SanHe Precision Machinery & Technolgoy Co.,Ltd is a technological enterprise which is professional engaged in research, development, manufacture and sale of solid and powder product (graininess product and powdery product ) packaging machine, liquid filling machine, automatic packing(filling) and & palletizer line. It’s products sell well home and abroad ,and are already widely used in chemical,petrochemical, fine chemical, medicine, fertilizer, plastics, rubber, dyestuff, food, feed, non-ferrous metals, metallic minerals, nonmetallic minerals, building material industries etc.

25Kg Bag Powder Packing Scale Machine With Conveyor Weighing Bagging 1



Changshu Sanhe Precision Machinery & Technology Co.,Ltd. factory production line 3Changshu Sanhe Precision Machinery & Technology Co.,Ltd. factory production line 4



China Changshu Sanhe Precision Machinery & Technology Co.,Ltd. company profile 3



  ChangShu SanHe Precision Machinery & Technolgoy Co.,Ltd is a Jiangsu Province Hi-tech Enterprise, a Jiangsu Province Private Science & Technology Enterprise, It is a patented advanced of Jiangsu province. It won Chinese National Private Hi-tech Enterprise Innovation Prize in 2006,

and be already awarded ISO9001-2000 “Certificate of The System of Quality Certification” and “License for manufacturing measuring instruments of the People’s republic of China”(CMC). it has three Jiangsu Province Hi-tech Products . The enterprise has 104 employees , including 28 technicians.



China Changshu Sanhe Precision Machinery & Technology Co.,Ltd. company profile 4



China Changshu Sanhe Precision Machinery & Technology Co.,Ltd. company profile 5



China Changshu Sanhe Precision Machinery & Technology Co.,Ltd. company profile 6



China Changshu Sanhe Precision Machinery & Technology Co.,Ltd. company profile 7



China Changshu Sanhe Precision Machinery & Technology Co.,Ltd. company profile 8







SanhePMT Powder Packing Scale Machine with Conveyor and Sewing Machine for 25Kg Bag Powder Weighing Filling Bagging 4

China Changshu Sanhe Precision Machinery & Technology Co.,Ltd. company profile 10




If you are interested, Please Provide us The material (to be packed) parameter, so that we can make the proper Powder Packing Scale Machine layout for you:
A. Product name ?
B. Diameter of the material (um or mm) ?
C. Form of product ( Granule or powder ) ?
D. Bulk density(ton/m3) ?
E. Flow ability (Gravity self flow capacity)?
