Scope of application: chemical,petrochemical, fine chemical, medicine, fertilizer, plastics, rubber, dyestuff, food, feed, non-ferrous metals, metallic minerals, nonmetallic minerals, building material industries etc.
Weighing method: by load cell
Automatically start, Automatically tare, Automatically free fall compensation.
Process Description :
1. Robot give empty bag.
2. Bag peeling.
3. Fast feeding.
4. Slow feeding.
5. Finish fillinging.
6. Heat sealing bag mouth.
Packing parameter for automatic electronic quantitive packing Machine:
|Material ( to be packed )||Detergent powder|
|Particle size (mm):||125-180μm|
|Bulk density kg/m³ :||0.6-0.8|
|static electricity :||no|
|Packing speed (bag/hour)||50-100 bags/hour|
|Type of bag||Open mouth bag|
|Empty bag Dimensions(L×W×H)(mm)||To be confirmed|
Materials of automatic electronic quantitive packing Machine construction:
|Wetted parts contacted with product||SS304|
|wetted parts not contacted with product for packing machine||CS painted|
|wetted parts not contacted with product for others||CS painted|
|Flexible connection||Plastic or Rubber|
|Frame of conveyor||CS painted|
|Gear and chain||CS|
|Bolts & nuts for packing machine||SS304|
|Bolts & nuts for others||CS galvanized|

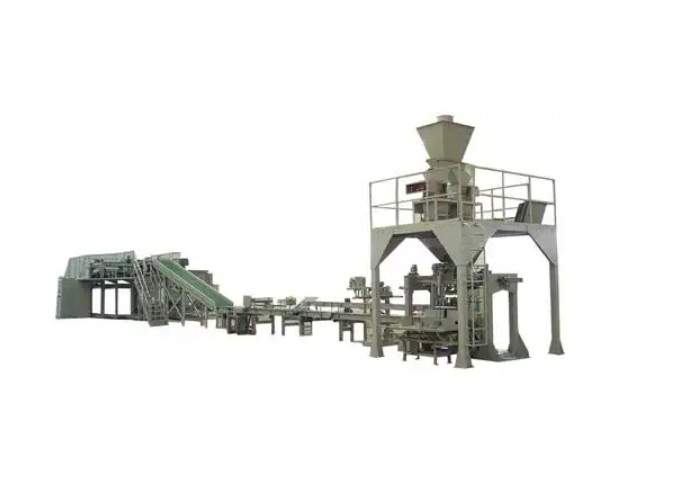

JMD-500 automatic packaging line are composed of:
||JMD-500 automatic electronic quantitive packing Machine||1|
||Automatic empty bag supply machine||1|
||Automatic heat sealing machine||1|
||conveyor for heat sealing machine||1|
||Push bag & reshaping conveyor||1|
||eliminate Bag machine||1|
||Ink-jet printer conveyor||1|
||Bag feeding conveyor||1|
||Conveyor for forklift||1|
||Control cabinet for conveyors||1|
and be already awarded ISO9001-2000 “Certificate of The System of Quality Certification” and “License for manufacturing measuring instruments of the People’s republic of China”(CMC). it has three Jiangsu Province Hi-tech Products . The enterprise has 104 employees , including 28 technicians.
**can you give a brief introduction of your factory ?
--we built in 1998, with 104 stuff now, China high-tech manufacture,
**whats your main products ?
1. 25 kg automatic ( open mouth bag ) weighing packing & palletizing line,
2. 25 kg automatic ( valve type bag ) packing & palletizing line,
3. ton bag packing machine.
4. liquid filling machine (10L-50L;/ 50L-250L; / 1500L)
5. Ton Bag Feeding Station Ton bag unpacking station.
6. stretch hood machine .
Frequently asked questions and answers :
**how many technic man do you have ?
--20 people .
**where is your factory locate?
--120 Km far north-west to shanghai city.
**what is the Annual output value of 2021 ?
--11,004,000 USD in 2021.
**what is your delivery time ?
-- normally 3 months for semi-automatic weighing bagging machine ; 4 months for the automatic bagging line;
**what certification do you have ?
--CE , ISO 9001 : 2015.
**what is the packing of products ?
--wooden pallet / wooden case.
**which port of yours ?
**whats your market ? donestic or export ? what percentage for export ?
--china market 90% , 10% export .
**what fair do you attend ?
--PROPAK, Food additives fair, chemical fair, Pharmaceutical fair...
**what countries do you export to now ?
--Pakistan,India,Thailand ,Malaysia ,USA, Philippine , Indonesia, South Korea, Algeria ...
**how many people in QC team ? how do you make QC control ? internal or thrid party ?
--2 QC, internal QC control.
**are you open for OEM /ODM ?
--yes , available.
