Name: Quantitative 5kg Weighing Packing Machine For Flour Packing
Brand: Sanhe
SKU: DCS-5

Features Gallery Product Description Request A Quote

Features

Basic Infomation

Place of Origin: Suzhou

Brand Name: Sanhe

Certification: CE, ISO9001:2015

Model Number: DCS-5

High Light:

Screw Feeding Powder Packing Scale Machine

Screw Feeding Weighing Bagging Machine

5kg Weighing Bagging Machine

Payment & Shipping Terms

Packaging Details: wooden pallet

Delivery Time: 90 Days

Payment Terms: T/T,

Supply Ability: 30 Set Per Month

Specifications

Name: Flour Packing Machine

Material: 304 Stainless Steel

Certification: ISO9001:2015. CE

Function: Weighing Filling Packing

Drive: Electric

Power: 1.95 Kw

Gallery

Product Description

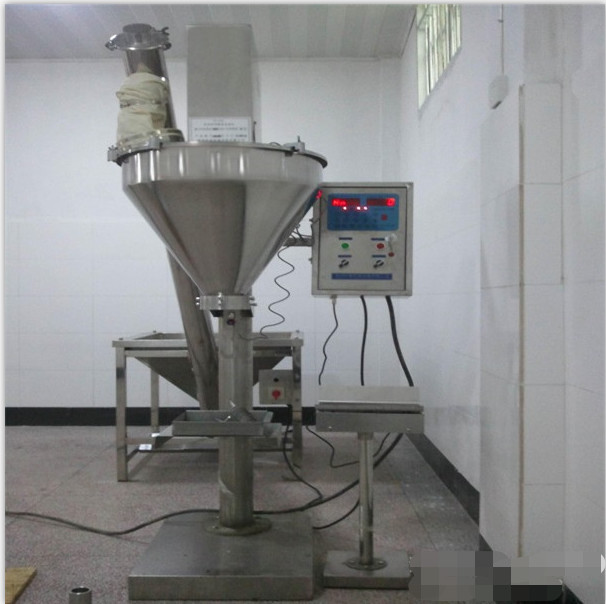

Quantitative 5kg Weighing Packing Machine For Flour Packing

DCS-5 computer quantitative packaging scale It is mainly composed of host computer, computer controller, electronic scale, etc. The main machine uses screw metering and stepping motor to control blanking. The measurement accuracy is accurate Convenient for equipment cleaning No plugging.

Flour Packing machine Main technical parameters :

Feeding type:	Screw feeding Flour Packing machine
Packaging target weight range(Kg)	0-5000 g
Flour Packing machine Packing speed:	7 ~ 25 bags / minute
Packaging accuracy:	± 1%
Air source pressure:	0.55~0.7 Mpa
Air source consumption:	0.3N m3/min
Weighing method:	load cell
Frequency/voltage:	50Hz/60Hz/ 380V /400V (can be negotiation)
Equipped with power:	1.95 kw
Flour Packing machine Dimensions:	length 800 × width 900 × height 2200 (or 2700 including the height of the silo) (mm)

Control method: single chip microcomputer control

Overall length, width and height: 850 * 850 * 1950

Weight: 280kg

★ warranty content

(1) Free warranty period: all products belonging to the company and product failures due to product quality shall be guaranteed for one year with the warranty form from the date of purchase.

(2) If it exceeds one year, it shall be charged for service, and the parts and calibration fees shall be charged according to the fault condition.

(3) In case of failure after five years of use, the company will provide services as usual.

(4) Non warranty scope: failure caused by improper installation, use and storage. Failure caused by failure to use power supply according to regulations. Failure caused by natural disasters, ground changes, rats and insects. Failure caused by self disassembly.

Flour Packing machine Operation flow chart :

The Flour Packing machine relative equipment :

1. metal detection ,

2. weight checker ,

3. remove the bag with weight over error,

4. inkjet printer ,

5. automatic palletizer,

6. auto pallet wrap machine / stretch hood machine

ChangShu SanHe Precision Machinery & Technolgoy Co.,Ltd is a technological enterprise which is professional engaged in research, development, manufacture and sale of solid and powder product (graininess product and powdery product ) packaging machine, liquid filling machine, automatic packing(filling) and & palletizer line. It’s products sell well home and abroad ,and are already widely used in chemical,petrochemical, fine chemical, medicine, fertilizer, plastics, rubber, dyestuff, food, feed, non-ferrous metals, metallic minerals, nonmetallic minerals, building material industries etc.

SanhePMT Powder Packing Scale Machine with Conveyor and Sewing Machine for 25Kg Bag Powder Weighing Filling Bagging 1

Changshu Sanhe Precision Machinery & Technology Co.,Ltd. factory production line 3

ChangShu SanHe Precision Machinery & Technolgoy Co.,Ltd is a Jiangsu Province Hi-tech Enterprise, a Jiangsu Province Private Science & Technology Enterprise, It is a patented advanced of Jiangsu province. It won Chinese National Private Hi-tech Enterprise Innovation Prize in 2006,

and be already awarded ISO9001-2000 “Certificate of The System of Quality Certification” and “License for manufacturing measuring instruments of the People’s republic of China”(CMC). it has three Jiangsu Province Hi-tech Products . The enterprise has 104 employees , including 28 technicians.

Part of our customers :

EVONIK,WACKER,BAYER,ELIOKEM,SOLVAY,BASF,LANXESS,DANISCO,LYNAS,HUBER,RHODIA

Please Provide us The material (to be packed) parameter, so that we can make the proper Flour Packing machine layout for you:

A. Product name ?

B. Diameter of the material (um or mm) ?

C. Form of product ( Granule or powder ) ?

D. Bulk density(ton/m3) ?

E. Flow ability (Gravity self flow capacity)?
